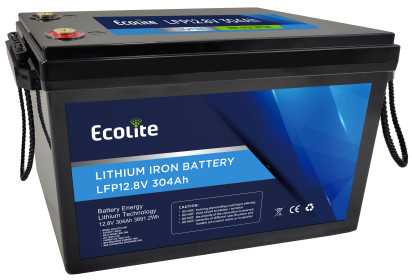

LFP12-300 12.8V 304Ah Lithium Iron Phosphate LiFePO4 Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      12.8V Lithium Iron Phosphate LiFePO4 Battery, 304Ah Lithium Iron Phosphate LiFePO4 Battery, 12.8V LiFePO4 Battery 304Ah


Nominal Voltage:	12.8V	Rated Capacity:	304Ah
Energy:	3891.2Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	<5% Per Month	Max. Modules In Series/Parallel:	4S/1P
Communication:	Bluetooth	Cell Type Chemistry:	LiFePO4 Cell

Nominal Voltage:	12.8V
Rated Capacity:	304Ah
Energy:	3891.2Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	<5% Per Month
Max. Modules In Series/Parallel:	4S/1P
Communication:	Bluetooth
Cell Type Chemistry:	LiFePO4 Cell

Description

LFP12-300 12.8V 304Ah Lithium Iron Phosphate LiFePO4 Battery

LFP12-300 12.8V 304Ah Lithium lron Phosphate (LiFePO4)

Specifications:

Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(WxDxH)	345x190x245mm
Rated Capacity	304Ah	Dimension(WxDxH)	13.58x7.48x9.65
Energy	3891.2Wh	Weight	26kg
Resistance	≤30mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP67
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	250A	Charge Method	CC-CV
Pulse Discharge Current	400A(<10S)	Charge Voltage	14.2-14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	150A
Reconnect Voltage	10.8V	Maximum Charge Current	250A
Short Circuit Protection	300-800uS	BMS Charge Cut-off Valtage	14.8V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		65℃
