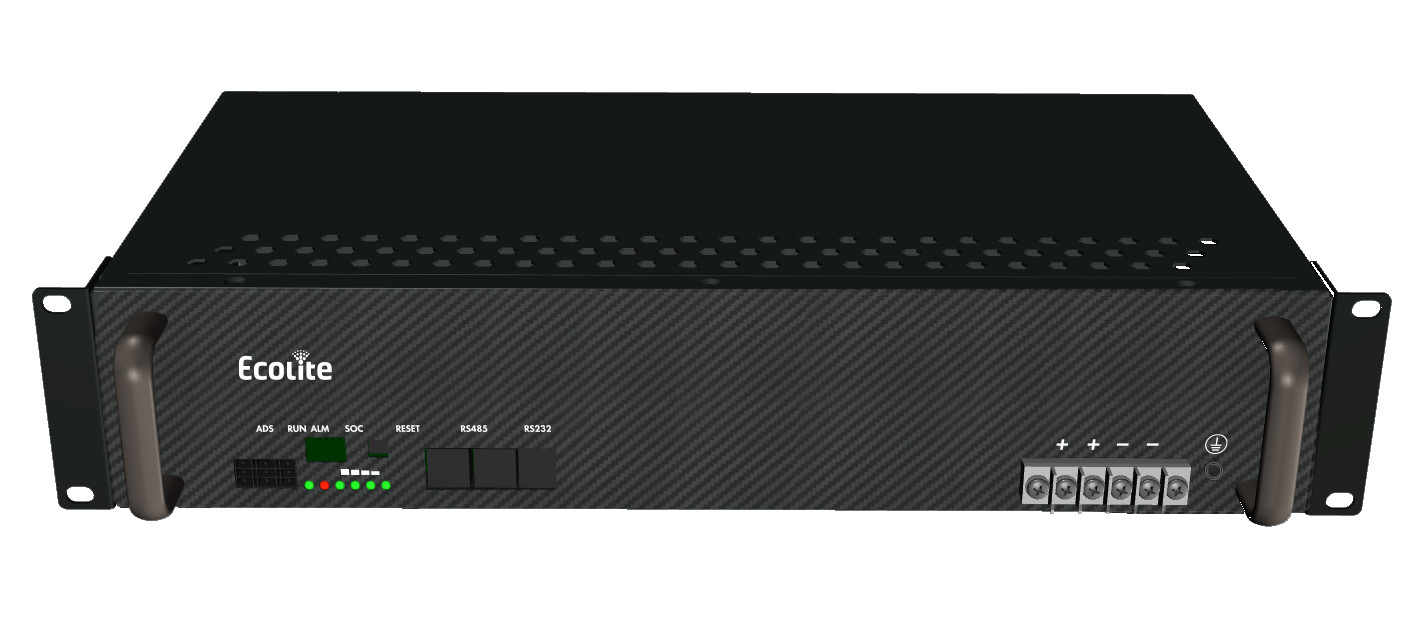

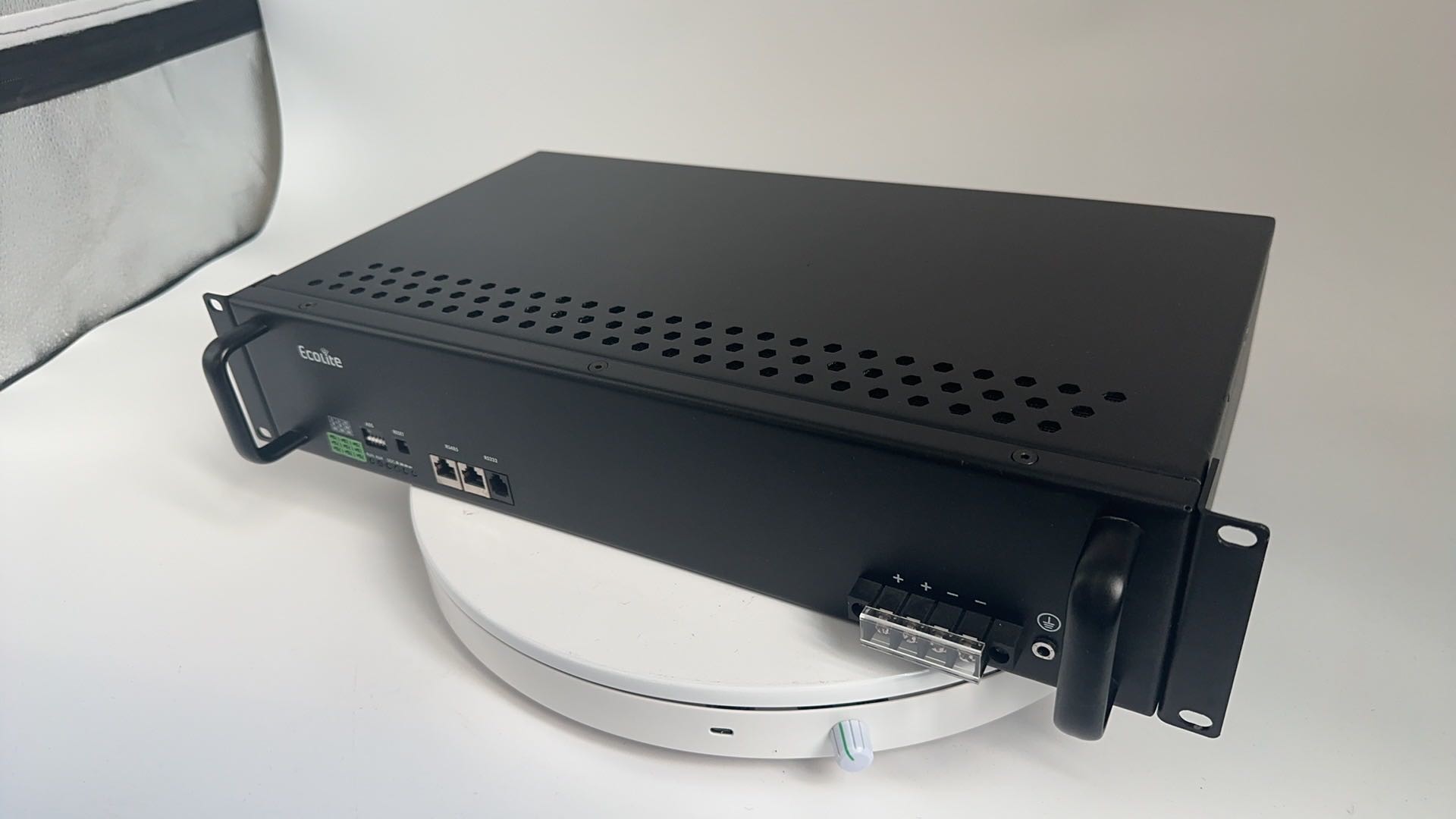

Ecolite LiFePO4 Lithium Battery 48V20Ah

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      48V20Ah LiFePO4 Lithium Battery, Ecolite LiFePO4 Lithium Battery, Ecolite LiFePO4 Battery


Nominal Voltage:	48V	Rated Capacity:	20Ah
Energy:	960Wh	Resistance:	≤30mΩ
Effciency:	≥0.98	Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	<5% Per Month	Max. Modules In Series/Parallel:	15S/3P
Weight:	13kg	Terminal Type:	M4
Battery Housing:	SPCC	Housing Protection:	IP30
Charge Voltage:	53.25~54.75V	Charge Method:	CC-CV

Nominal Voltage:	48V
Rated Capacity:	20Ah
Energy:	960Wh
Resistance:	≤30mΩ
Effciency:	≥0.98
Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	<5% Per Month
Max. Modules In Series/Parallel:	15S/3P
Weight:	13kg
Terminal Type:	M4
Battery Housing:	SPCC
Housing Protection:	IP30
Charge Voltage:	53.25~54.75V
Charge Method:	CC-CV

Description

Ecolite LiFePO4 Lithium Battery 48V20Ah

Ecolite LiFePO4 Lithium Battery 48V20Ah

FEATURES

Lithium lron Phosphate(LiFePO4)

The Safest Lithium Technology.

Integrated Battery Management System(BMS)

Support multiple parallel connections.

PERFORMANCE

Long Cycle Life>2000cycles@80%DOD.

High Density,High Discharge Current,High Tempera-ture Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

Specifications

Electrical Parameters		Mechanical Parameters
Nominal Voltage	48V	Dimension(WxDxH)	442x245x88mm
Rated Capacity	20Ah	Dimension(WxDxH)	17.4 x 9.64x3.464
Energy	960Wh	Weight	13kg
Resistance	≤30mΩ	Terminal Type	M4
Effciency	≥0.98	Battery Housing	SPCC
Cycle Life	>2000cycles @1C,80% DOD	Housing Protection	IP30
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	15S/3P	Communication	RS485/RS232

Discharge Parameters		Charge Parameters
Continuous Discharge Current	20A	Charge Method	CC-CV
Pulse Discharge Current	25A(<10S)	Charge Voltage	53.25-54.75V
Recommended Volt. Disconnect	37.5V	Recommended Float Voltage	50.6~51.75V
BMS Discharge Cut-off Voltage	37.5V	Recommended Charge Current	10A
Reconnect Voltage	40.5V	Maximum Charge Curent	20A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	54.75V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		60℃
