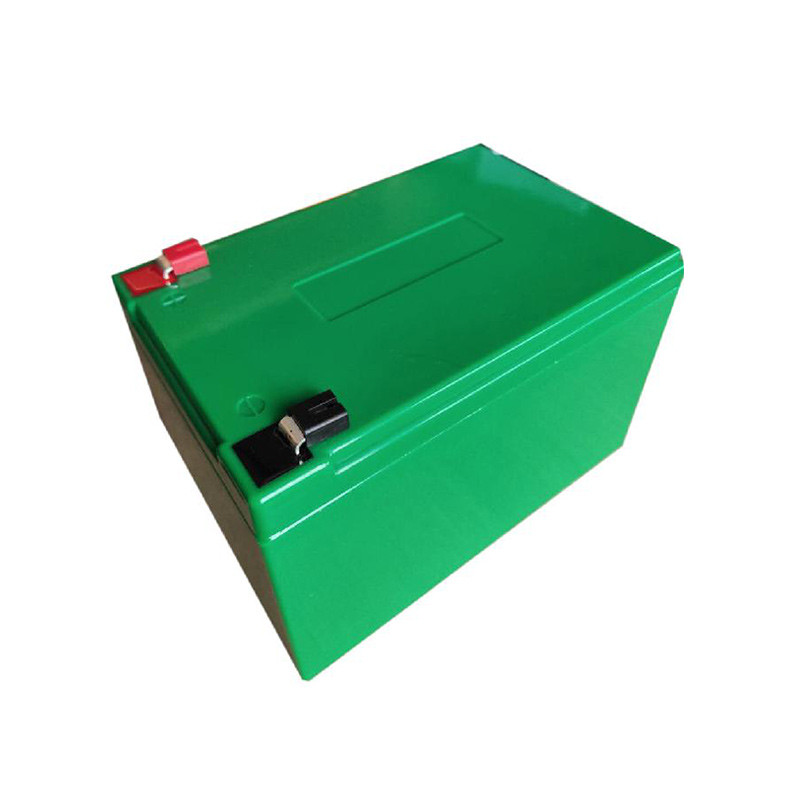

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter

Name: Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12v 9Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12v 9Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Ebike Scooter Li-Ion Battery, 12v 9Ah Li-Ion Battery, Ebike Scooter Li-Ion Battery


Nominal Voltage:	12V	Rated Capacity:	9Ah
Energy:	108Wh	Resistance:	≤65mΩ
Efficiency:	0.99	Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	5S/7P
Weight:	1.65kg	Terminal Type:	T1
Battery Housing:	ABS	Housing Protection:	IP56
Cell Type-Chemistry:	LTO Cell	SOC Display(Optional):	/

Nominal Voltage:	12V
Rated Capacity:	9Ah
Energy:	108Wh
Resistance:	≤65mΩ
Efficiency:	0.99
Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	5S/7P
Weight:	1.65kg
Terminal Type:	T1
Battery Housing:	ABS
Housing Protection:	IP56
Cell Type-Chemistry:	LTO Cell
SOC Display(Optional):	/

Description

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter 0

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter 1

Electrical Parameters
Nominal Voltage	12V
Rated Capacity	9Ah
Energy	108Wh
Resistance	≤65mΩ
Efficiency	0.99
Cycle Life	>2000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	5S/7P

Mechanical Parameters
Dimension(L×W×H)	151×99×100mm
Dimension(L×W×H)	5.94×3.9×3.93in
Weight	1.65kg
Terminal Type	T1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LTO Cell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	45A
Pulse Discharge Current	80A(<1S)
Recommended Volt. Disconnect	8.5V
BMS Discharge Cut-off Voltage	8.5V
Reconnect Voltage	9V
Short Circuit Protection	250-500us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.75V
Recommended Charge Current	4.5A
Maximum Charge Current	27A
BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-40 to 75 ℃
Charge Temperature	-40 to 75 ℃
Storage Temperature	-40 to 75 ℃
BMS High Temperature Cut-off	78 ℃

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter 2

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter 5

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See Ecolite User's Manual for Proper Operation.

Long Cycle Life Time 12v 9Ah Li-Ion Battery Ebike Scooter 7

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
