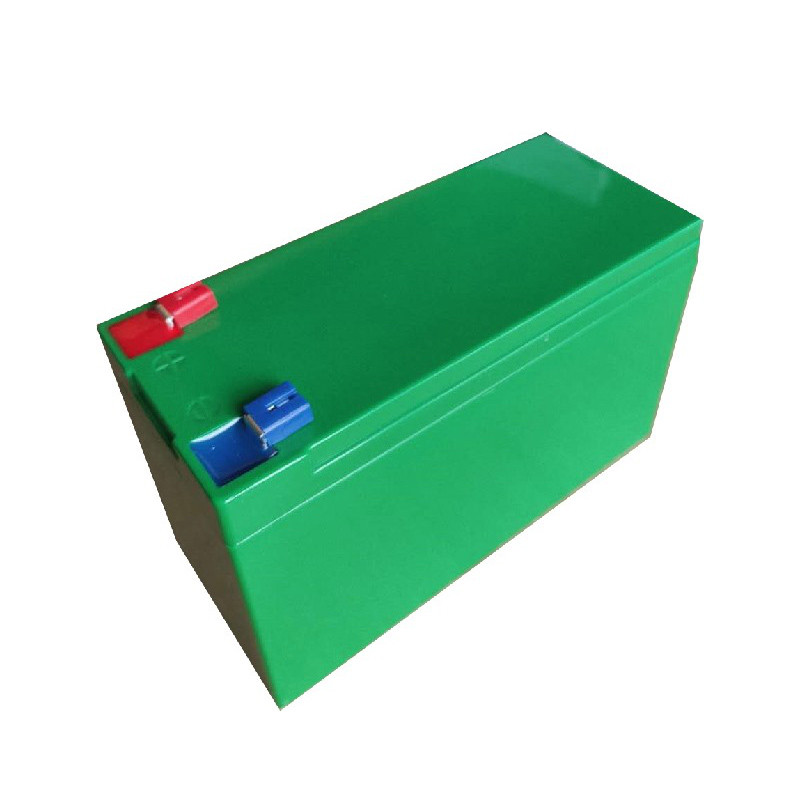

Name: 12V 9Ah Rechargeable Lithium Iron Phosphate Motorcycle Battery Pack
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12v9Ah
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Materials: Li-ion Rechargeable Battery

Nominal Voltage: 12.8V

Internal Resistance: ≤30mΩ

Rated Capacity: 9Ah

Housing Protection: IP56

Battery Housing: ABS

Weight: 1.08KG

Type: LiFePO 4 Lithium Battery

Energy: 155.2Wh

Max. Modules In Series/Parallel: 4S/5P

Cell Type-Chemistry: LFPCell

Highlight:

Rechargeable Lithium Iron Phosphate Motorcycle Battery

12V Lithium Iron Phosphate Motorcycle Battery

12V 9Ah Lithium Battery

Basic Infomation

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12v9Ah

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Gallery

12V 9Ah Rechargeable Lithium Iron Phosphate Motorcycle Battery Pack

Product Description

Motorcycle Lithium Iron Phosphate Battery Pack 12v9Ah

12V 9Ah Rechargeable Lithium Iron Phosphate Motorcycle Battery Pack 0

12V 9Ah Rechargeable Lithium Iron Phosphate Motorcycle Battery Pack 1

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	9Ah
Energy	155.2Wh
Resistance	≤30mΩ
Efficiency	0.99
Cycle Life	>4000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/5P

Mechanical Parameters
Dimension(L×W×H)	151×65×94mm
Dimension(L×W×H)	5.94×2.56×3.7in
Weight	1.08kg
Terminal Type	T1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LFPCell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	10A
Pulse Discharge Current	40A (<1S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	250-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.8V
Recommended Charge Current	10A
Maximum Charge Current	10A
BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-20 to 60 ℃ (-4 to 14)
Charge Temperature	0 to 60 ℃ (32 to 140 ℉ )
Storage Temperature	-40 to 70 ℃ (-40 to 158 ℉ )
BMS High Temperature Cut-off	78 ℃ (172.4 ℉ )

12V 9Ah Rechargeable Lithium Iron Phosphate Motorcycle Battery Pack 2

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See Ecolite User's Manual for Proper Operation.

12V 9Ah Rechargeable Lithium Iron Phosphate Motorcycle Battery Pack 4

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
