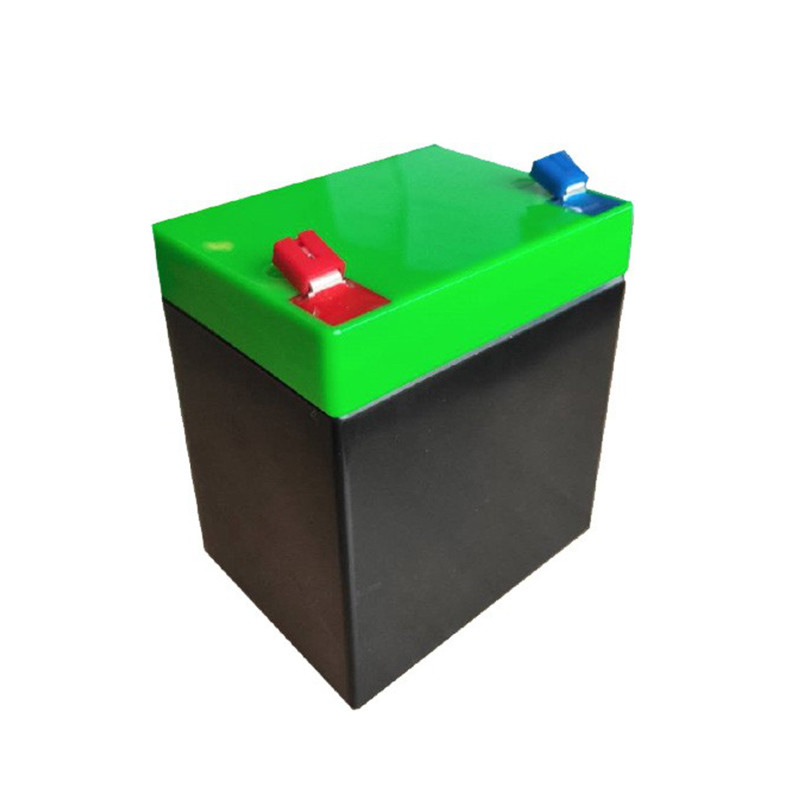

Lithium Lifepo4 Battery 12v 4.8Ah For Ups System

Name: Lithium Lifepo4 Battery 12v 4.8Ah For Ups System
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12v 4.8Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 12v 4.8Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Ups System Lithium Lifepo4 Battery, 4.8Ah Lithium Lifepo4 Battery, 12v 4.8Ah Lithium Lifepo4 Battery


Nominal Voltage:	12.8V	Rated Capacity:	4.8Ah
Energy:	61.4Wh	Resistance:	≤30mΩ
Efficiency:	0 .99	Cycle Life:	>4000cycles @1C,80% DOD
Max. Modules In Series/Parallel:	4S/3P

Nominal Voltage:	12.8V
Rated Capacity:	4.8Ah
Energy:	61.4Wh
Resistance:	≤30mΩ
Efficiency:	0 .99
Cycle Life:	>4000cycles @1C,80% DOD
Max. Modules In Series/Parallel:	4S/3P

Description

Lithium Lifepo4 Battery 12v 4.8Ah For Ups System

Lithium Lifepo4 Battery 12v 4.8Ah For Ups System

Lifepo4 battery, Lithium battery 12v, Lithium battery

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	4.8Ah
Energy	61.4Wh
Resistance	≤30mΩ
Efficiency	0.99
Cycle Life	>4000cycles @1C,80% DOD
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/3P

Mechanical Parameters
Dimension(L×W×H)	90x70x101mm
Dimension(L×W×H)	3.54 x 2.76x 3.98"
Weight	0.70kg
Terminal Type	T1
Battery Housing	ABS
Housing Protection	IP56
Cell Type-Chemistry	LFPCell
SOC Display(Optional)	/

Discharge Parameters
Continuous Discharge Current	10A
Pulse Discharge Current	40A (<1S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	250-800us

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.8V
Recommended Charge Current	10A
Maximum Charge Current	10A
BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature	-20 to 60 ℃ (-4 to 14)
Charge Temperature	0 to 60 ℃ (32 to 140 ℉ )
Storage Temperature	-40 to 70 ℃ (-40 to 158 ℉ )
BMS High Temperature Cut-off	78 ℃ (172.4 ℉ )

NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
See Ecolite User's Manual for Proper Operation.

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
