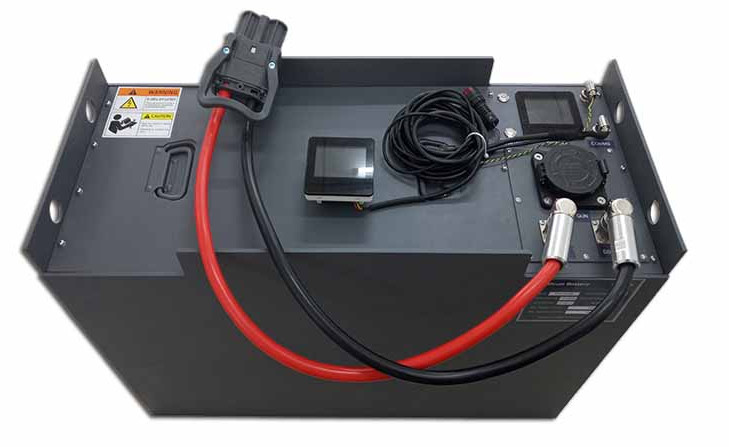

24v Lifepo4 Battery 310Ah Forklift

Product Details

Place of Origin: China

Brand Name: Ecolite

Certification: UN38.3 MSDS CE

Model Number: 24v 310Ah

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price
Contact Now
Specifications
Highlight:

Forklift Lifepo4 Battery

,

310Ah Lifepo4 Battery

,

24v Lifepo4 Battery

Cell Part Number:
IFP45173184-155AH
Cell Type:
LFP Power Battery
Outlook:
Square Aluminum Shell
Rated Capacity:
155Ah@1C@25℃
Nominal Voltage:
3.2V
Cell Weight:
3100±100g
Charge Retention(%):
≥90%(storage At Normal Atmospheric Temperature 28D,100%SOC)
Cell Energy Density:
160Wh/kg
Cycle Life:
Below 25±5℃,1C Charge & Discharge Cycle,80%DOD≥4000 Times
Cell Part Number:
IFP45173184-155AH
Cell Type:
LFP Power Battery
Outlook:
Square Aluminum Shell
Rated Capacity:
155Ah@1C@25℃
Nominal Voltage:
3.2V
Cell Weight:
3100±100g
Charge Retention(%):
≥90%(storage At Normal Atmospheric Temperature 28D,100%SOC)
Cell Energy Density:
160Wh/kg
Cycle Life:
Below 25±5℃,1C Charge & Discharge Cycle,80%DOD≥4000 Times
Description
24v Lifepo4 Battery 310Ah Forklift



24v Lifepo4 Battery 310Ah Forklift





24v Lifepo4 Battery 310Ah Forklift 0

Lithium Iron Phosphate Battery Pack Data



No item data
1 Cell part number IFP45173184-155AH
2 Cell type LFP power battery
3 outlook Square aluminum shell
4 Rated capacity 155Ah@1C@25℃
5 Nominal voltage 3.2V
6 Cell weight 3100±100g
7 charge retention(%) ≥90%(storage at normal atmospheric temperature 28D,100%SOC)
8 Cell energy density 160Wh/kg
9 Discharge & charge performance 1C discharge/1C charge@25℃
10 Peak charge current 1C(25℃,50%SOC,≤30s)
11 Peak discharge current 2C(25℃,40%SOC,≤30s)
12 internal resistance 0.3~0.65mΩ
13 Cell static voltage difference ≤0.03V
14 Cell capacity ≥155Ah
15 Charge work temperature -10℃~55℃
16 Discharge work temperature -30℃~55℃
17 Optimum storage temperature 10~35℃
18 Charge voltage(CC-CV charge mode) 3.65V
19 Discharge cut-off voltage 2.0V
20 Cycle life Below 25±5℃,1C charge & discharge cycle,80%DOD≥4000 times





NO Name data
1 Connect 2P4S
2 Rated capacity 310Ah
3 rated storage capacity 3.98Kwh
4 Rated voltage 12.8V
5 Work voltage range 10V~14.6V(cell 2.5~3.65V)
6 weight 25±0.5Kg
7 Continuous discharge current 1C@25℃
8 Peak discharge current 1C(25℃,5~80%SOC,≤30s)
9 Continuous charge current 1C(25℃,5~80%SOC,≤10s)
10 Peak feed current ≤0.1mΩ
11 Pack Internal resistance difference ≤5% (25℃,100%SOC)
12 Self-discharge rate/month -5℃~55℃(it needs to add heating function if charge below 0℃)
13 Charge work temperature range -20℃~+55℃
14 Discharge work temperature range 10~35℃
15 Optimum storage temperature 98%(25±5℃,0.33C)
16 Charge &discharge efficiency/η Below 25±5℃,0.33C charge &discharge cycle,80%DOD≥3500 times
17 Life cycle 5%~95%RH
18 Advise usage humidity Total positive & negative of pack insulation resistance to end-plate≥2GΩ(1000V)
19 Insulation resistance Leakage current<500uA(500V)
20 Withstand voltage value Cell sampling normal

Hefei Hongye Lithium Energy Science &Technology Co., Ltd., is located in beautiful Boyan Science &Technology Park of Hefei, which has convenient transportation and well-equipped facilities. Lithium Energy is specialized in R&D,production,sales and technology support of lithium battery. Meanwhile, it has its own intellectual property, which makes it possible to provide different service with different requirement, that’s why Lithium Energy gets good reputation.
Lithium Energy covers an area of 14000 square meters, and the current production capacity is 80 thousand per day. The factory covers with full-automatic equipment, with human assistance. We mainly produce LTO and LFP at present, widely applied in energy storage, communication base station, car, etc.
Lithium Energy carries on spirit of “preciseness factualism efficiency innovation harmony”, and keeps principle of “be practical and realistic” “customer orientation” with a professional team.
Lithium Energy will focus on creating its own brand and contributing to a greener home.

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
