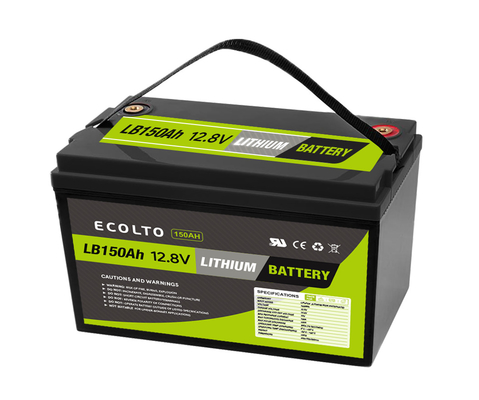

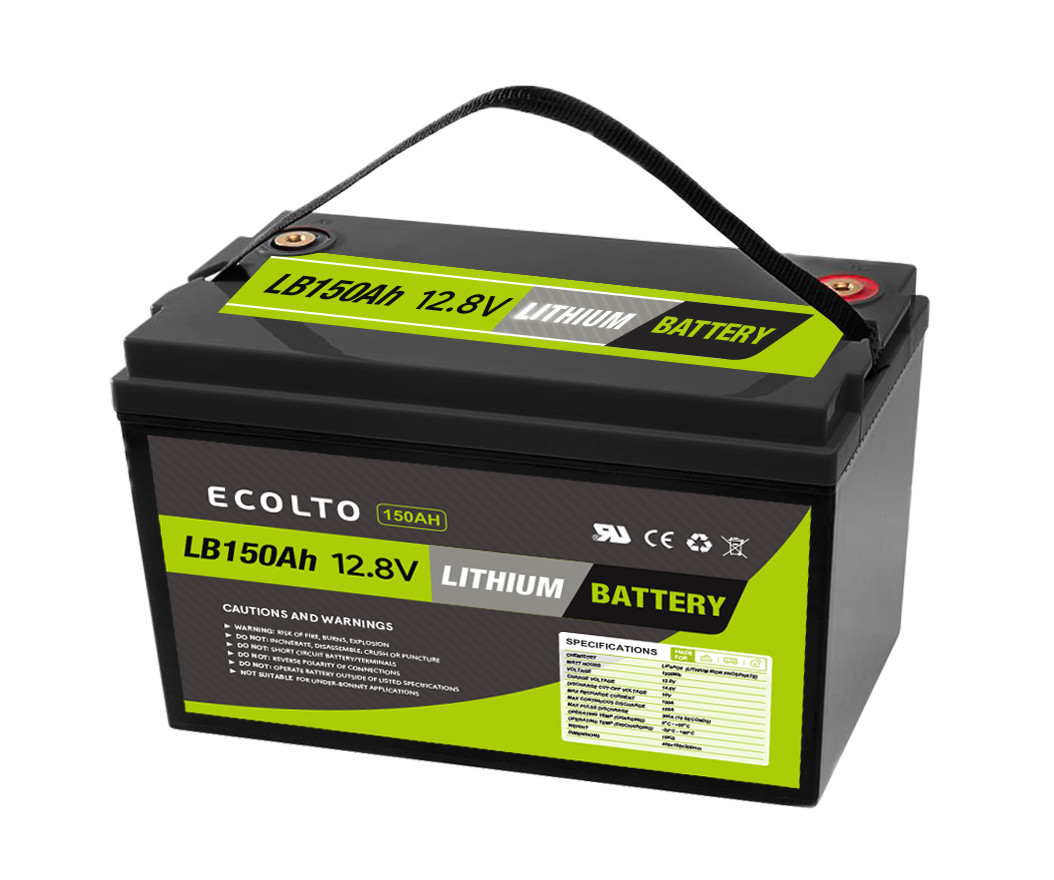

12V 150Ah Deep Cycle LiFePO4 Lithium Battery Integrated BMS Portable Power Supply

Name: 12V 150Ah Deep Cycle LiFePO4 Lithium Battery Integrated BMS Portable Power Supply
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LB12.8V150Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ECOLTO/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: LB12.8V150Ah

Payment & Shipping Terms

Minimum Order Quantity: 100Units

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Supply Ability: 2000Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Deep Cycle LiFePO4 Lithium Battery, Portable LiFePO4 Lithium Battery, 12V 150Ah Lithium Battery


Model:	12V 150AH	Material System:	LiFePO4 Cell
Working Temperature:	-20°C ~ 60°C	Discharging Current:	150A
Composed Type:	In Parallels And Series	Warranty:	3 Years
Iner Resistence:	<65mΩ	Casing:	ABS
Dimensions:	446x198x208mm	Weight:	15kg
Cyle Life:	4000 Times	BMS:	4S Smart BMS

Model:	12V 150AH
Material System:	LiFePO4 Cell
Working Temperature:	-20°C ~ 60°C
Discharging Current:	150A
Composed Type:	In Parallels And Series
Warranty:	3 Years
Iner Resistence:	<65mΩ
Casing:	ABS
Dimensions:	446x198x208mm
Weight:	15kg
Cyle Life:	4000 Times
BMS:	4S Smart BMS

Description

12V 150Ah Deep Cycle LiFePO4 Lithium Battery Integrated BMS Portable Power Supply

LiFePO4 12V 150Ah Lithium Battery Integrated BMS

Portable Power Supply Deep Cycle

FEATURES

Lithium Iron Phosphate (LiFePO4):the Safest Lithium Technology.

Integrated Battery Management System(BMS).

PERFORMANCE

Long Cycle Life ＞ 4000cycles@80%DOD,IC/ID 25℃

High Density,High Discharge Current, High Temperature Range.
Low Weight, Free Maintenance.Fast Charging.Environment Friendly.

Cell Performance Charateristics

12V 150Ah Deep Cycle LiFePO4 Lithium Battery Integrated BMS Portable Power Supply 0

Specifications

Key Parameters Item	12.8V 150Ah
Nominal Voltage	12.8V
Rated Capacity	150Ah
Energy	1920Wh
Resistance	≤65mΩ
Efficiency	0.99
Cycle Life	>4000 cycles @80% DOD, 1C/1D 25℃
Self Discharge	2% per Month
Max. Modules in Series/Parallel	4S/1P
Dimension(L×W×H)	446x198x208mm
Weight	15kg
Terminal Type	M8
Battery Housing	ABS
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
SOC Display(Optional)	/
Continuous Discharge Current	150A
Pulse Discharge Current	300A (<3S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.8V
Recommended Charge Current	50A
Maximum Charge Current	150A
BMS Charge Cut-off Voltage	15V
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 to 60℃
Storage Temperature	-20 to 60 ℃
BMS High Temperature Cut-off	65 ℃
