Home /Products/LiFePO4 Lithium Battery/12V 200Ah LiFePO4 Lithium Battery Lightweight High Temp Range Free Maintenance

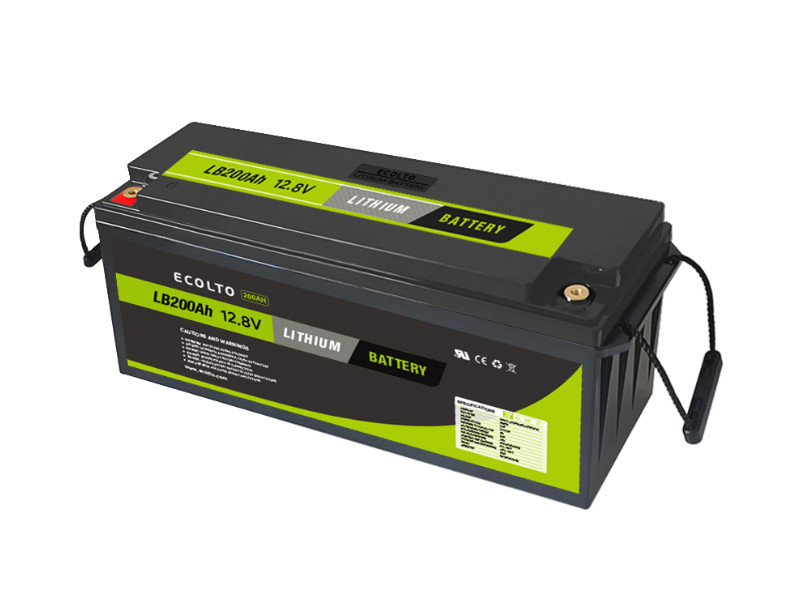

12V 200Ah LiFePO4 Lithium Battery Lightweight High Temp Range Free Maintenance

100Units
MOQ
Inquiry
Price
12V 200Ah LiFePO4 Lithium Battery Lightweight High Temp Range Free Maintenance
Features Gallery Product Description Request A Quote
Features
Specifications
Model: 12V 200AH
Material System: LiFePO4 Cell
Working Temperature: -20°C ~ 60°C
Discharging Current: 150A
Composed Type: In Parallels And Series
Warranty: 3 Years
Iner Resistence: <65mΩ
Casing: ABS
Dimensions: 507x201.5x215mm
Weight: 22kg
Cyle Life: 4000 Times
BMS: 4S Smart BMS
Highlight:

LiFePO4 Lithium Battery Lightweight

,

12V 200Ah LiFePO4 Lithium Battery

,

12V 200Ah LiFePO4 Battery
Basic Infomation
Place of Origin: China
Brand Name: ECOLTO/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: LB12.8V200Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Supply Ability: 2000Units per month
Product Description

                                                 LiFePO4 12V 200Ah Lithium Battery                                                       Low Weight High Temperature Range Free Maintenance





FEATURES



Lithium Iron Phosphate (LiFePO4):the Safest Lithium Technology.

Integrated Battery Management System(BMS).



PERFORMANCE



Long Cycle Life ＞ 4000cycles@80%DOD,IC/ID 25℃

High Density,High Discharge Current, High Temperature Range.
Low Weight, Free Maintenance.Fast Charging.Environment Friendly.



Cell Performance Charateristics

12V 200Ah LiFePO4 Lithium Battery Lightweight High Temp Range Free Maintenance 0



Specifications



Key Parameters Item 12.8V 200Ah
Nominal Voltage 12.8V
Rated Capacity 200Ah
Energy 2560Wh
Resistance ≤65mΩ
Efficiency 0.99
Cycle Life >4000 cycles @80% DOD,
1C/1D 25℃
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/2P
Dimension(L×W×H) 507x201.5x215mm
Weight 22kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
SOC Display(Optional) /
Continuous Discharge Current 150A
Pulse Discharge Current 300A (<30S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 8.8V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us
Charge Method CC-CV
Charge Voltage 14.4~14.8V
Recommended Float Voltage 13.8V
Recommended Charge Current 50A
Maximum Charge Current 150A
BMS Charge Cut-off Voltage 15V
Discharge Temperature -20 to 60 ℃
Charge Temperature 0 to 60℃
Storage Temperature -20 to 60 ℃
BMS High Temperature Cut-off 65 ℃



Product and Performance Data

12V 200Ah LiFePO4 Lithium Battery Lightweight High Temp Range Free Maintenance 1



Application

12V 200Ah LiFePO4 Lithium Battery Lightweight High Temp Range Free Maintenance 2
