38.4V 100Ah LiFePO4 Lithium Battery With Bluetooth Communication

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      38.4V LiFePO4 Lithium Battery, LiFePO4 Lithium Battery With Bluetooth, 100Ah Lifepo4 Battery With Bluetooth


Nominal Voltage:	38.4V	Rated Capacity:	100Ah
Energy:	3840Wh	Resistance:	≤60mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	<5% Per Month	Cell In Series/Parallel:	12S/1P
Communication:	Bluetooth	Charge Method:	CC-CV

Nominal Voltage:	38.4V
Rated Capacity:	100Ah
Energy:	3840Wh
Resistance:	≤60mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	<5% Per Month
Cell In Series/Parallel:	12S/1P
Communication:	Bluetooth
Charge Method:	CC-CV

Description

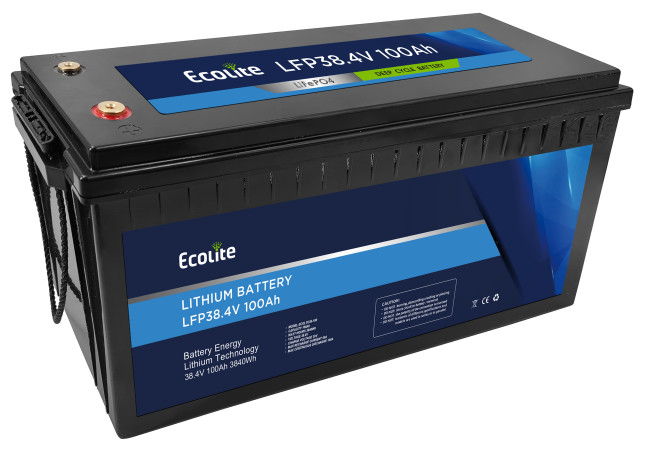

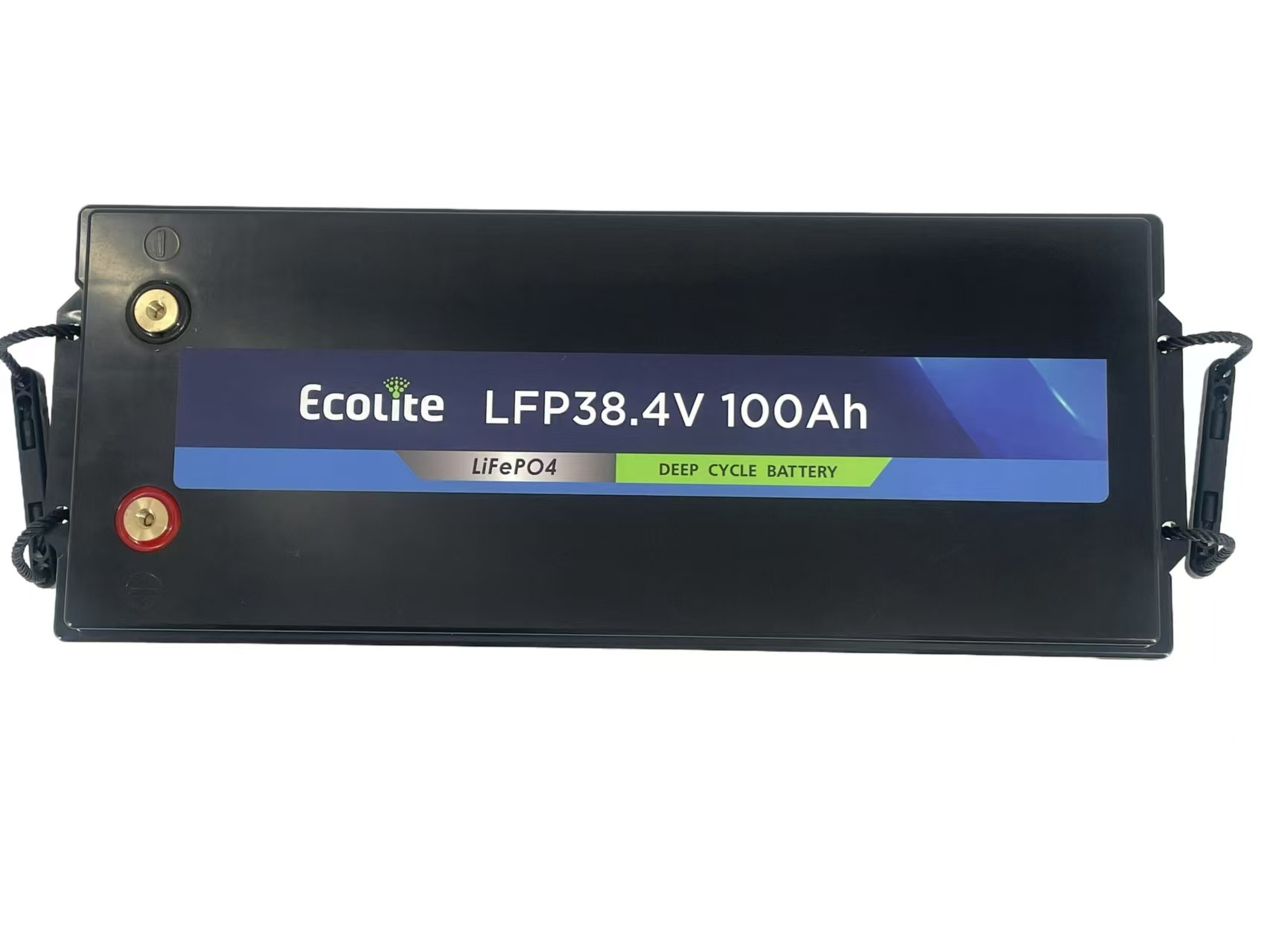

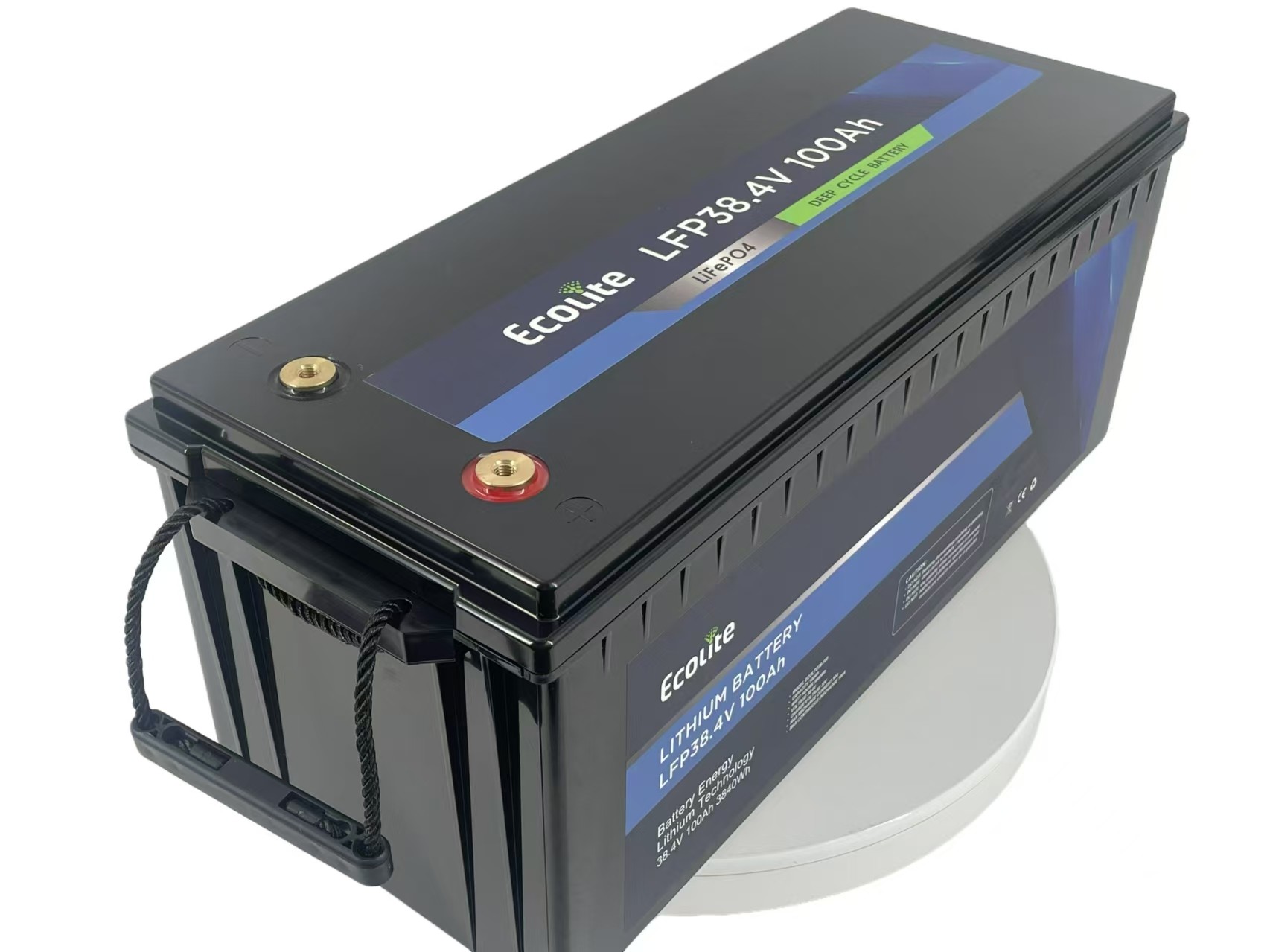

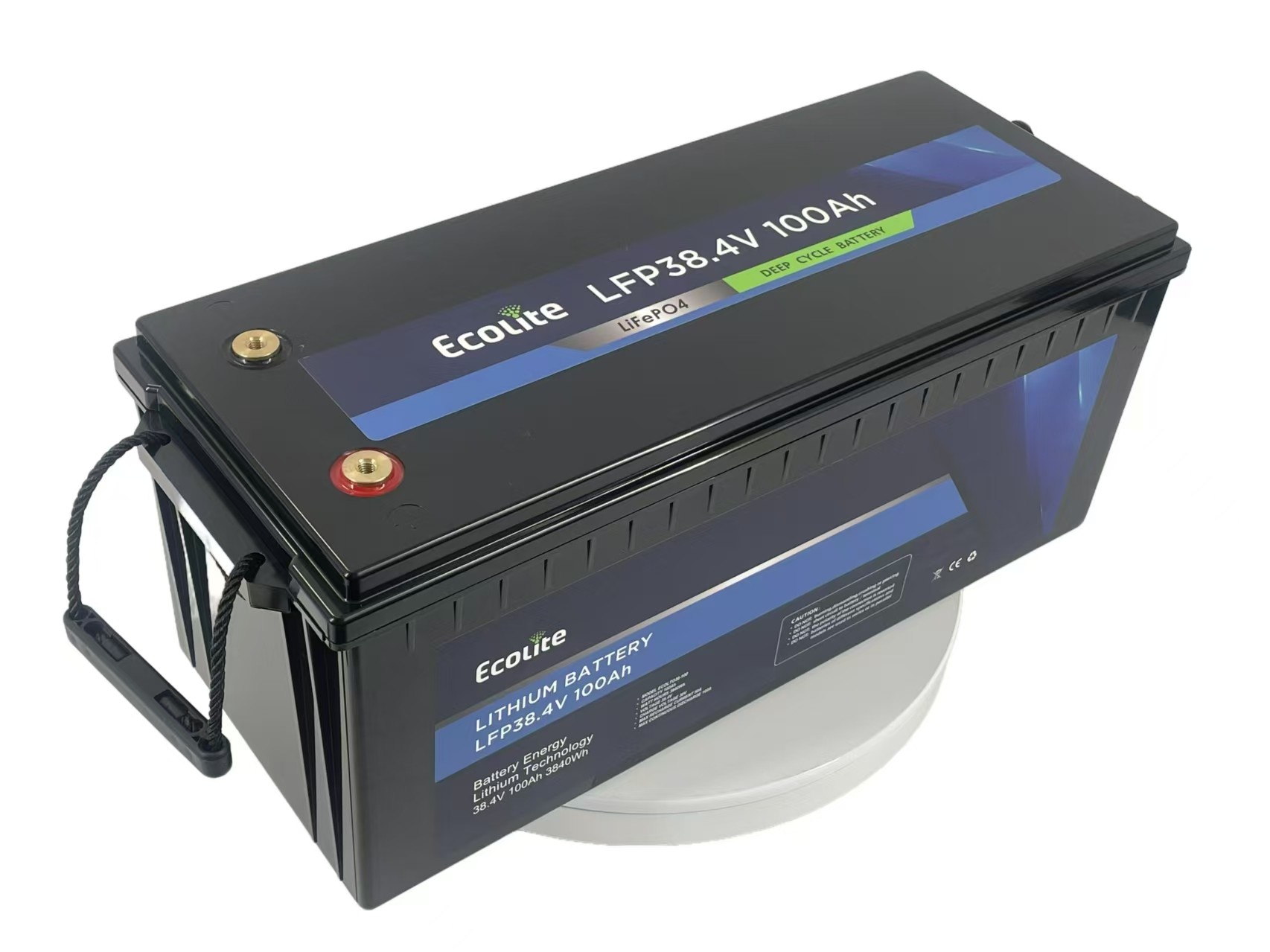

38.4V 100Ah LiFePO4 Lithium Battery With Bluetooth Communication

Ecolite LFP36-100 38.4V 100Ah Bluetooth Battery with Bluetooth Communication Technology

Specifications

Electrical Parameters		Mechanical Parameters
Nominal Voltage	38.4V	Dimension(WxDxH)	532x207x215mm
Rated Capacity	100Ah	Dimension(WxDxH)	20.94x 8.15x 8.46
Energy	3840Wh	Weight	27kg
Resistance	≤60mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP67
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	12S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A (<1S)	Charge Voltage	42.6~43.8V
Recommended Volt. Disconnect	30V	Recommended Float Voltage	39.9~40.2V@100%
BMS Discharge Cut-off Voltage	30V	Recommended Charge Current	50A
Reconnect Voltage	32.4V	Maximum Charge Current	100A
Short Circuit Protection	300-800uS	BMS Charge Cut-off Voltage	44.4V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		65℃
