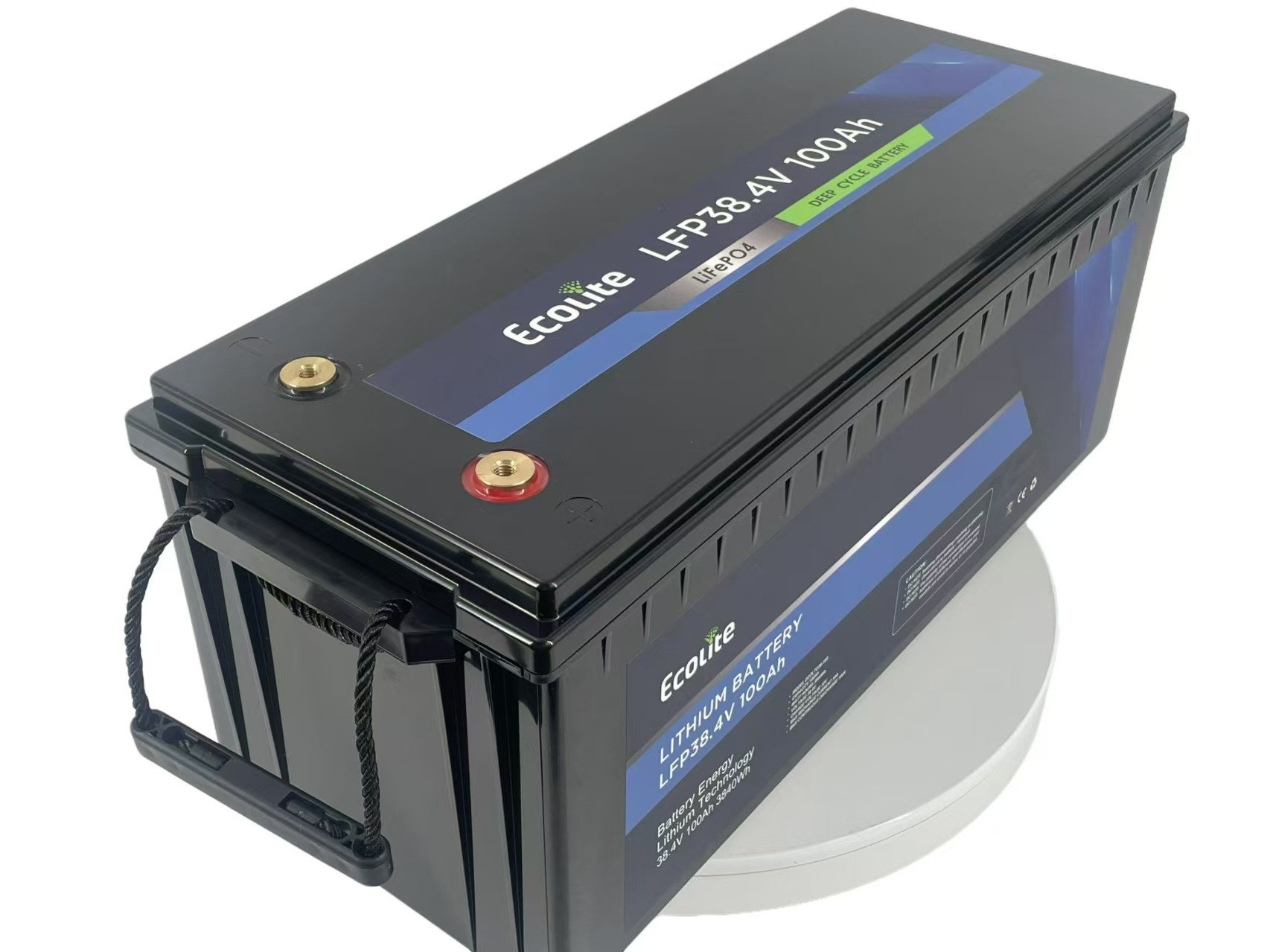

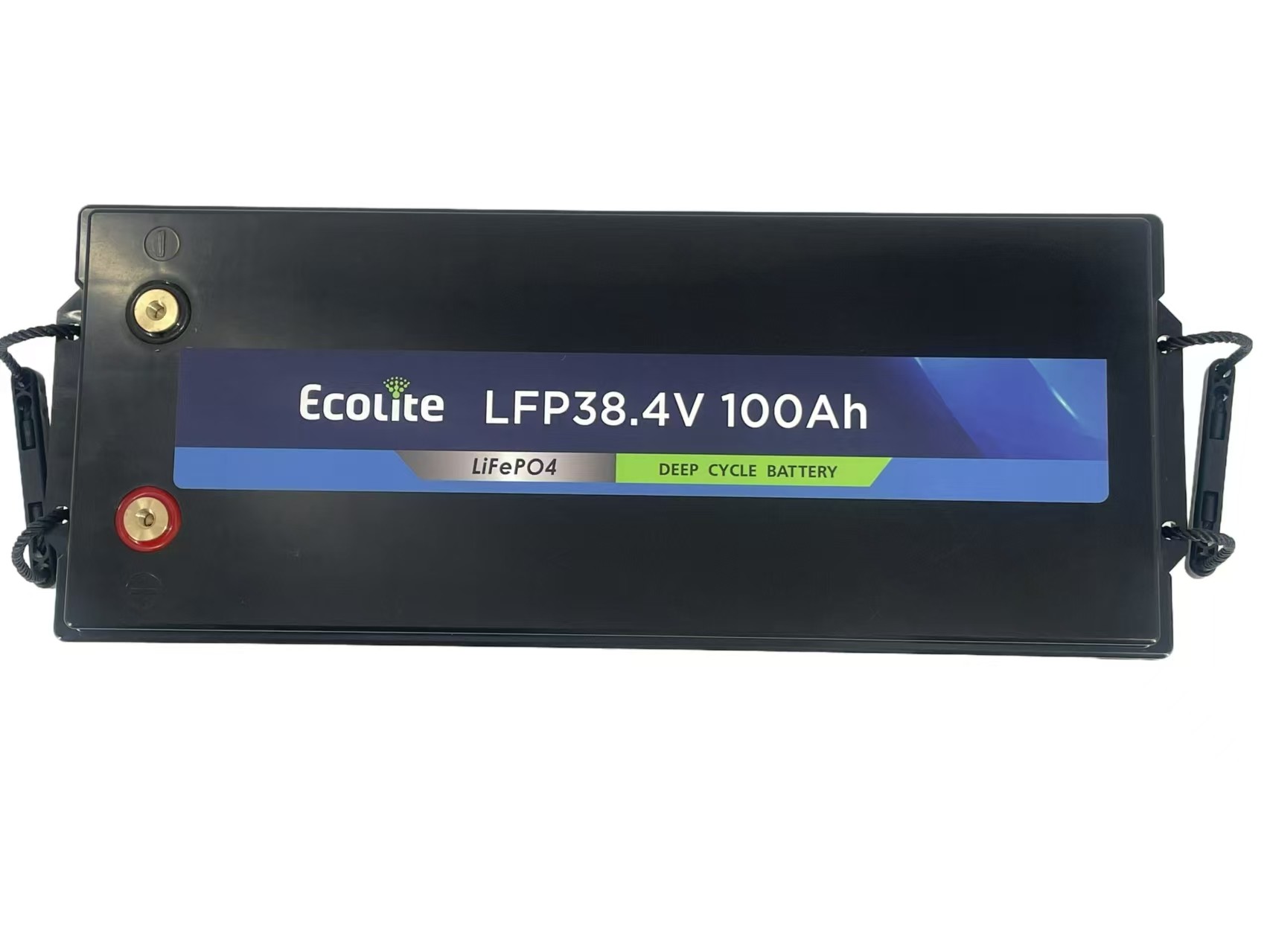

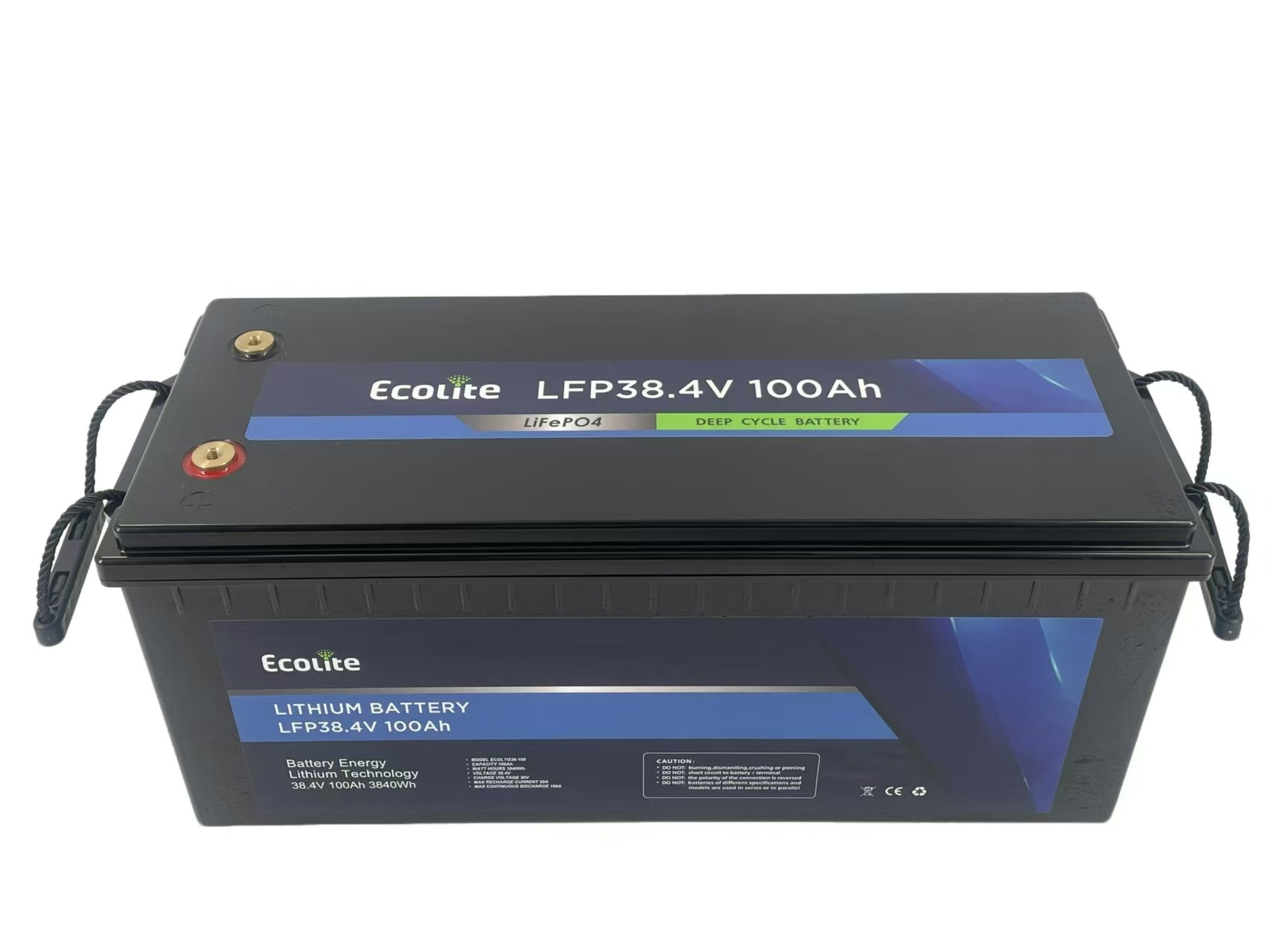

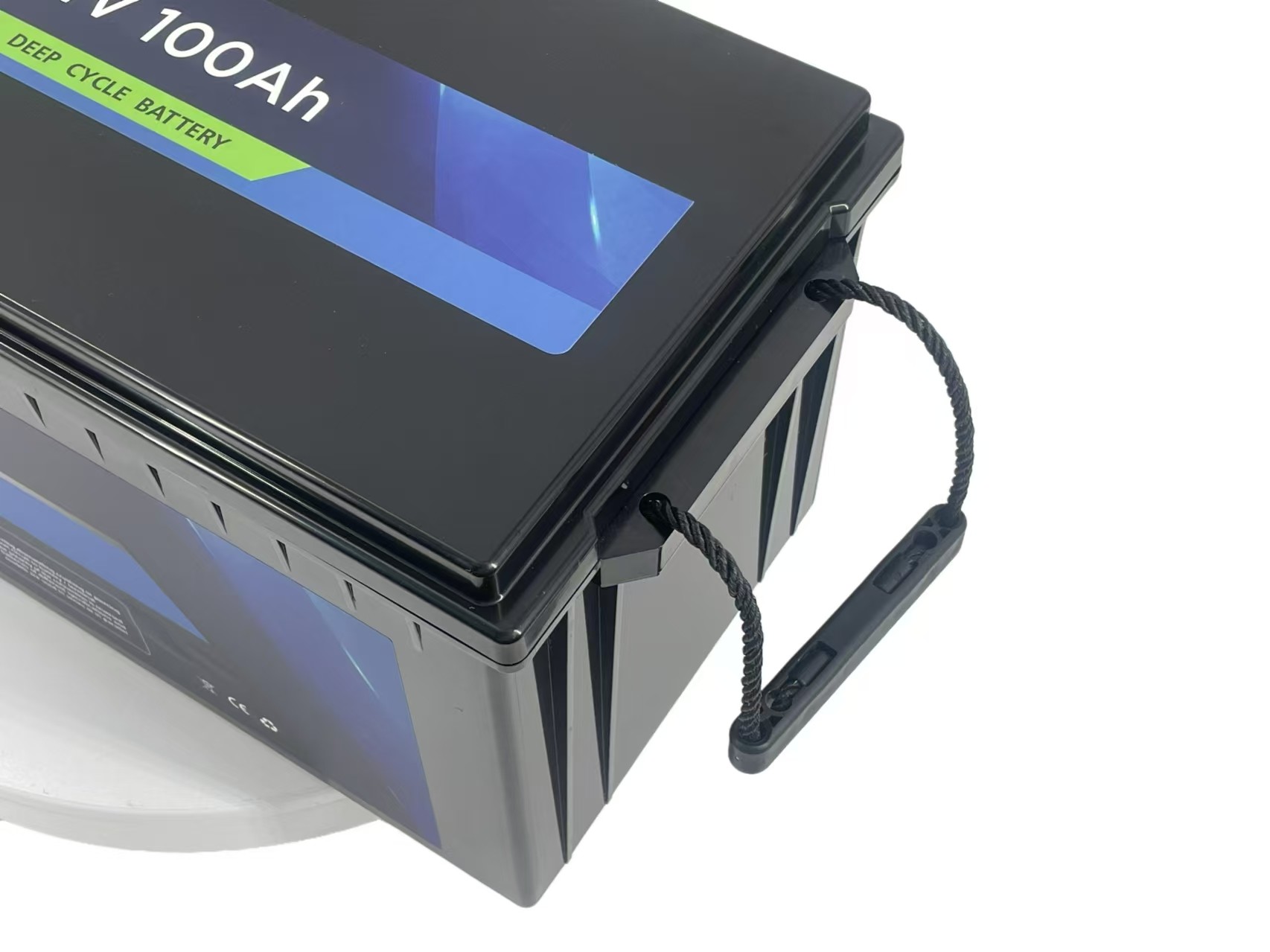

38.4V 100Ah Bluetooth Lithium Battery For Remote Monitoring And Control

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              38.4V Bluetooth Lithium Battery, 100Ah Bluetooth Lithium Battery


Weight:	27kg	Terminal Type:	M8
Battery Housing:	ABS	Housing Protection:	IP67
Cell Type-Chemistry:	LiFePO4 Cell	Communication:	Bluetooth
Continuous Discharge Current:	100A	Pulse Discharge Current:	200A (<1S)
Recommended Volt. Disconnect:	30V	BMS Discharge Cut-off Voltage:	30V
Reconnect Voltage:	32.4V	Short Circuit Protection:	300-800uS

Weight:	27kg
Terminal Type:	M8
Battery Housing:	ABS
Housing Protection:	IP67
Cell Type-Chemistry:	LiFePO4 Cell
Communication:	Bluetooth
Continuous Discharge Current:	100A
Pulse Discharge Current:	200A (<1S)
Recommended Volt. Disconnect:	30V
BMS Discharge Cut-off Voltage:	30V
Reconnect Voltage:	32.4V
Short Circuit Protection:	300-800uS

Description

38.4V 100Ah Bluetooth Lithium Battery For Remote Monitoring And Control

Ecolite LFP36-100 38.4V 100Ah Bluetooth Battery for Remote Monitoring and Control

Specifications

Electrical Parameters
Nominal Voltage	38.4V
Rated Capacity	100Ah
Energy	3840Wh
Resistance	≤60mΩ
Efficiency	≥0.98
Cycle Life	>3000cycles @1C,80% DOD
Self Discharge	<5% per Month
Cell in Series/Parallel	12S/1P

Mechanical Parameters
Dimension(WxDxH)	532x207x215mm
Dimension(WxDxH)	20.94x 8.15x 8.46
Weight	27kg
Terminal Type	M8
Battery Housing	ABS
Housing Protection	IP67
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth

Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	200A (<1S)
Recommended Volt. Disconnect	30V
BMS Discharge Cut-off Voltage	30V
Reconnect Voltage	32.4V
Short Circuit Protection	300-800uS

Charge Parameters
Charge Method	CC-CV
Charge Voltage	42.6~43.8V
Recommended Float Voltage	39.9~40.2V@100%
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	44.4V

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
