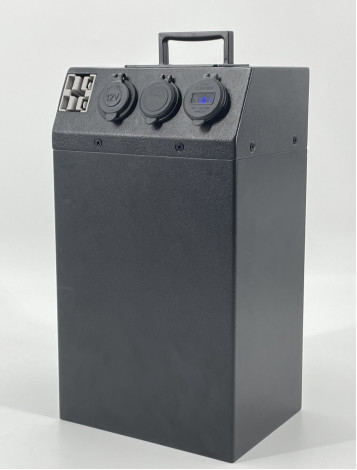

LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 100 system

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          80A LiFePO4 Portable Energy Storage, 12.8v LiFePO4 Portable Energy Storage


Nominal Voltage:	12.8V	Rated Capacity:	80Ah
Energy:	1024Wh	Resistance:	≤60mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	＜ 5% Per Month	Cell In Series/Parallel:	4S/1P
Weight:	11.5kg	Terminal Type:	50A Anderson
Battery Housing:	SPCC	Recommended Float Voltage:	13.3~13.4V@100%
Charge Method:	CC-CV	Charge Voltage:	14.2~14.6V
Recommended Charge Current:	40A

Nominal Voltage:	12.8V
Rated Capacity:	80Ah
Energy:	1024Wh
Resistance:	≤60mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C,80% DOD
Self Discharge:	＜ 5% Per Month
Cell In Series/Parallel:	4S/1P
Weight:	11.5kg
Terminal Type:	50A Anderson
Battery Housing:	SPCC
Recommended Float Voltage:	13.3~13.4V@100%
Charge Method:	CC-CV
Charge Voltage:	14.2~14.6V
Recommended Charge Current:	40A

Description

LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A

LiFePO4 Lithium Battery 12.8v 80A

mini battery cover 12.8V80Ah
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(L×W×H)	181x136x320mm
Rated Capacity	80Ah		7.12x 5.35x 12.60"
Energy	1024Wh	Weight	11.5kg
Resistance	≤60mΩ	Terminal Type	50A Anderson
Efficiency	≥0.98	Battery Housing	SPCC
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP32
Self Discharge	＜ 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	80A	Charge Method	CC-CV
Pulse Discharge Current	120A (<10S)	Charge Voltage	14.2~14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	40A
Reconnect Voltage	10.8V	Maximum Charge Current	80A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20 ℃ to 60 ℃
Charge Temperature	0 ℃to 55 ℃℃
Storage Temperature	-20 ℃ to 60 ℃
BMS High Temperature Cut-off	65℃
