Home /Products/LiFePO4 Lithium Battery/LiFePO4 Lithium Battery 25.6V 200Ah

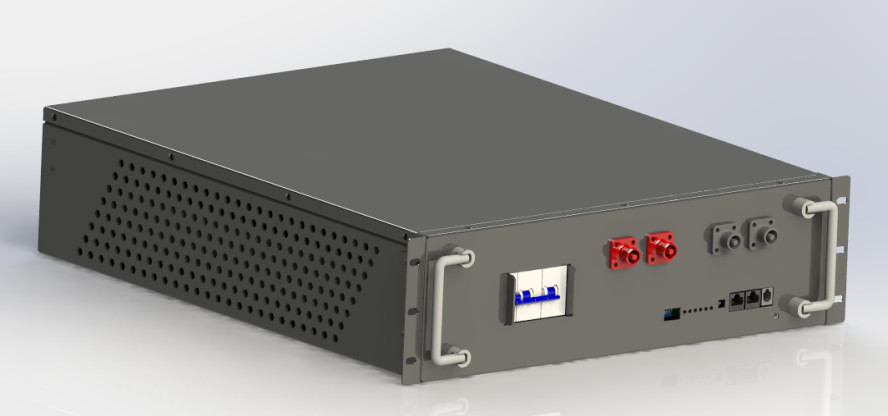

LiFePO4 Lithium Battery 25.6V 200Ah

100 system
MOQ
Inquiry
Price
LiFePO4 Lithium Battery 25.6V 200Ah
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 200Ah
Energy: 5120Wh
Resistance: ≤30mΩ
Efficiency: ≥0.98
Cycle Life: >4000cycles @1C,80% DOD
Self Discharge: ＜ 5% Per Month
Max. Modules In Series/Parallel: 8S/2P
Highlight:

25.6V LiFePO4 Lithium Battery

,

25.6V 200Ah LiFePO4 Lithium Battery

,

200Ah LiFePO4 Lithium Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

LiFePO4 Lithium Battery 25.6V 200Ah



24100(25.6V200Ah)
BATTERY DATA SHEET
Electrical Parameters   Mechanical Parameters
Nominal Voltage 25.6V Dimension(WxD×H) 482.6x540x133mm
Rated Capacity 200Ah 19x 21.26x 5.24"
Energy 5120Wh Weight 45.5kg
Resistance ≤30mΩ Terminal Type FCC06B0
Efficiency ≥0.98 Battery Housing Cold rolled steel sheet
Cycle Life >4000cycles @1C,80% DOD Housing Protection IP30
Self Discharge ＜ 5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Modules in Series/Parallel 8S/2P Communication RS485/RS232

Discharge Parameters   Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 150A (<0.5S) Charge Voltage 28.4~29.2V
Recommended Volt. Disconnect 40V Recommended Float Voltage 27~27.6V
BMS Discharge Cut-off Voltage 40V Recommended Charge Current 50A
Reconnect Voltage 43.2V Maximum Charge Current 100A
Short Circuit Protection 300-800us BMS Charge Cut-off Voltage 30V

Temperature Parameters LiFePO4 Lithium Battery 25.6V 200Ah 0 LiFePO4 Lithium Battery 25.6V 200Ah 1
Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off 65 ℃
