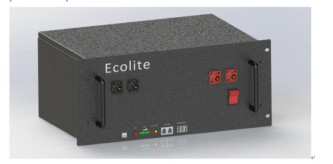

Fast Chargeing LiFePO4 Lithium Battery 51.2V 150Ah

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 100 system

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  51.2V LiFePO4 Lithium Battery, 150Ah LiFePO4 Lithium Battery, Fast Chargeing LiFePO4 Lithium Battery


Nominal Voltage:	51.2V	Rated Capacity:	150Ah
Energy:	7680Wh	Cycle Life:	>4000cycles @0.5C,80% DOD
Max. Modules In Series/Parallel:	16S/3P	Self Discharge:	2% Per Month
Housing Protection:	IP40	Cell Type-Chemistry:	LiFePO4 Cell
Weight:	60KG

Nominal Voltage:	51.2V
Rated Capacity:	150Ah
Energy:	7680Wh
Cycle Life:	>4000cycles @0.5C,80% DOD
Max. Modules In Series/Parallel:	16S/3P
Self Discharge:	2% Per Month
Housing Protection:	IP40
Cell Type-Chemistry:	LiFePO4 Cell
Weight:	60KG

Description

Fast Chargeing LiFePO4 Lithium Battery 51.2V 150Ah

LiFePO4 Lithium Battery 51.2V 150Ah

HYLN48- 150( 51.2V150Ah )
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	51.2V	Dimension(W×D×H)	400x650x222mm
Rated Capacity	150Ah		15.75x25.59x8.74"
Energy	7680Wh	Weight	60kg
Resistance	≤16mΩ	Terminal Type	SLPRBPSR , SLPRBPSB
Efficiency	0.99	Battery Housing	Matel
Cycle Life	>4000cycles @0.5C,80% DOD	Housing Protection	IP40
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	16S/3P	SOC Display(Optional)	LED
		Communication Mode	CAN


Discharge Parameters		Charge Parameters
Continuous Discharge Current	80A	Charge Method	CC-CV
Pulse Discharge Current	200A (<3S)	Charge Voltage	57.6V
Recommended Volt. Disconnect	40V	Recommended Float Voltage	56.8V
BMS Discharge Cut-off Voltage	36.8V	Recommended Charge Current	50A
Reconnect Voltage	46.4V	Maximum Charge Current	100A
Short Circuit Protection	200-600us	BMS Charge Cut-off Voltage	59.2V

Temperature Parameters
Discharge Temperature	-30 t o 60 ℃
Charge Temperature	0 to 60 ℃
Storage Temperature	-20 to 40℃
BMS High Temperature Cut-off	70℃
