LFP72-100 76.8V 100Ah Lithium Iron Phosphate LiFePO4 Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              76.8V LiFePO4 Battery, LFP72-100 LiFePO4 Battery, 100Ah LiFePO4 Battery


Nominal Voltage:	76.8V	Rated Capacity:	100Ah
Energy:	7680Wh	Resistance:	≤35mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	<5% Per Month	Max. Modules In Series/Parallel:	24S/1P

Nominal Voltage:	76.8V
Rated Capacity:	100Ah
Energy:	7680Wh
Resistance:	≤35mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @1C,80% DOD
Self Discharge:	<5% Per Month
Max. Modules In Series/Parallel:	24S/1P

Description

LFP72-100 76.8V 100Ah Lithium Iron Phosphate LiFePO4 Battery

LFP12-300 12.8V 304Ah Lithium lron Phosphate (LiFePO4)

Specifications:

Electrical Parameters		Mechanical Parameters

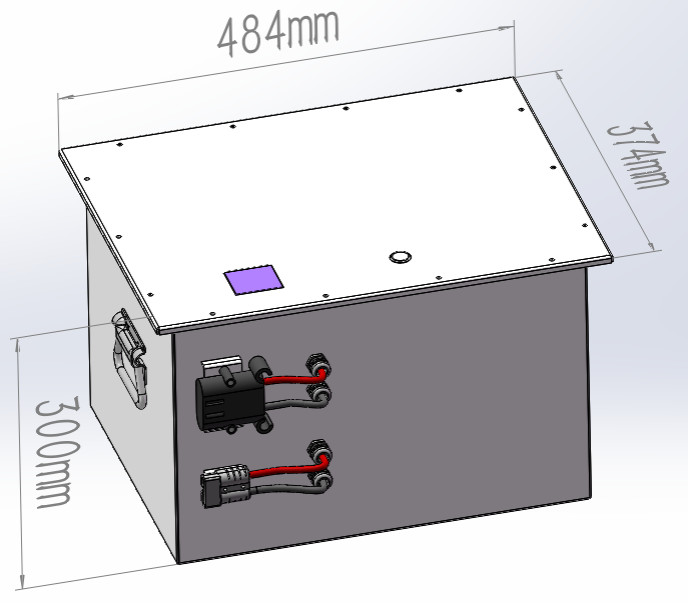

Nominal Voltage	76.8V	Dimension(L×W×H)	484x374x300mm
Rated Capacity	100Ah	Dimension(L×W×H)	19.06x14.72x11.81''
Energy	7680Wh	Weight	72kg
Resistance	≤35mΩ	Terminal Type	REMA,Anderson
Efficiency	≥0.98	Battery Housing	Cold rolled steel gold
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP54
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	24S/1P	Communication	4G+GPS

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A(<1S)	Charge Voltage	85.2-87.6V
Recommended Volt. Disconnect	60V	Recommended Float Voltage	81~82.8V
BMS Discharge Cut-off Voltage	52.8V	Recommended Charge Current	50A
Reconnect Voltage	64.8V	Maximum Charge Current	100A
Short Circuit Protection	200-600us	BMS Charge Cut-off Valtage	88.8V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		65℃
