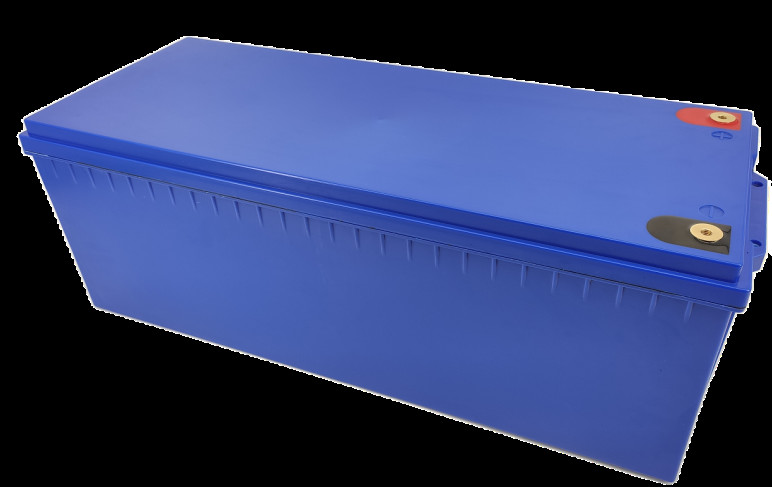

High Density Lithium Iron Phosphate Battery Pack 25.8V 150Ah 3840Wh

Product Details

Place of Origin: China

Brand Name: Ecolite

Model Number: 25.8v 150Ah

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 3000 units/month

Get Best Price
Contact Now
Specifications
Highlight:

25.8V Lithium Iron Phosphate Battery Pack

,

150Ah Lithium Iron Phosphate Battery Pack

,

3840Wh Lithium Iron Phosphate Battery Pack

Nominal Voltage:
25.8V
Rated Capacity:
150Ah
Energy:
3840Wh
Resistance:
≤30mΩ
Efficiency:
≥0.98
Cycle Life:
>4000cycles @1C,80% DOD
Self Discharge:
<5% Per Month
Max. Modules In Series/Parallel:
4S/20P
Nominal Voltage:
25.8V
Rated Capacity:
150Ah
Energy:
3840Wh
Resistance:
≤30mΩ
Efficiency:
≥0.98
Cycle Life:
>4000cycles @1C,80% DOD
Self Discharge:
<5% Per Month
Max. Modules In Series/Parallel:
4S/20P
Description
High Density Lithium Iron Phosphate Battery Pack 25.8V 150Ah 3840Wh

Lithium Iron Phosphate Battery 25.8V 150Ah









Mechanical Parameters
No Item Data
1 Dimension(W×D×H) 640×245×220mm(25.19×9.64×8.66'')
2 Weight 35kg
3 Terminal Type M8
4 Battery Housing ABS
5 Housing Protection IP65
6 Cell Type-Chemistry LifePo4Cell
7 Communication CAN
Discharge Parameters
No



Item



Data
1 Continuous Discharge Current 150A
2 Pulse Discharge Current 170A(<10s)
3 Recommended Volt. Disconnect 20V
4 BMS Discharge Cut-off Voltage 20V
5 Reconnect Voltage 24V
6 Short Circuit Protection 300-800us
Charge Parameters
No



Item



Data
1 Charge Method CC-CV
2 Charge Voltage 28.4~29.2V
3 Recommended Float Voltage 27.0~27.6V
4 Recommended Charge Current 75A
5 Maximum Charge Current 150A
6 BMS Charge Cut-off Voltage 29.2V
7 Cycle life >4000cycles @1C,80%DOD
Temperature Parameters



No



Item Data
1 Discharge Temperature -20 ℃ to 60 ℃
2 Charge Temperature 0 ℃to 55 ℃
3 Storage Temperature -20 ℃ to 60 ℃
4 BMS High Temperature Cut-off 65℃



capacity:25.6V150Ah
size:L640*W245*H220mm

Hefei Hongye Lithium Energy Science &Technology Co., Ltd., is located in beautiful Boyan Science &Technology Park of Hefei, which has convenient transportation and well-equipped facilities. Lithium Energy is specialized in R&D,production,sales and technology support of lithium battery. Meanwhile, it has its own intellectual property, which makes it possible to provide different service with different requirement, that’s why Lithium Energy gets good reputation.
Lithium Energy covers an area of 14000 square meters, and the current production capacity is 80 thousand per day. The factory covers with full-automatic equipment, with human assistance. We mainly produce LTO and LFP at present, widely applied in energy storage, communication base station, car, etc.
Lithium Energy carries on spirit of “preciseness factualism efficiency innovation harmony”, and keeps principle of “be practical and realistic” “customer orientation” with a professional team.
Lithium Energy will focus on creating its own brand and contributing to a greener home.

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
