Home /Products/LiFePO4 Lithium Battery/High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery

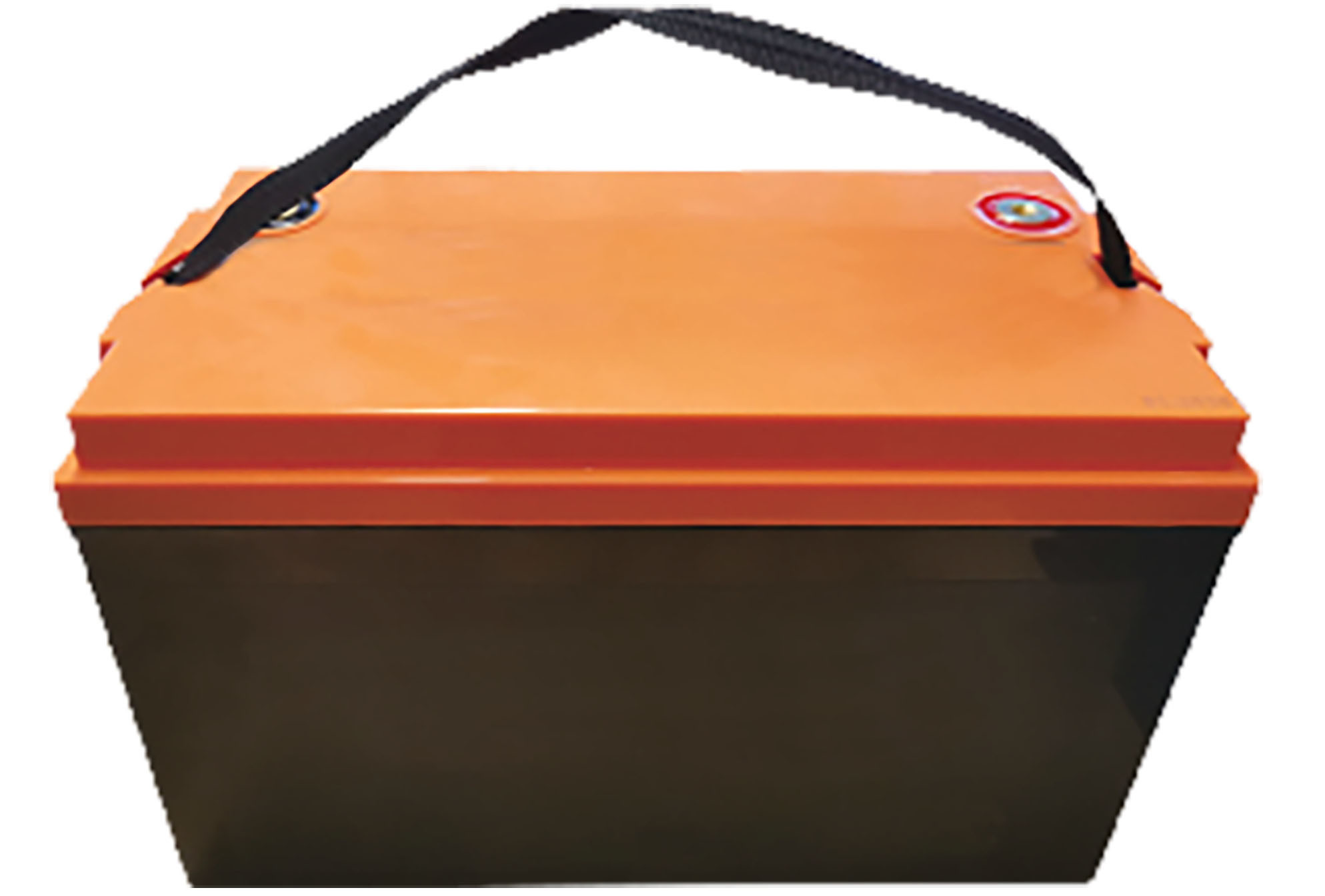

High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery

1000pcs
MOQ
Inquiry
Price
High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 12.8V
Rated Capacity: 100Ah
Energy: 1280Wh
Resistance: ≤65mΩ
Efficiency: 0.99
Cycle Life: ＞2000cycle @1C，80% DOD
Self Discharge: 2% Per Month
Max.Modules In Series/Parallel: 4S/2P
Highlight:

100Ah LiFePO4 Battery

,

1280Wh LiFePO4 Battery

,

12.8V LiFePO4 Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Model Number: 12.8V100Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

Ecolite Lithium Iron Phosphate Battery 12.8V100Ah LiFePO4

Mechanical Parameters
Dimension(L×W×H)329×173×214mm(13.0×6.8×8.5'')
Weight11.5kg(25.35bs)
Terminal TypeM8
Battery HousingABS,LG121
Housing ProtectionIP56
Cell Type-ChemistryLiFePO4Cell
SOC Display(Optional)/
Discharge Parameters
Continuous Discharge Current100A
Pulse Discharge Current160A(＜30s)
Recommended Volt,Disconnect10V
BMS Discharge Cut-off Voltage8.8V
Reconnect Voltage10.8V

Short Circuit Protection

300-800us
Charge Parameters

Charge Method

CC-CV

Charge Voltage

14.4~14.8V

Recommended Float Voltage

13.8V

Recommended Charge Current

30A

Maximum Charge Current

100A

BMS Charge Cut-off Voltage

15V

Temperature Parameters

Discharge Temperature

-20 to 60 ℃ (-4 to 140 ℉ )

Charge Temperature

0 to 60 ℃ (32 to 140 ℉ )

Storage Temperature

-40 to 70 ℃ (-40 to 158 ℉ )

BMS High Temperature Cut-off

78 ℃ (172.4 ℉ )

  High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 0

Cell Performance Charateristics


                    High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 1High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 2
                                    High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 3   High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 4

High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 5


Battery Dimension



High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery 6


NOTE:Do not Mix With Sealed Lead Acid Batteries When Recycling. See Ecolite User's Manual for Proper Operation.
