High Temperature Range 1280Wh 12.8V 100Ah Lithium Iron Phosphate Battery

Name: High Temperature Range 1280Wh 12.8V 100Ah Lithium Iron Phosphate Battery
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 12.8V100Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite

Model Number: 12.8V100Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              1280Wh Lithium Iron Phosphate Battery, 12.8V Lithium Iron Phosphate Battery, 100Ah Lithium Iron Phosphate Battery


Nominal Voltage:	12.8V	Rated Capacity:	100Ah
Energy:	1280Wh	Resistance:	≤20mΩ
Efficiency:	≥98%	Cycle Life(1C,80%DOD,25℃):	＞4000cycles
Self Discharge:	<5% Per Month	Max.Modules In Series/Parallel:	4S/1P

Nominal Voltage:	12.8V
Rated Capacity:	100Ah
Energy:	1280Wh
Resistance:	≤20mΩ
Efficiency:	≥98%
Cycle Life(1C,80%DOD,25℃):	＞4000cycles
Self Discharge:	<5% Per Month
Max.Modules In Series/Parallel:	4S/1P

Description

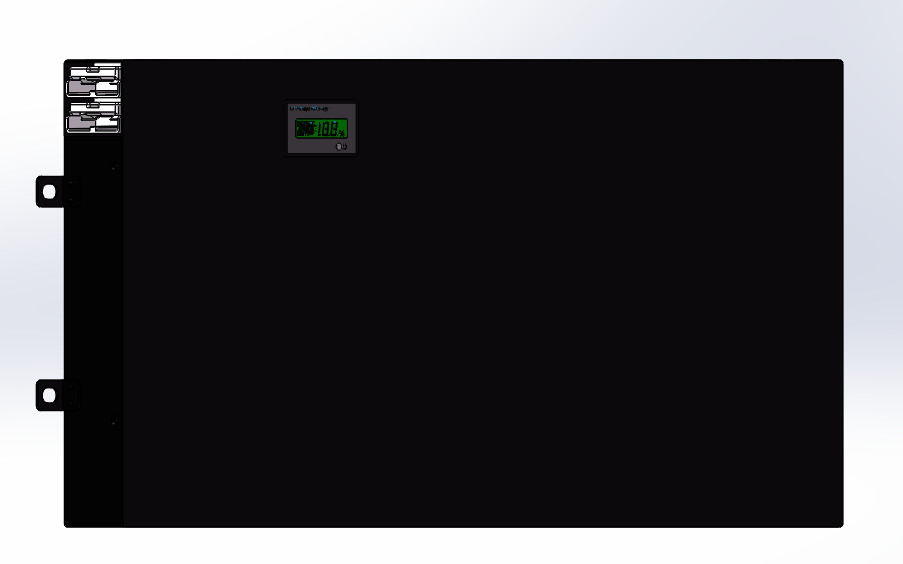

High Temperature Range 1280Wh 12.8V 100Ah Lithium Iron Phosphate Battery

Ecolite Lithium Iron Phosphate Battery 12.8V100Ah LiFePO4

Mechanical Parameters
Dimension(L×W×H) Including mounting feet	644×275×50mm(25.35×10.83×1.97'')
Weight	13.5kg
Terminal Type	120A Anderson
Battery Housing	Cold rolled steel sheet
Housing Protection	IP30
Cell Type-Chemistry	LiFePO4Cell
SOC Display(Optional)	/
Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	160A(＜10s)
Recommended Volt,Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us
Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.5～13.8V
Recommended Charge Current	50A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	15V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃
Charge Temperature	0 ℃to 55℃
Storage Temperature	-20℃ to 60 ℃
BMS High Temperature Cut-off	65 ℃

DIFFERENT RATE DISCHARGE CURVE(25℃)
High Temperature Range 1280Wh 12.8V 100Ah Lithium Iron Phosphate Battery 0
DIFFERENT TEMPERATURE DISCHARGE CURVE (0.5C)

STATE OF CHARGE CURVE (0.5C, 25°C)

STATE OF CHARGE CURVE (0.5C, 25°C)

DIFFERENT DOD DISCHARGE CYCLE LIFE CURVE (1C)

DIFFERENT TEMPERATURE SELF DISCHARGE CURVE
High Temperature Range 1280Wh 12.8V 100Ah Lithium Iron Phosphate Battery 5
