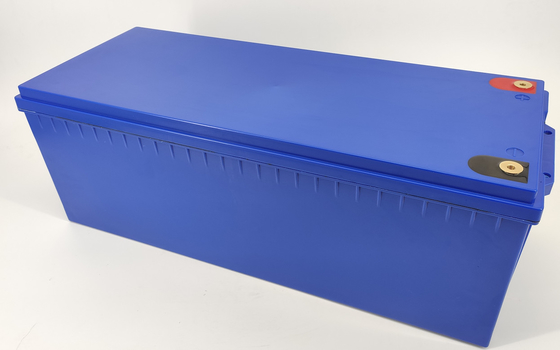

LFP51.2-100 5120Wh 51.2V 100Ah LiFePO4 Lithium Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              5120Wh LiFePO4 Lithium Battery, 51.2V LiFePO4 Lithium Battery, 100Ah LiFePO4 Lithium Battery


Nominal Voltage:	51.2V	Rated Capacity:	100Ah
Energy:	5120Wh	Resistance:	≤65mΩ
Efficiency:	0.99	Cycle Life:	>4000cycles @1C.80% DOD
Self Discharge:	2% Per Month	Max. Modules In Series/Parallel:	16S/2P

Nominal Voltage:	51.2V
Rated Capacity:	100Ah
Energy:	5120Wh
Resistance:	≤65mΩ
Efficiency:	0.99
Cycle Life:	>4000cycles @1C.80% DOD
Self Discharge:	2% Per Month
Max. Modules In Series/Parallel:	16S/2P

Description

LFP51.2-100 5120Wh 51.2V 100Ah LiFePO4 Lithium Battery

Ecolite LFP51.2-100(51.2V 100Ah) LiFePO4 Lithium Battery

Electrical Parameters

Electrical Parameters		Mechanical Parameters
Nominal Voltage	51.2V	Dimension(LxWxH)	640x245x220mm
Rated Capacity	100Ah	Dimension(LxWxH)	25.19x 9.64x8.66''
Energy	5120Wh	Weight	42kg
Resistance	≤65mΩ	Terminal Type	M8
Efficiency	0.99	Battery Housing	ABS
Cycle Life	>4000cycles @1C.80% DOD	Housing Protection	IP65
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	16S/2P	SOC Display(Optional)	/

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A(<1S)	Charge Voltage	56.8~58.4V
Recommended Volt. Disconnect	40V	Recommended Float Voltage	54V
BMS Discharge Cut-off Voltage	35.2V	Recommended Charge Current	50A
Reconnect Voltage	43.2V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	60V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 60℃
Storage Temperature		-10℃ to 35℃
BMS High Temperature Cut-off		65℃
