Home /Products/LiFePO4 Lithium Battery/LiFePO4 Lithium Battery For Power Door LED Light And Small Equipment

LiFePO4 Lithium Battery For Power Door LED Light And Small Equipment

5000
MOQ
Inquiry
Price
LiFePO4 Lithium Battery For Power Door LED Light And Small Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Voltage: 12.8V
Rated Capacity: 20.4Ah
Battery Energy: 261.12Wh
Resistance: ≤50mΩ
Weight: 2.6kg
Cycle Life: >4000cycles @1C.80% DOD
Self Discharge: 2% Per Month
Max. Modules In Series/Parallel: 4S/6P
Highlight:

Small Equipment LiFePO4 Lithium Battery

,

LiFePO4 Lithium Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

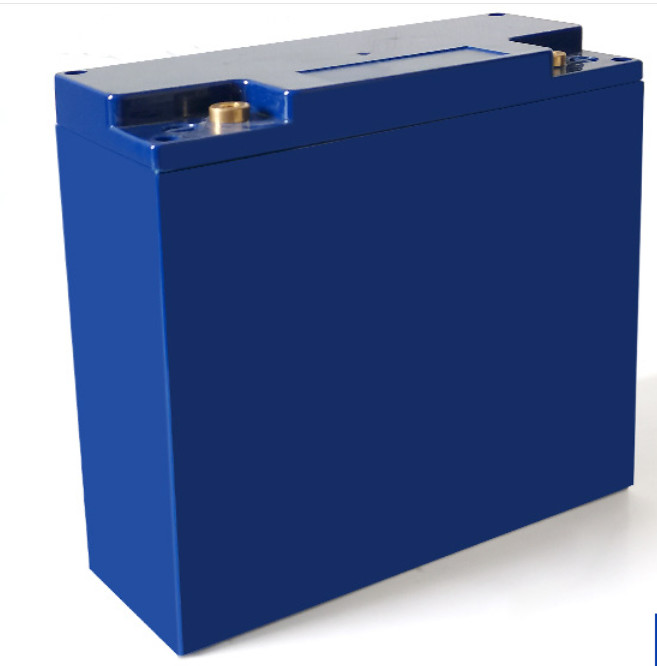

Ecolite LFP12-20(12.8V 20.4Ah) LiFePO4 Lithium Battery
Features
Lithium Iron Phosphate(LiFePo4):the safest Lithium Technology
Intergrated Battery Management System(BMS)
Performance
Long Cycle Life ＞ 4000cycles@80%DOD.
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.Environment Friendly.
Electrical Parameters

Electrical ParametersMechanical Parameters
Nominal Voltage12.8VDimension(LxWxH)181x77x168mm
Rated Capacity20.4AhDimension(LxWxH)7.31x3.03x6.61''
Energy261.12WhWeight2.6kg
Resistance≤50mΩTerminal TypeM5
Efficiency0.99Battery HousingABS
Cycle Life>4000cycles @1C.80% DODHousing ProtectionIP65
Self Discharge2% per MonthCell Type-ChemistryLiFePO4 Cell
Max. Modules in Series/Parallel4S/6PSOC Display(Optional)/



Discharge ParametersCharge Parameters
Continuous Discharge Current20ANormal Charge MethodCC-CV
Pulse Discharge Current40A(<1S)Normal Charge Voltage14.4~14.8V
Recommended Volt. Disconnect10VRecommended Float Voltage13.8V
BMS Discharge Cut-off Voltage8.8VRecommended Charge Current10A
Reconnect Voltage10.8VMaximum Charge Current20A
Short Circuit Protection300-800usBMS Charge Cut-off Voltage15V



Temperature Parameters
Discharge Temperature-20℃ to 60℃
Charge Temperature0℃ to 60℃
Storage Temperature-10℃ to 35℃
BMS High Temperature Cut-off65℃
















Tag:

Lithium Fast Charging Battery

Electric Tricycle Lithium Battery

Lifepo4 Battery Pack
