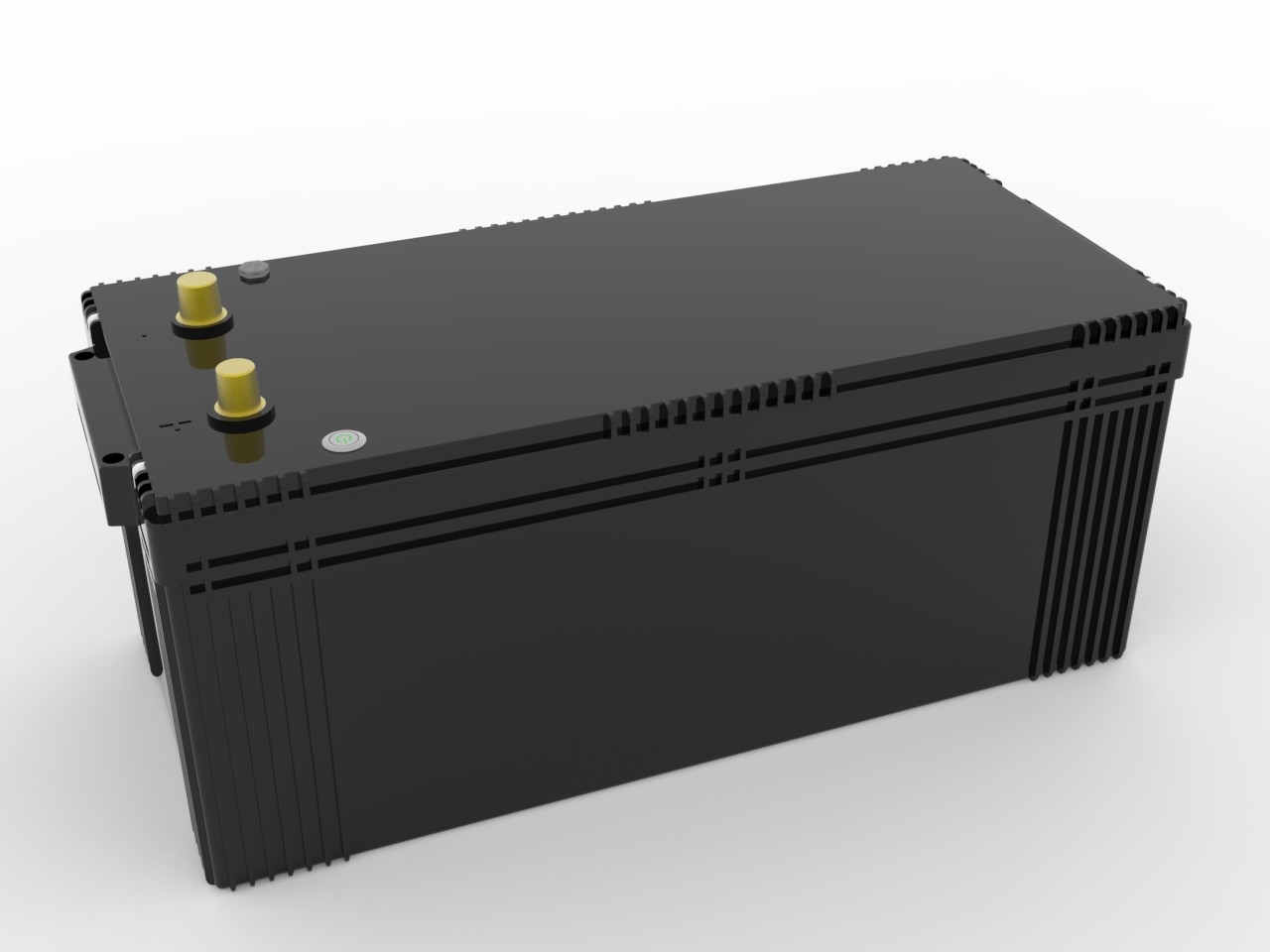

Ecolite 25.6V 80Ah Fast Chatging Parking Air Conditioning Starter Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Ecolite Parking Air Conditioning Starter Battery, 80Ah Air Conditioning Starter Battery


Nominal Voltage:	25.6V	Rated Capacity:	80Ah
Energy:	2048Wh	Resistance:	≤12mΩ
Efficiency:	≥98%	Cycle Life(1C/1C,25℃):	＞8000cycles ,70%SOH
Self Discharge:	＜5％ Per Month	Cell In Series/Parallel:	8S/4P

Nominal Voltage:	25.6V
Rated Capacity:	80Ah
Energy:	2048Wh
Resistance:	≤12mΩ
Efficiency:	≥98%
Cycle Life(1C/1C,25℃):	＞8000cycles ,70%SOH
Self Discharge:	＜5％ Per Month
Cell In Series/Parallel:	8S/4P

Description

Ecolite 25.6V 80Ah Fast Chatging Parking Air Conditioning Starter Battery

Parking air conditioning starter battery LFP24-80(25.6V80Ah)

FEATURES

Fast charging :Fully charged in about 1 hour.

Lightweight :Original lead-acid battery 1/2.

Built in BMS with self balancing function.

Reserve 20% SOC for emergency start-up.

Safety: overcurrent, overvoltage, undervoltage,

short circuit protection

Electrical Parameters
Nominal Voltage	25.6V
Rated Capacity	80Ah
Energy	2048Wh
Resistance	≤12mΩ
Efficiency	≥98%
Cycle Life(1C/1C,25℃)	＞8000cycles,70%SOH
Self Discharge	＜5% per Month
Cell in Series/Parallel	8S/4P

Mechanical Parameters
Dimension(L×W×H)	508219205mm
Dimension(L×W×H)	20.008.628.07''
Weight	25kg
Terminal Type	Post
Battery Housing	ABS
Housing protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	CAN

Discharge Parameters
Continuous Discharge Current	200A
Pulse Discharge Current	1200A(＜1S)
CCA(Tested by DY-2015)	1200CCA
BMS Discharge Cut-off Voltage	16V
Reconnect Voltage	18.4V

Charge Parameters
Charge Method	CC-CV
Charge Voltage	28.4~28.8V
Recommended Float Voltage	27.0~27.6V
Recommended Charge Current	80A
Maximum Charge Current	200A
BMS Charge Cut-off Voltage	29.6V

Temperature Parameters
Discharge Temperature	-30℃ to 65℃
Charge Temperature	-30 ℃ to 65 ℃
Storage Temperature	0℃ to 35 ℃
BMS High Temperature Cut-off	70℃
