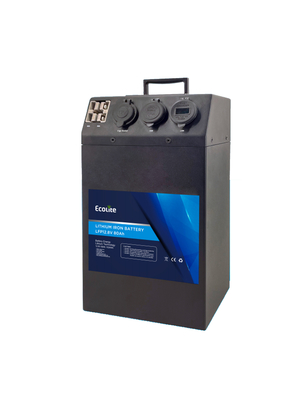

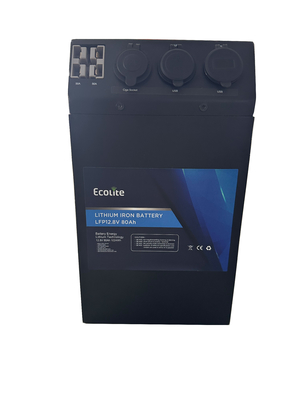

ECOLITE Fast Charging LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 100 system

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          80A LiFePO4 Portable Energy Storage, 12.8v LiFePO4 Portable Energy Storage, Fast Charging LiFePO4 Portable Energy Storage


Nominal Voltage:	12.8V	Nominal Capacity:	80Ah
Energy:	1024Wh	Resistance:	≤20mΩ
Efficiency:	≥0.98	Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	＜ 5% Per Month	Cell In Series/Parallel:	4S/1P
Weight:	12kg	Terminal Type:	Interface Parameters
Battery Housing:	SPCC	Recommended Float Voltage:	13.3~13.4V@100%
Charge Method:	CC-CV	Charge Voltage:	14.2~14.6V
Recommended Charge Current:	40A

Nominal Voltage:	12.8V
Nominal Capacity:	80Ah
Energy:	1024Wh
Resistance:	≤20mΩ
Efficiency:	≥0.98
Cycle Life:	>2000cycles @1C,80% DOD
Self Discharge:	＜ 5% Per Month
Cell In Series/Parallel:	4S/1P
Weight:	12kg
Terminal Type:	Interface Parameters
Battery Housing:	SPCC
Recommended Float Voltage:	13.3~13.4V@100%
Charge Method:	CC-CV
Charge Voltage:	14.2~14.6V
Recommended Charge Current:	40A

Description

ECOLITE Fast Charging LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A

LiFePO4 Lithium Battery 12.8v 80A

mini battery cover 12.8V80Ah

BATTERY DATA SHEET

Electrical Parameters

Mechanical Parameters

Nominal Voltage

12.8V

Dimension(L×W×H)

181x136x320mm

Rated Capacity

80Ah

7.12x 5.35x 12.60"

Energy

1024Wh

Weight

12kg

Resistance

≤20mΩ

Terminal Type

Interface parameters

Efficiency

≥0.98

Battery Housing

SPCC

Cycle Life 25℃,0.5C/1C,100％DOD

>2000Remaining capacity＞80％

Housing Protection

IP32

Self Discharge

＜ 5% per Month

Cell Type-Chemistry

LiFePO4 Cell

Cell in Series/Parallel

4S/1P

Communication

Bluetooth

Discharge Parameters

Charge Parameters

Continuous Discharge Current

80A

Charge Method

CC-CV

Pulse Discharge Current

150A (<0.5S)

Charge Voltage

14.2~14.6V

Recommended Volt. Disconnect

10V

Recommended Float Voltage

13.3~13.4V@100%

BMS Discharge Cut-off Voltage

10V

Recommended Charge Current

40A

Reconnect Voltage

10.8V

Maximum Charge Current

80A

Short Circuit Protection

300-800us

BMS Charge Cut-off Voltage

14.8V

Temperature Parameters

Interface Parameters

Discharge Temperature

-20 ℃ to 60 ℃

50A Anderson(grey)×2

Input/output DC10-DC14.6V Max 50A

Charge Temperature

0 ℃to 55 ℃℃

Ciga Socket

Output DC 10V~DC14.6V,Max 10A

Storage Temperature

-20 ℃ to 60 ℃

USB-A+C Output

USB-A Max18W,5V3A,9V2A,12V1.5A

USB-C Max36W,5V3A,9V3A12V3A

BMS High Temperature Cut-off

65℃

USB-C+C Output

5V3A,9V3A,12V3A,Max36W

USB-C Charge

MAX60W

DC5525 Charge

DC12V~DC24V,Max5A
