Ecolite 4000+Deep Cycle LifePO4 Lithium Battery With BMS 12.8V 200Ah LFP Battery Pack

1000pcs
MOQ
Inquiry
Price
Ecolite 4000+Deep Cycle LifePO4 Lithium Battery With BMS 12.8V 200Ah LFP Battery Pack
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 12.8V
Rated Capacity: 200Ah
Energy: 2560wh
Resistance: ≤65mΩ
Efficiency: ≥0.98
Cycle Life: >4000cycles @1c,80% DOD
Self Discharge: ＜5% Per Month
Max, Modules In Series/Parallel: 4S/2P
Dimension: 507×201.5×215mm
Highlight:

Deep Cycle LifePO4 Lithium Battery

,

LifePO4 Lithium Battery With BMS

,

200Ah LFP Battery Pack
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: LFP12-200
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

Ecolite 12.8v 200Ah LFP Battery Pack With BMS LifePO4 Lithium Battery For Solar Storage/RV

Features

Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.

Integrated Battery Management System(BMS).

Maximum support 4 in series or 4 in parallel.it has 4000+deep cycle.

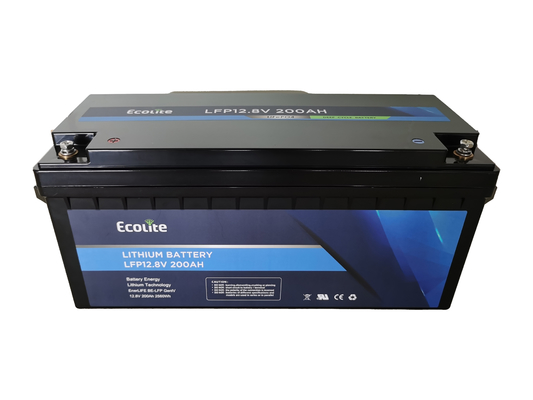

Three views of product

Ecolite 4000+Deep Cycle LifePO4 Lithium Battery With BMS 12.8V 200Ah LFP Battery Pack 0

Specifications



Electrical Parameters
Nominal Voltage 12.8V
Rated Capacity 200Ah
Energy 2560Wh
Resistance ≤65mΩ
Efficiency ≥0.98
Cycle Life ＞4000cycles@1C,80％ DOD
Self Discharge ＜5％ per Month
Cell in Series/Parallel 4S/2P





Mechanical Parameters
Dimension(LxWxH) 507x201.5x215mm
Dimension(LxWxH) 19.96x 7.93x 8.46''
Weight 23Kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth





Discharge Parameters
Continuous Discharge Current 150A
Pulse Discharge Current 300A (<10S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us



Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.3~13.4V@100%
Recommended Charge Current 100A
Maximum Charge Current 150A
BMS Charge Cut-off Voltage 14.8V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃






Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
