38.4V 100Ah LiFePO4 Lithium Battery Maximum Support 4 In Parallel Integrated BMS

5000
MOQ
Inquiry
Price
38.4V 100Ah LiFePO4 Lithium Battery Maximum Support 4 In Parallel Integrated BMS
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 38.4V
Rated Capacity: 100Ah
Energy: 3840Wh
Resistance: ≤60mΩ
Efficiency: ≥0.98
Cycle Life: >3000cycles @1C.80% DOD
Self Discharge: <5% Per Month
Max. Modules In Series/Parallel: 12S/1P
Highlight:

100Ah LiFePO4 Lithium Battery

,

38.4V LiFePO4 Lithium Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP36-100
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

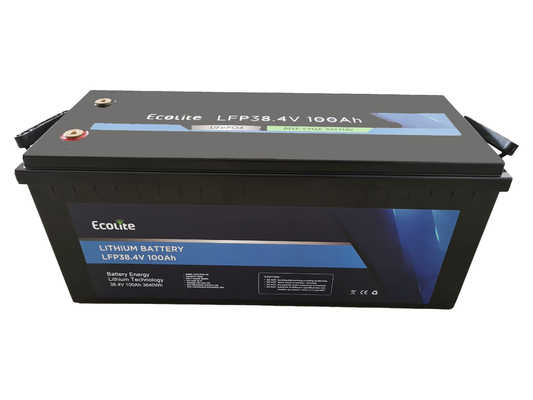

Ecolite LFP36-100(38.4V 100Ah) LiFePO4 Lithium Battery Maximum Support 4 In Parallel Integrated BMS
Features
Lithium Titanate(LTO):the Safest Lithium Technology.Integrated Battery Management System(BMS).
Maximum support 4 in parallel.

Performance
Long Cycle Life＞3000cycles@80％DOD.
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.Environment Friendly.


38.4V 100Ah LiFePO4 Lithium Battery Maximum Support 4 In Parallel Integrated BMS 0
Electrical Parameters

Electrical Parameters Mechanical Parameters
Nominal Voltage 38.4V Dimension(WxDxH) 532x207x215mm
Nominal Capacity 100Ah Dimension(WxDxH) 20.94x 8.15x8.46''
Product Energy 3840Wh Weight 27kg
Resistance ≤60mΩ Terminal Type M8
Efficiency ≥0.98 Battery Housing ABS
Cycle Life >3000cycles @1C.80% DOD Housing Protection IP67
Self Discharge <5% per Month Cell Type-Chemistry LiFePO4 Cell
Max. Modules in Series/Parallel 12S/1P Communication Bluetooth



Discharge Parameters Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 200A(<1S) Charge Voltage 42.6~43.8V
Recommended Volt. Disconnect 30V Recommended Float Voltage 39.9~40.2V@100%
BMS Discharge Cut-off Voltage 30V Recommended Charge Current 50A
Reconnect Voltage 32.4V Maximum Charge Current 100A
Short Circuit Protection 300-800us BMS Charge Cut-off Voltage 44.4V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃
