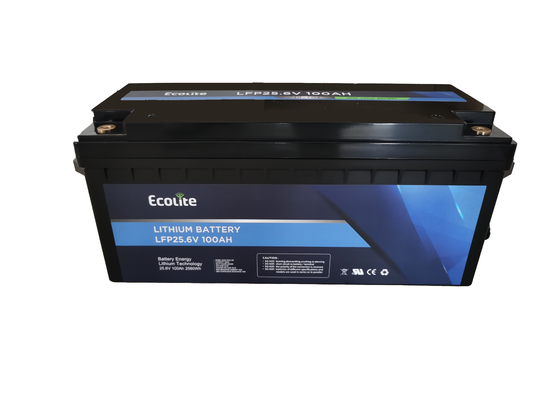

25.6V 100Ah LifePO4 Lithium Battery Pack For Housegold Sloar Energy Storage System

1000pcs
MOQ
Inquiry
Price
25.6V 100Ah LifePO4 Lithium Battery Pack For Housegold Sloar Energy Storage System
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 100Ah
Energy: 2560wh
Resistance: ≤45mΩ
Efficiency: ≥0.98
Cycle Life: >4000cycles @1c,80% DOD
Self Discharge: <5% Per Month
Max, Modules In Series/Parallel: 8S/1P
Dimension(W×D×H): 507×201.5×215mm
Highlight:

Housegold LifePO4 Lithium Battery Pack

,

100Ah LifePO4 Lithium Battery Pack

,

25.6V LifePO4 Lithium Battery Pack

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: 25.6v 100Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

Household Solar Energy Storage System 25.6v 100Ah LFP Battery Pack With BMS LifePO4 Lithium Battery​



Features:

Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.Integrated Battery Management System(BMS).Maximum support 4 in series or 4 in parallel.

Performance:

Long Cycle Life>4000cycles@80%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.



25.6V 100Ah LifePO4 Lithium Battery Pack For Housegold Sloar Energy Storage System 0

Three views of product:



25.6V 100Ah LifePO4 Lithium Battery Pack For Housegold Sloar Energy Storage System 1

Specifications:



Electrical Parameters Mechanical Parameters
Nominal Voltage 25.6V Dimension(W×D×H) 507×201.5×215mm
Rated Capacity 100Ah Dimension(W×D×H) 19.96×7.93×8.46''
Energy 2560Wh Weight 23kg
Resistance ≤45mΩ Terminal Type M8
Efficiency ≥0.98 Battery Housing ABS
Cycle Life >4000cycles@1C,80%DOD Housing Protection IP65
Self Discharge <5%per Month Cell Type-Chemistry LiFePO4 Cell
Max.Modules in Series/parallel 8S/1p Communication Bluetooth
Discharge Parameters Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 150A(<10s) Charge Voltage 28.4~29.2V
Recommended Volt.Disconnect 20V Recommended Float Voltage 26.6~26.8V@100%
BMS Discharge Cut-off Voltage 20V Recommended Charge Current 50A
Reconnect Voltage 21.6V Maximum Charge Current 100A
Short Circuit Protection

300-800us

BMS Charge Cut-off voltage 29.6V
Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60 ℃
BMS High Temperature Cut-off 65℃





Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: one year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many cells you can produce per month?
A: 1.8million

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
