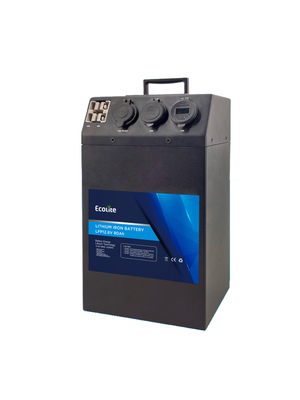

LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A For Outdoor Backup Energy

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      LiFePO4 Portable Energy Storage  Lithium Battery, 80A  Portable Energy Storage  Lithium Battery


Rated Voltage:	12.8V	Rated Capacity:	80Ah
Energy:	1024Wh	Resistance:	≤20mΩ
Efficiency:	≥0.98	Cycle Life(25℃，0.5C/1C，100%DOD):	>2000cycles Remaining Capacity＞80%
Self Discharge:	＜ 5% Per Month	Cell In Series/Parallel:	4S/1P
Dimension（L×W×H）:	181×136×320mm	Terminal Type:	50A Anderson
Discharge Temperature:	-20℃ To 55 ℃	Charge Temperature:	0 ℃ To 50℃
Storage Temperature:	-20 ℃ To 55 ℃	BMS High Temperature Cut-off:	60 ℃

Rated Voltage:	12.8V
Rated Capacity:	80Ah
Energy:	1024Wh
Resistance:	≤20mΩ
Efficiency:	≥0.98
Cycle Life(25℃，0.5C/1C，100%DOD):	>2000cycles Remaining Capacity＞80%
Self Discharge:	＜ 5% Per Month
Cell In Series/Parallel:	4S/1P
Dimension（L×W×H）:	181×136×320mm
Terminal Type:	50A Anderson
Discharge Temperature:	-20℃ To 55 ℃
Charge Temperature:	0 ℃ To 50℃
Storage Temperature:	-20 ℃ To 55 ℃
BMS High Temperature Cut-off:	60 ℃

Description

LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A For Outdoor Backup Energy

LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A For Outdoor Backup Energy

Generalization:

Lithium iron phosphate batteries, as portable energy storage batteries, have many advantages. They can meet the needs of outdoor backup energy use and have the characteristics of high safety, long life, fast charging, and high energy density. Nowadays, lithium iron phosphate batteries are widely used in fields such as electric vehicles and energy storage systems, and their future development direction is also very broad. With technological progress and continuous market expansion, lithium iron phosphate batteries are expected to play an important role in more fields.

Features:

Lithium Iron Phosphate(LiFePO4).

Integrated Battery Management System(BMS).

Support USB-A and USB-C discharge

Support USB-C charging

Support DC charging

Performance:

Long Cycle Life ＞2000 cycles,Remaining capacity ＞80%@25℃,0.5C/0.5,100%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance

Fast Charging

Environment Friendly.

LiFePO4 Portable Energy Storage Lithium Battery 12.8v 80A For Outdoor Backup Energy 0

mini battery cover 12.8V80Ah
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(L×W×H)	181x136x320mm
Rated Capacity	80Ah		7.12x 5.35x 12.60"
Energy	1024Wh	Weight	11.5kg
Resistance	≤20mΩ	Terminal Type	50A Anderson
Efficiency	≥0.98	Battery Housing	SPCC
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP32
Self Discharge	＜ 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Cell in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	80A	Charge Method	CC-CV
Pulse Discharge Current	120A (<10S)	Charge Voltage	14.2~14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	40A
Reconnect Voltage	10.8V	Maximum Charge Current	80A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	14.8V

Temperature Parameters
Discharge Temperature	-20 ℃ to 60 ℃
Charge Temperature	0 ℃to 55 ℃℃
Storage Temperature	-20 ℃ to 60 ℃
BMS High Temperature Cut-off	65℃
