LFP 24V 150Ah LIFePO4 Lithium Battery Truck Parking Air Conditioning Starter Battery

5000
MOQ
Inquiry
Price
LFP 24V 150Ah LIFePO4 Lithium Battery Truck Parking Air Conditioning Starter Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 150Ah
Nominal Energy: 3840Wh
Resistance: ≤12mΩ
Efficiency: ≥0.98
Cycle Life: ＞2000cycles ,80% Of Initial Capacity
Self Discharge: ＜5％ Per Month
Max.Modules In Series/Parallel: 8S/1P
Dimension（L×W×H）: 520×269×220mm
Highlight:

24V 150Ah Lithium Battery

,

Truck Parking Air Conditioning Lithium Battery

,

LFP 24V 150Ah Lithium Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP24V150Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

24V 150Ah LIFePO4 Lithium Battery Truck Parking Air Conditioning Starter Battery



FEATURES

Fast charging :About 1hr full charge
Light weight :Primary lead-acid battery1/2
Long service life:2000 Cycles
Built in BMS with self balancing function
Reserve 20% SOC for emergency start-up.
Safety:overcurrent,overvoltage,undervoltage,short circuit protection.
Wide temperature range.
Maintenance free.
Environment protection.

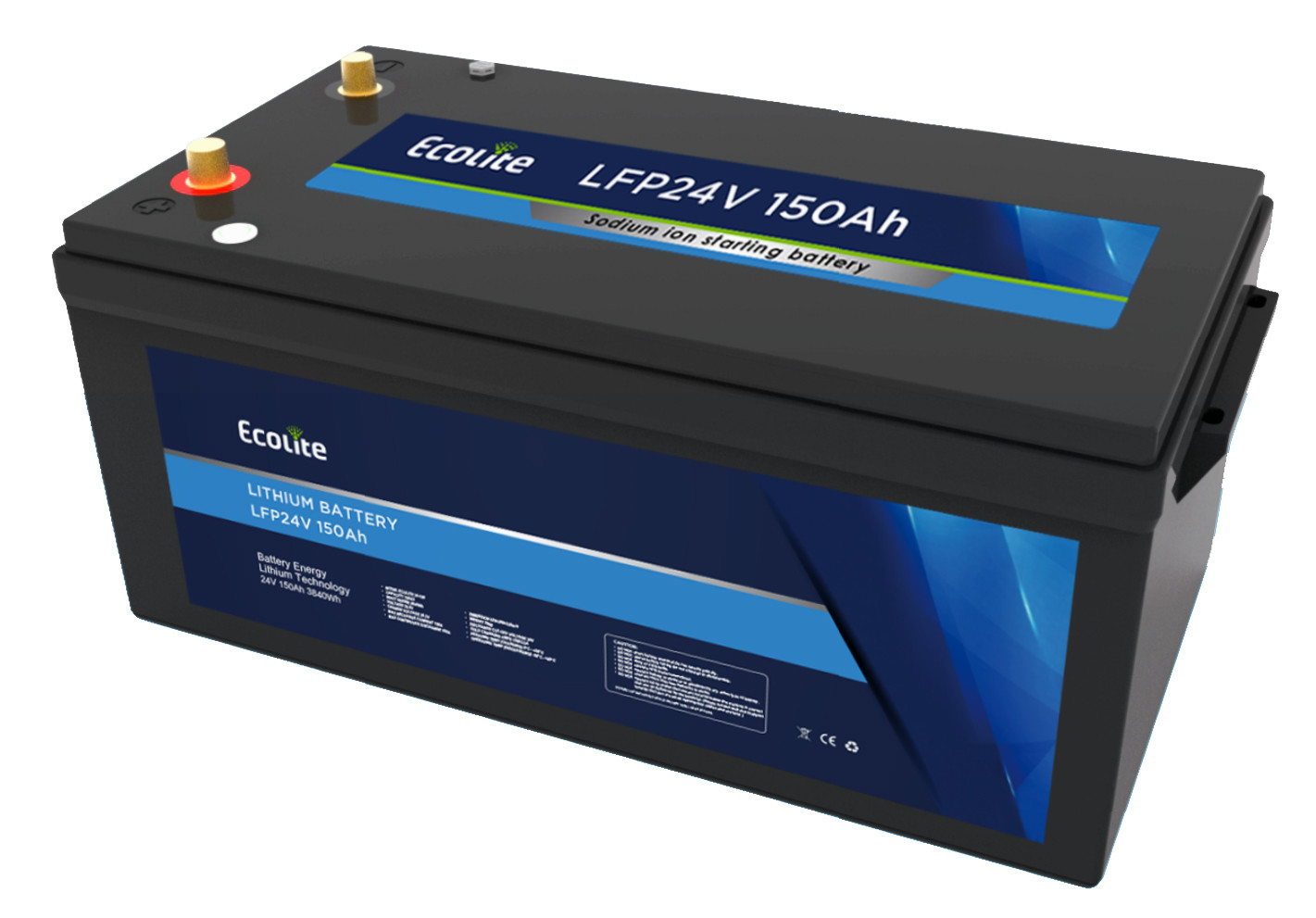

Three Views Of Product
LFP 24V 150Ah LIFePO4 Lithium Battery Truck Parking Air Conditioning Starter Battery 0

Specification
Electrical Parameters

Nominal Voltage

 25.6V

Rated Capacity

 150Ah
Energy 3840Wh
Resistance ≤12mΩ
Efficiency ≥0.98
Cycle Life ＞2000cycles,80% of initial capacity
Self Discharge ＜5% per Month
Max.Modules in Series/Parallel 8S/1P




Mechanical Parameters

Dimension(L×W×H)

 520*269*220mm
20.47*10.59*8.66''
Weight 29kg
Terminal Type Post
Battery Housing ABS
Housing protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication CAN



24V Parking air conditioning starter battery
Model LFP24V 150Ah
Nominal Voltage 25.6V
Battery Capacity 150Ah 3840Wh
Maximum Discharge Current 150A
Maximum Instantaneous Current 1500A
Maximum Charging Current 150A
Maximum Charging Voltage 29.2V
Working Temperature Range -20℃~65℃
Protection Class IP65
Weight 29Kg
Dimensions 520×269×220mm
