LFP 29.2V 25A LiFePO4 Lithium Battery Charger With LED Indication And Automatic Shutdown

Name: LFP 29.2V 25A LiFePO4 Lithium Battery Charger With LED Indication And Automatic Shutdown
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP 29.2V 25A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: LFP 29.2V 25A

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              LED indication LiFePO4 lithium battery charger, 25A LiFePO4 lithium battery charger, 29.2V LiFePO4 lithium battery charger


Basic Parameters:	LFP 29.2V25A	Weight:	2.05Kg
Dimension(LxWxH):	283x142x64mm	Continuous Out-put Power:	730W
IP Protection:	IP20	In-put Voltage:	AC220V~240V
In- Put Frequency:	47~63Hz	Out-put Voltage:	DC20V-DC29.2V
Out-put Current:	25A(±6%)	Working Temperature:	-10°C~+45°C
Relative Temperature:	20-90%	Saving Temperature:	20°℃~+60°C
Altitude:	≤3000m	Atmospheric Pressure:	70~106Kpa(No Condensation)
Cooling Way:	Intelligent Fan Control	Stable Voltage Charging Period:	29.2VDC

Basic Parameters:	LFP 29.2V25A
Weight:	2.05Kg
Dimension(LxWxH):	283x142x64mm
Continuous Out-put Power:	730W
IP Protection:	IP20
In-put Voltage:	AC220V~240V
In- Put Frequency:	47~63Hz
Out-put Voltage:	DC20V-DC29.2V
Out-put Current:	25A(±6%)
Working Temperature:	-10°C~+45°C
Relative Temperature:	20-90%
Saving Temperature:	20°℃~+60°C
Altitude:	≤3000m
Atmospheric Pressure:	70~106Kpa(No Condensation)
Cooling Way:	Intelligent Fan Control
Stable Voltage Charging Period:	29.2VDC

Description

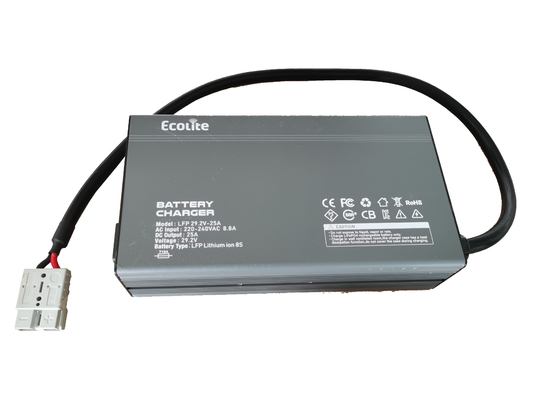

LFP 29.2V 25A LiFePO4 Lithium Battery Charger With LED Indication And Automatic Shutdown

Intelligent Fan Control Ecolite LFP29.2V25A RV Lithium Battery

Features:

LFP29.2V 25A is applicable to a 8-string lithium iron Lee battery pack.This product has the functions of reverse connection protection,overload protection,short circuit protection,cooling by control fan,constant current charging,constant voltage charging,fully automatic shutdown of charger output,LED indication and so on.

LFP 29.2V 25A LiFePO4 Lithium Battery Charger With LED Indication And Automatic Shutdown 0

Specifications:

Basic Parameters	LFP 29.2V25A
Weight	2.05Kg
Dimension(LxWxH)	283x142x64mm
Continuous out-put power	730W
IP Protection	IP20
In-put Voltage	AC220V~240V
In-put Frequency	47~63Hz
Out-put Voltage	DC20V-DC29.2V
Out-put Current	25A(±6%)
Working Temperature	-10℃~+45℃
Saving Temperature	20℃~+60℃
Relative Temperature	20-90%
Atmospheric Pressure	70~106Kpa(No condensation)
Cooling Way	Intelligent fan control
Altitude	≤3000m
Stable Current Charging Period	24~27.6VDC
Stable Voltage Charging Period	29.2VDC
Automatic Off Chargin	Charging Voltage=29.2V and Charging Current< 1A
