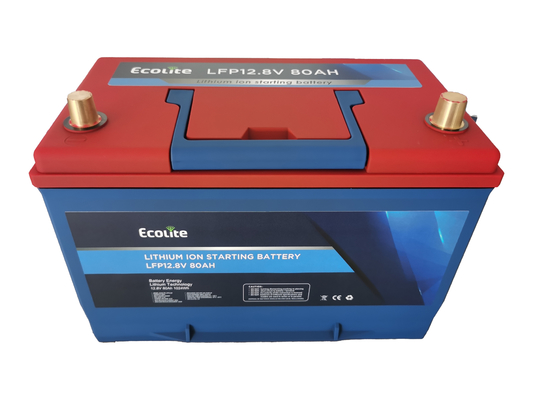

LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting

Name: LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP12-801500
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: LFP12-801500

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  80Ah LiFePO4 Lithium Battery, Fast Charging LiFePO4 Lithium Battery, 12.8V LiFePO4 Lithium Battery


Model:	JS-LFP12.8V80Ah	Housing Material:	ABS
Max.Pulse Discharge Current(3 Sec):	1000A	Dimension(W×D×H):	306×174×200/220mm
Weight:	11.5kg	Cell Type-Chemistry:	LiFePO4 Cell
Self Discharge:	＜2% Per Month	Cycle Life(1C,80%DOD,25℃):	＞2000cycles
Housing Protection:	IP65

Model:	JS-LFP12.8V80Ah
Housing Material:	ABS
Max.Pulse Discharge Current(3 Sec):	1000A
Dimension(W×D×H):	306×174×200/220mm
Weight:	11.5kg
Cell Type-Chemistry:	LiFePO4 Cell
Self Discharge:	＜2% Per Month
Cycle Life(1C,80%DOD,25℃):	＞2000cycles
Housing Protection:	IP65

Description

LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting

LiFePO4 Lithium Battery 12.8V 80Ah Integrate BMS With Fast Charging For Car Starting
FEATURES

Low self discharge → < 2% / month

High working voltage →＞ 12.8V

High current starting capacity → 30C

Fast charging → About 1hr full charge

Light weight → Primary lead-acid battery 1 / 2

Long service life → ＞ 2000 Cycles

Built in BMS with self balancing function

Wide temperature range

Maintenance free

Environment protection

Mechanical Parameters
Dimension(W×D×H)	306×174×200/220mm
Dimension(W×D×H)	12.05×6.85×7.87/8.66’’
Weight	11.5kg
Terminal Type	Post
Battery Housing	ABS
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	/

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	80Ah
Energy	1024Wh
Resistance	≤12mΩ
Efficiency	≥98%
Cycle Life(1C,80%DOD,25℃)	＞2000cycles
Self Discharge	＜2% per Month
Cell in Series/Parallel	4S/4P

Discharge Parameters
Continuous Discharge Current	200A
Pulse Discharge Current	1200A(≤1S)
CCA(Tested by DY-2015)	1200CCA
BMS Discharge Cut-off Voltage	8V
Reconnect Voltage	9.2V

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.4V
Recommended Float Voltage	13.5~13.8V
Recommended Charge Current	40A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	15.6V

Temperature Parameters
Charge Temperature	0 ℃ / 55 ℃
Discharge Temperature	-20 ℃ / 60 ℃
Storage Temperature	0 ℃ / 35 ℃
BMS High Temperature Cut-off	65℃
