OEM / ODM LiFePO4 Lithium Battery 25.6V 230Ah Long Cycle Life Integrate BMS

100Units
MOQ
Inquiry
Price
OEM / ODM LiFePO4 Lithium Battery 25.6V 230Ah Long Cycle Life Integrate BMS
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 230Ah
Energy: 5888Wh
Resistance: ≤30mΩ
Efficiency: ≥0.98
Cycle Life: >4000cycles@1C,80%DOD
Self Discharge: <5% Per Month
Max.modules In Series/Parallel: 8S/1P
Highlight:

230Ah LiFePO4 Lithium Battery

,

25.6V LiFePO4 Lithium Battery

,

Long Cycle Life LiFePO4 Lithium Battery

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Certification: UN38.3 MSDS CE
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

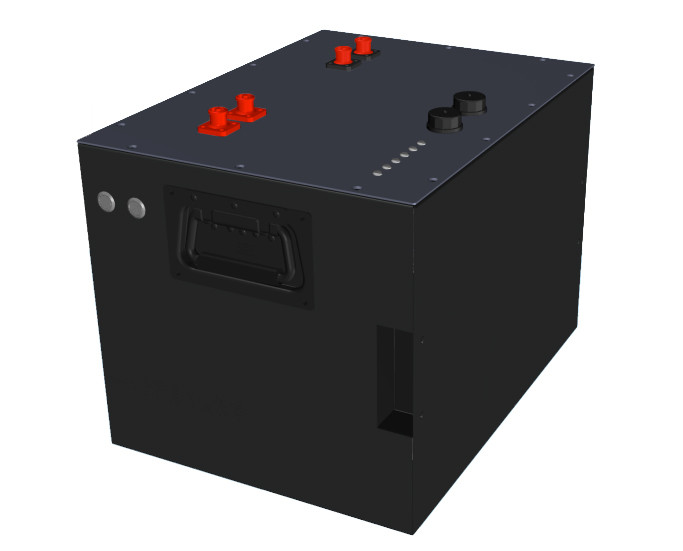

Ecolite Lithium Battery 25.6V230Ah with BMS

FEATURES

Lithium lron Phosphate(LiFePO4)The Safest Lithium Technology.

Integrated Battery Management System(BMS).

Support multiple parallel connections.
PERFORMANCE
Long Cycle Life >4000cycles@80%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Free Maintenance.

Fast Charging.

Environment Friendly.

OEM / ODM LiFePO4 Lithium Battery 25.6V 230Ah Long Cycle Life Integrate BMS 0

Specifications



Electrical Parameters
Nominal Voltage 25.6V
Rated Capacity 230Ah
Energy 5888Wh
Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >4000cycles @1C,80% DOD
Self Discharge < 5% per Month
Max. Modules in Series/Parallel 8S/1P





Mechanical Parameters
Dimension(WxD×H) 395x285x300mm
15.55x11.22x11.81"
Weight 45kg
Terminal Type FCC06B0
Battery Housing SPCC
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication RS485



Discharge Parameters
Continuous Discharge Current 100A
Pulse Discharge Current 150A(<10S)
Recommended Volt. Disconnect 20V
BMS Discharge Cut-off Voltage 20V
Reconnect Voltage 21.6V
Short Circuit Protection 300-800us





Charge Parameters
Charge Method CC-CV
Charge Voltage 28.4~29.2V
Recommended Float Voltage 27~27.6V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 29.2V





Temperature Parameters
Discharge Temperature -20 ℃ to 60 ℃
Charge Temperature 0 ℃to 55 ℃℃
Storage Temperature -20 ℃ to 60 ℃
BMS High Temperature Cut-off 65 ℃



Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged

Q: what is the warranty?
A: two year

Q:What is your payment term ?
A: T/T,L/C

Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

Q :How many modules you can produce per month?
A: 5000 pcs

Q :What is the mode of transport?
A: usually by sea

Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
