Features Gallery Product Description Request A Quote

Features

Specifications

Nominal Voltage: 38.4V

Rated Capacity: 100Ah

Energy: 3840Wh

Internal Resistance: ≤60mΩ

Efficiency: ≥0.98

Cycle Life: >3000cycles @1C.80% DOD

Charge Temperature: 0℃ To 55℃

Discharge Temperature: -20℃ To 60℃

Color: Black

Protection Class: IP67

Highlight:

38.4V Lithium Iron Batteries

100Ah Lithium Iron Batteries

High performance Lithium Iron Batteries

Basic Infomation

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Gallery

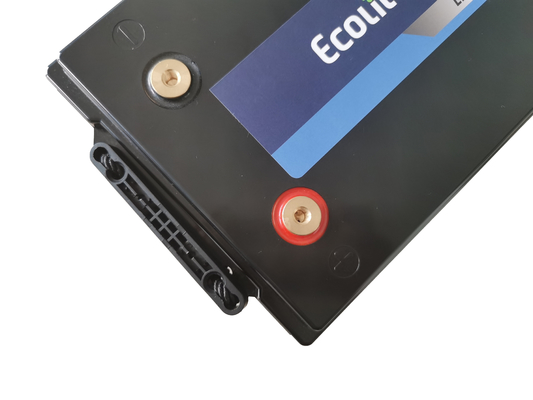

High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv

Product Description

High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv

FEATURES
Lithium lron Phosphate (LiFePO4). The Safes tLithium Technology.Integrated Battery Management System(BMS) protection: Overcharge protection, Overdischarge protection, Overcurrent production.Short circuit protection, Cell voltage self balance.Maximum support 4 in parallel.Support custom Voltage&Capacity,Size.

PERFORMANCE
Long Cycle Life >3000cycles@ 80%DOD High Density,High Discharge Current,High Tempera-ture Range.Low Weight,Maintenance Free. Fast Charging ,Environmentally Friendly.

Electrical Parameters

Electrical Parameters		Mechanical Parameters
Rated Voltage	38.4V	Dimension(WxDxH)	532x207x215mm
Nominal Capacity	100Ah	Dimension(WxDxH)	20.94x 8.15x8.46
Energy	3840Wh	Weight	27kg
Internal Resistance	≤60mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C.80% DOD	Protection Class	IP67
Self Discharge	<5% per Month	Cell Type	LiFePO4 Cell
Max. Modules in Series/Parallel	12S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A(<1S)	Charge Voltage	42.6~43.8V
Recommended Volt. Disconnect	30V	Recommended Float Voltage	39.9~40.2V@100%
BMS Discharge Cut-off Voltage	30V	Recommended Charge Current	50A
Reconnect Voltage	32.4V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	44.4V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		65℃

High-performance Lithium Iron Batteries 38.4V 100Ah Lifepo4 Battery For Rv 1

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
