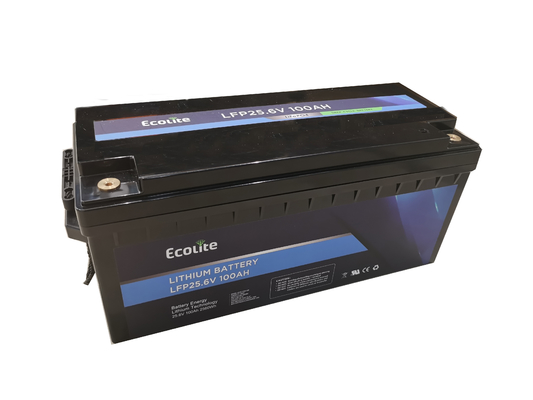

25.6V 100Ah Rv Batteries Solar Home Energy Storage Lifepo4 Battery Lithium Battery Pack

Name: 25.6V 100Ah Rv Batteries Solar Home Energy Storage Lifepo4 Battery Lithium Battery Pack
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: 25.6v 100Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: 25.6v 100Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  25.6V 100Ah Rv Batteries, Lithium Battery Pack Lifepo4 Battery, Solar Home Energy Storage Lifepo4 Battery


Rated Voltage:	25.6V	Rated Capacity:	100Ah
Nominal Energy:	2560wh	Internal Resistance:	≤45mΩ
Efficiency:	≥0.98	Cycle Life:	>4000cycles @1c,80% DOD
Self Discharge:	＜5% Per Month	Product Color:	Black
Protection:	IP65-Built In BMS

Rated Voltage:	25.6V
Rated Capacity:	100Ah
Nominal Energy:	2560wh
Internal Resistance:	≤45mΩ
Efficiency:	≥0.98
Cycle Life:	>4000cycles @1c,80% DOD
Self Discharge:	＜5% Per Month
Product Color:	Black
Protection:	IP65-Built In BMS

Description

25.6V 100Ah Rv Batteries Solar Home Energy Storage Lifepo4 Battery Lithium Battery Pack

Features:

Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.Integrated Battery Management System(BMS).Maximum support 4 in series or 4 in parallel.Protection: IP65.

Performance:

Long Cycle Life＞4000cycles@80%DOD.

High Density,High Discharge Current.

Low Weight,Free Maintenance.

Fast Charging.
Eco-Friendly&Green

25.6V 100Ah Rv Batteries Solar Home Energy Storage Lifepo4 Battery Lithium Battery Pack 0

Three views of product:

25.6V 100Ah Rv Batteries Solar Home Energy Storage Lifepo4 Battery Lithium Battery Pack 1

Electrical Parameters		Mechanical Parameters
Nominal Voltage	25.6V	Dimension(W×D×H)	507×201.5×215mm
Rated Capacity	100Ah	Dimension(W×D×H)	19.96×7.93×8.46''
Nominal Energy	2560Wh	Weight	23kg
Internal Resistance	≤45mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	＞4000cycles@1C,80%DOD	Housing Protection	IP65
Self Discharge	＜5%per Month	Cell Type	LiFePO4 Cell
Max.Modules in Series/parallel	8S/1p	Communication	Bluetooth
Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	150A(＜10s)	Charge Voltage	28.4~29.2V
Recommended Volt.Disconnect	20V	Recommended Float Voltage	26.6~26.8V@100%
BMS Discharge Cut-off Voltage	20V	Recommended Charge Current	50A
Reconnect Voltage	21.6V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off voltage	29.6V
Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60 ℃
BMS High Temperature Cut-off	65℃

25.6V 100Ah Rv Batteries Solar Home Energy Storage Lifepo4 Battery Lithium Battery Pack 3

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
