Customization Deep Cycle 24V 80Ah 150Ah Lithium Battery Replace Lead-acid Batteries

5000
MOQ
Inquiry
Price
Customization Deep Cycle 24V 80Ah 150Ah Lithium Battery Replace Lead-acid Batteries
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 80Ah
Energy: 2048Wh
Resistance: ≤12mΩ
Efficiency: ≥0.98
Battery Cycle Life: ＞8000cycles ,70%SOH
Max.Modules In Series/Parallel: 8S/4P
Size（L×W×H）: 508×219×205mm
Pack Weight: 25kg
Housing Protection: IP65
Highlight:

150Ah Lithium Battery

,

Customization Deep Cycle Lithium Battery

,

24V 80Ah Lithium Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP24V80Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

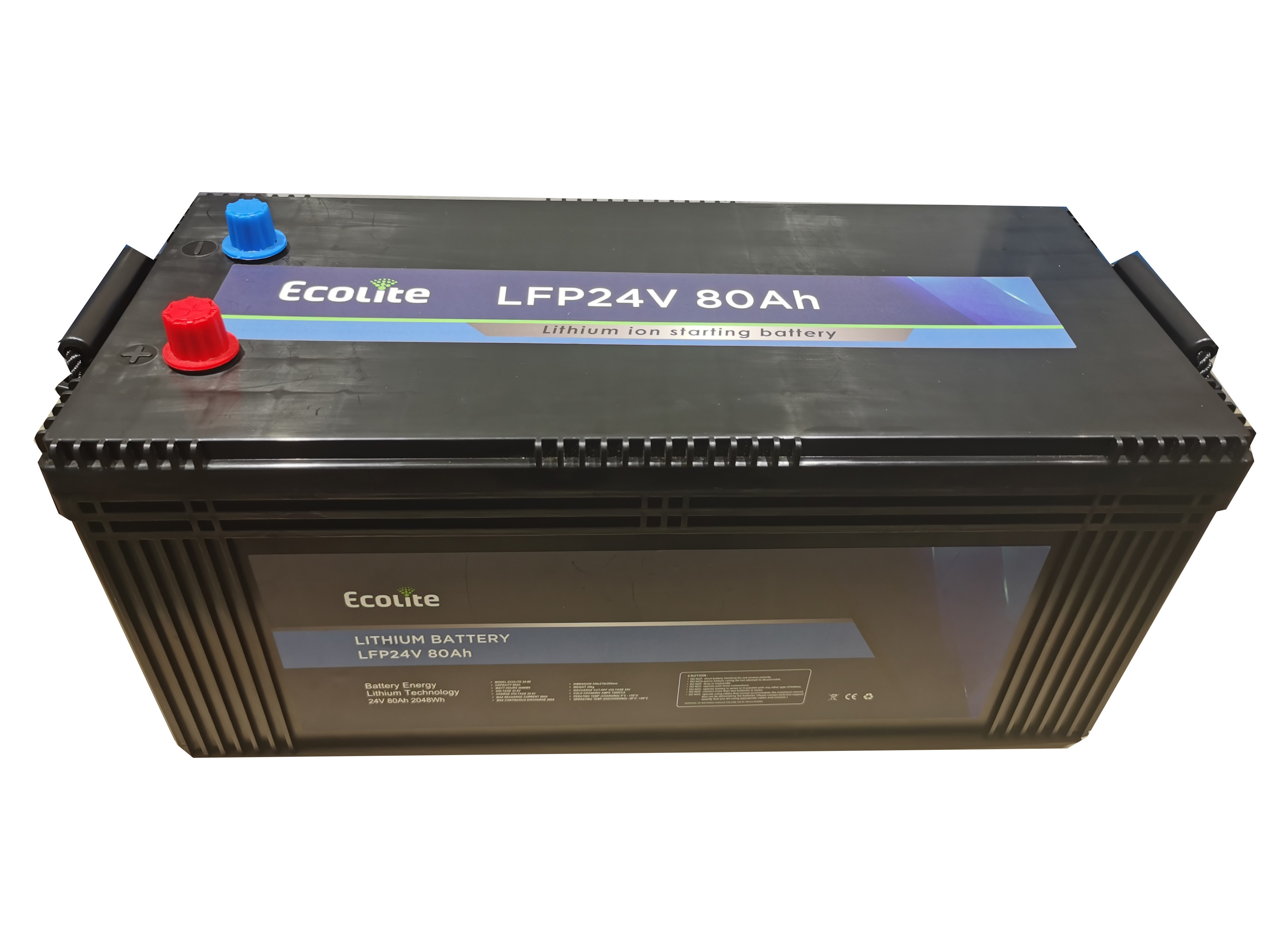

Truck parking air conditioning starter battery LFP24-80(25.6V80Ah)

FEATURES

Fast charging :Fully charged in about 1 hour.
Lightweight :Original lead-acid battery 1/2.
Built in BMS with self balancing function.
Reserve 20% SOC for emergency start-up.
Safety: overcurrent, overvoltage, undervoltage,
short circuit protection

Three Views Of Product
Customization Deep Cycle 24V 80Ah 150Ah Lithium Battery Replace Lead-acid Batteries 0

Specification
Electrical Parameters

Nominal Voltage

 25.6V

Rated Capacity

 80Ah
Energy 2048Wh
Resistance ≤12mΩ
Efficiency ≥0.98
Cycle Life ＞8000cycles,70%SOH
Self Discharge ＜5% per Month
Max.Modules in Series/Parallel 8S/4P




Mechanical Parameters

Dimension(L×W×H)

 508*219*205mm
20.00*8.62*8.07''
Weight 25kg
Terminal Type Post
Battery Housing ABS
Housing protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication CAN



Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 1200A(＜1S)
CCA(Tested by DY-2015) 1200CCA
BMS Discharge Cut-off Voltage 16V
Reconnect Voltage 18.4V



Charge Parameters
Charge Method CC-CV
Charge Voltage 28.4~28.8V
Recommended Float Voltage 27.0~27.6V
Recommended Charge Current 80A
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 29.6V



Temperature Parameters
Discharge Temperature -30℃ to 65℃
Charge Temperature -30 ℃ to 65 ℃
Storage Temperature 0℃ to 35 ℃
BMS High Temperature Cut-off 70℃

Customization Deep Cycle 24V 80Ah 150Ah Lithium Battery Replace Lead-acid Batteries 1

Q1: Are you a manufacturer?
A1: Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A2: Yes,welcome sample order to test and check quality.
Q3:Can you support OEM and ODM service?
A3:Yes,OEM ODM service is available.
Q4: What is your payment term?
A4: T/T,L/C
Q5: Which certificates do you have
A5: We have un38.3,MSDS...etc.
Q6: What is the mode of transport?
A6: usually by sea
