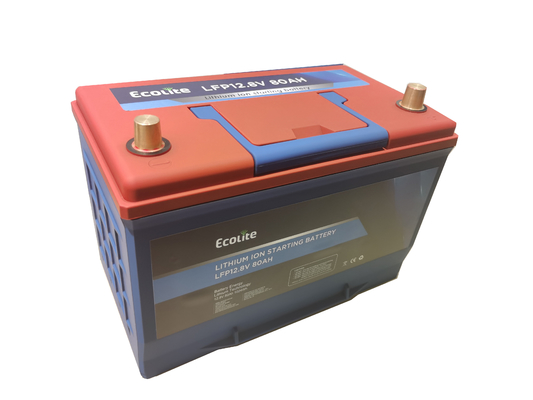

Automotive LiFePO4 Lithium Iron Car Starter Battery With Deep Cycle 1200CCA 12.8V Lithium Car Starter Battery

Name: Automotive LiFePO4 Lithium Iron Car Starter Battery With Deep Cycle 1200CCA 12.8V Lithium Car Starter Battery
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP12-801500
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: LFP12-801500

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 500000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Deep Cycle LiFePO4 Lithium Battery, 12.8V LiFePO4 Lithium Battery, 1200CCA LiFePO4 Lithium Battery


Nominal Voltage:	12.8V	Rated Capacity:	80Ah
Nominal Energy:	1024Wh	Dimension(W×D×H):	306×174×200/220mm
Cell In Series/Parallel:	4S/4P	Cell Type-Chemistry:	LiFePO4 Cell
Self Discharge:	＜2% Per Month	Cycle Life(1C,80%DOD,25℃):	＞2000cycles
CCA(Tested By DY-2015):	1200CCA	Color:	Black

Nominal Voltage:	12.8V
Rated Capacity:	80Ah
Nominal Energy:	1024Wh
Dimension(W×D×H):	306×174×200/220mm
Cell In Series/Parallel:	4S/4P
Cell Type-Chemistry:	LiFePO4 Cell
Self Discharge:	＜2% Per Month
Cycle Life(1C,80%DOD,25℃):	＞2000cycles
CCA(Tested By DY-2015):	1200CCA
Color:	Black

Description

Automotive LiFePO4 Lithium Iron Car Starter Battery With Deep Cycle 1200CCA 12.8V Lithium Car Starter Battery

Automotive LiFePO4 Lithium iron Car Starter Battery With Deep Cycle 1200CCA 12.8V Lithium Car Starter Battery

FEATURES
Low self discharge:<2%/month
High working voltage:>12.8VHigh current starting capacity:30C
Fast charging: About 1hr full charge
Light weight: Primary lead-acid battery 1/2
Long service life:>2000 CyclesBuilt in BMS with self balancing function
Short circuit protection
Over charge and over discharge protection
Over current protection
Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals

Mechanical Parameters
Dimension(W×D×H)	306×174×200/220mm
Dimension(W×D×H)	12.05×6.85×7.87/8.66’’
Weight	11.5kg
Terminal Type	Post
Battery Housing	ABS
Housing Protection	IP65
Cell Type-Chemistry	LiFePO4 Cell
Communication	/

Electrical Parameters
Rated Voltage	12.8V
Rated Capacity	80Ah
Nominal Energy	1024Wh
Internal Resistance	≤12mΩ
Efficiency	≥98%
Cycle Life(1C,80%DOD,25℃)	＞2000cycles
Self Discharge	＜2% per Month
Cell in Series/Parallel	4S/4P

Discharge Parameters
Continuous Discharge Current	200A
Pulse Discharge Current	1200A(≤1S)
CCA(Tested by DY-2015)	1200CCA
BMS Discharge Cut-off Voltage	8V
Reconnect Voltage	9.2V

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.4V
Recommended Float Voltage	13.5~13.8V
Recommended Charge Current	40A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	15.6V

Temperature Parameters
Charge Temperature	0 ℃ / 55 ℃
Discharge Temperature	-20 ℃ / 60 ℃
Storage Temperature	0 ℃ / 35 ℃
BMS High Temperature Cut-off	65℃

Automotive LiFePO4 Lithium Iron Car Starter Battery With Deep Cycle 1200CCA 12.8V Lithium Car Starter Battery 2

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
