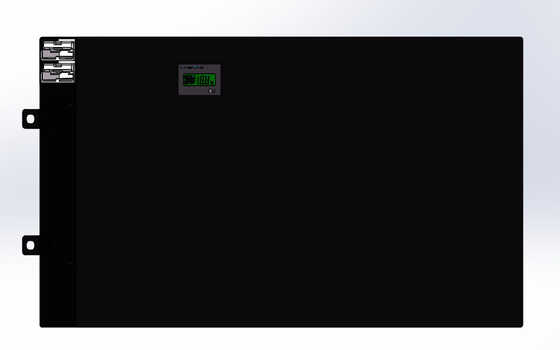

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 100 system

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      12V 100Ah Lithium Battery, Golf Carts Lithium Battery, Yacht Lithium Battery


Nominal Voltage:	12.8V	Nominal Capacity:	100Ah
Energy:	1280Wh	Resistance:	≤20mΩ
Efficiency:	≥98%	Cycle Life:	>4000cycles @80% DOD
Self Discharge:	< 5% Per Month	Housing Protection:	IP30
Cell Type Chemistry:	LiFePO4 Cell	Dimension(W × D×H):	644x275x50mm

Nominal Voltage:	12.8V
Nominal Capacity:	100Ah
Energy:	1280Wh
Resistance:	≤20mΩ
Efficiency:	≥98%
Cycle Life:	>4000cycles @80% DOD
Self Discharge:	< 5% Per Month
Housing Protection:	IP30
Cell Type Chemistry:	LiFePO4 Cell
Dimension(W × D×H):	644x275x50mm

Description

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts

FEATURES	Lithium Iron Phosphate (LiFePO4) . The Safest Lithium Technology. Integrated Battery Management System(BMS) Maximum support 4 in parallel
PERFORMANCE	Long Cycle Life ＞ 4000cycles@80%DOD.
	High Density,High Discharge Current,High Temperature Range. Low Weight,Free Maintenance. Fast Charging.
	Environment Friendly.

ECOLTO(12.8V100Ah)
BATTERY DATA SHEET
Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(W × D×H)	644x275x50mm
Rated Capacity	100Ah		25.35 x 10.83x 1.97"
Energy	1280Wh	Weight	13.5kg
Resistance	≤20mΩ	Terminal Type	120A Anderson
Efficiency	≥98%	Battery Housing	Cold rolled steel sheet
Cycle Life (1c,80%DOD,25°℃)	>4000cycles	Housing Protection	IP30
Self Discharge	< 5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	4S/1P	Communication (Optional)	/

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	160A(<10S)	Charge Voltage	14.2~14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.5~13.8V
BMS Discharge Cut-off Voltage	8.8V	Recommended Charge Current	50A
Reconnect Voltage	10.8V	Maximum Charge Current	100A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	15V

Temperature Parameters
Discharge Temperature		-20 'C to 60 °C
Charge Temperature		0 °C to 55 °C
Storage Temperature		-20 ' to 60 °C
BMS High Temperature Cut-off		65 ℃
Hefei Ecolite Software Co.,Ltd. Add : No.33 Qiuju Road,High-Tech Zone,Hefei City,Anhui Province

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts 5

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts 6

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts 7

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts 8

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts 9

Hefei ECOLTO Energy is a China leading manufacturer of highquality lithium batteries, From cells to automated modules to PACK production lines, we provide you with high-quality products. Wehave our own intellectual property and full-automatic equipment, to meet different customization needs, and provide you with a onestop service.

Deep Cycle Storage Battery LifePO4 12V 100Ah Lithium Battery For Rv Yacht Golf Carts 10

We have our own production workshop. We develop and produce everything from battery cells to Pack assembly. We have been in this industry for more than ten years. We serve every customer with a reliable, trustworthy and pragmatic attitude.
