24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery

5000
MOQ
Inquiry
Price
24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 25.6V
Nominal Capacity: 80Ah
Energy: 2048Wh
Internal Resistance: ≤12mΩ
Efficiency: ≥0.98
Cycle Life: >8000cycles ,70%SOH
Self Discharge: <5% Per Month
Communication: CAN
Charge Temperature: -30 ℃ To 65 ℃
Discharge Temperature: 0℃ To 35 ℃
Highlight:

LiFePO4 Truck Lithium Start-stop Battery

,

24V 80Ah Truck Lithium Start-stop Battery

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP24V80Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

24V80Ah Truck Lithium Start-stop Automotive Batteries for startingtrucks

FEATURES

Fast charging :Fully charged in about 1 hour.
Lightweight :Original lead-acid battery 1/2.
Built in BMS with self balancing function.
Reserve 20% SOC for emergency start-up.
Safety: overcurrent, overvoltage, undervoltage,
short circuit protection

Product Advantages:
When in summer,trucks and RV need to cool the cabinet,so there comes the parking air conditioner, it is a kind of portabnle air caonditioner used in trucks and RVs, or other transportation vehicles.But how to power the air conditioner? Our LiFePO4 lithium battery is widely used for truck starting and parking air conditioning systems. It provides deep cycle capabilities and longer working hours, making it an ideal choice for these applications.

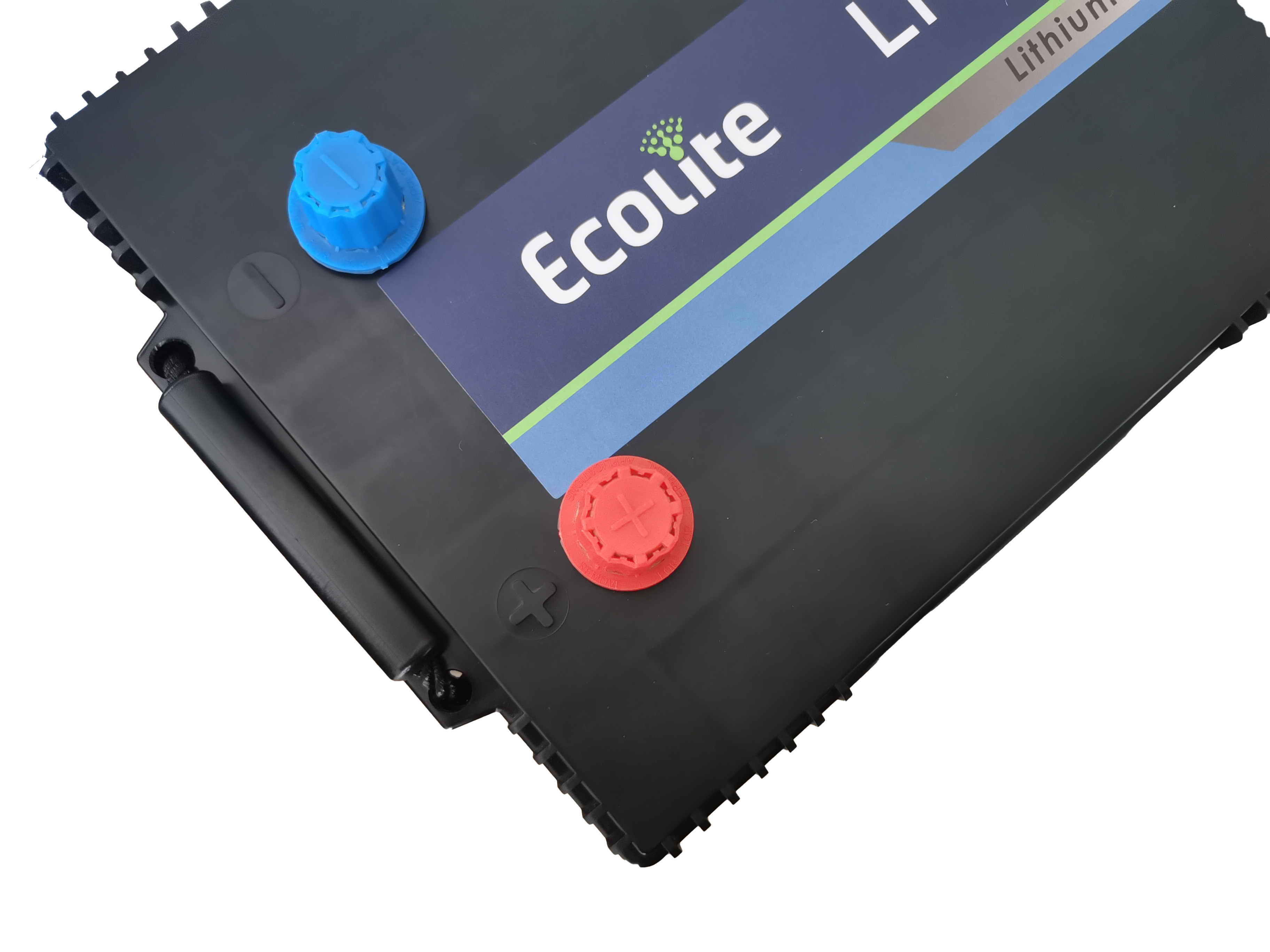

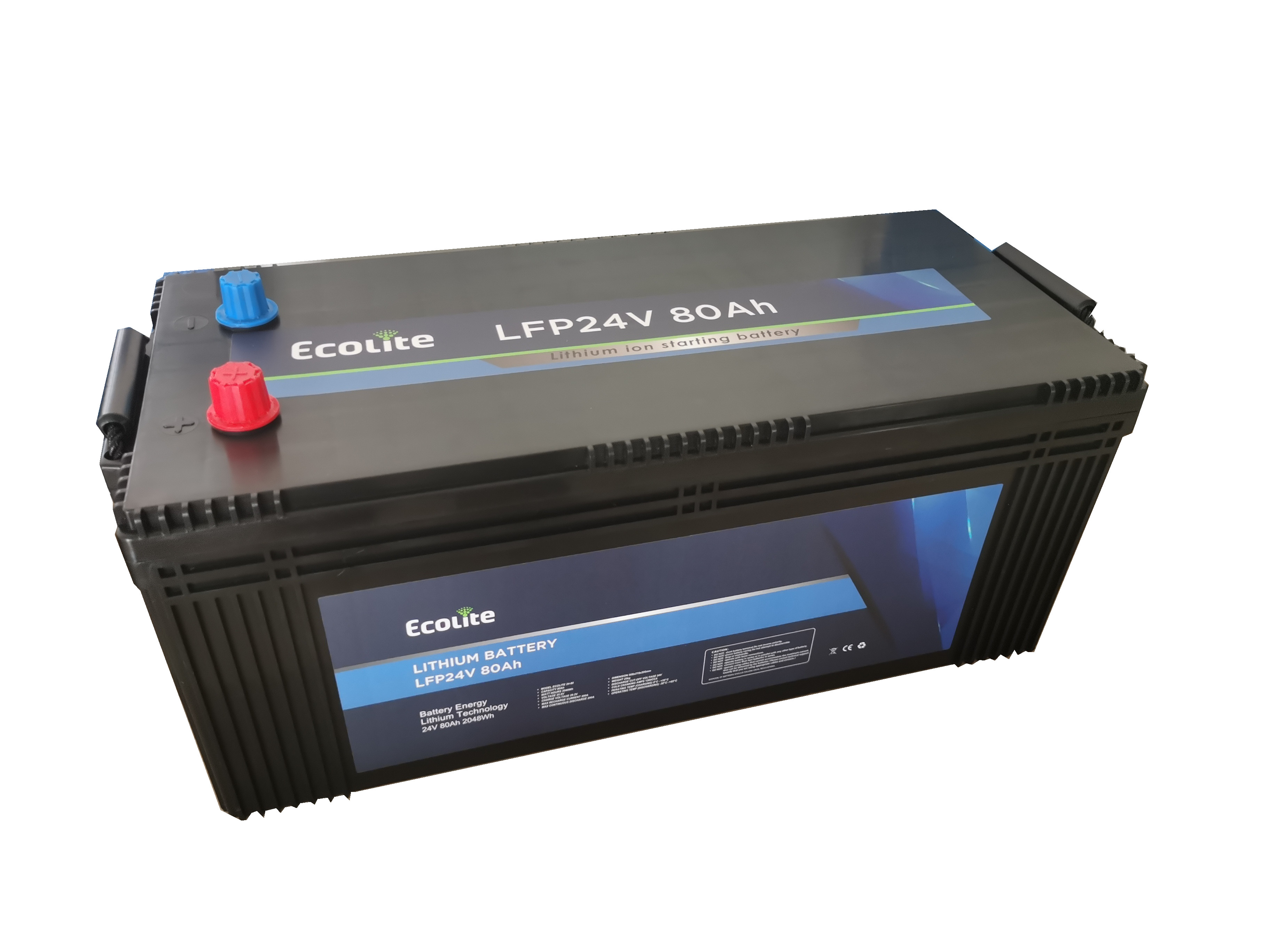

Three Views Of Product
24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 0

24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 1
Electrical Parameters

Rated Voltage

25.6V

Nominal Capacity

80Ah
Nominal Energy 2048Wh
Internal Resistance ≤12mΩ
Efficiency ≥0.98
Cycle Life >8000cycles,70%SOH
Self Discharge <5% per Month
Max.Modules in Series/Parallel 8S/4P




Mechanical Parameters

Dimension(L×W×H)

508*219*205mm
20.00*8.62*8.07''
Weight 25kg
Terminal Type Post
Battery Housing ABS
Housing protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication CAN



Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 1200A(<1S)
CCA(Tested by DY-2015) 1200CCA
BMS Discharge Cut-off Voltage 16V
Reconnect Voltage 18.4V



Charge Parameters
Charge Method CC-CV
Charge Voltage 28.4~28.8V
Recommended Float Voltage 27.0~27.6V
Recommended Charge Current 80A
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 29.6V



Temperature Parameters
Discharge Temperature -30℃ to 65℃
Charge Temperature -30  to 65
Storage Temperature 0℃ to 35
BMS High Temperature Cut-off 70℃



24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 2



24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 3



24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 4

24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 5



24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 6

Hefei ECOLTO Energy is a China leading manufacturer of highquality lithium batteries, From cells to automated modules to PACK production lines, we provide you with high-quality products. Wehave our own intellectual property and full-automatic equipment, to meet different customization needs, and provide you with a onestop service.

24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 7



We have our own production workshop. We develop and produce everything from battery cells to Pack assembly. We have been in this industry for more than ten years. We serve every customer with a reliable, trustworthy and pragmatic attitude.

24V 80Ah Truck Lithium Start-stop Automotive Batteries LiFePO4 LithiumTruck Starting Cranking Battery 8



Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
