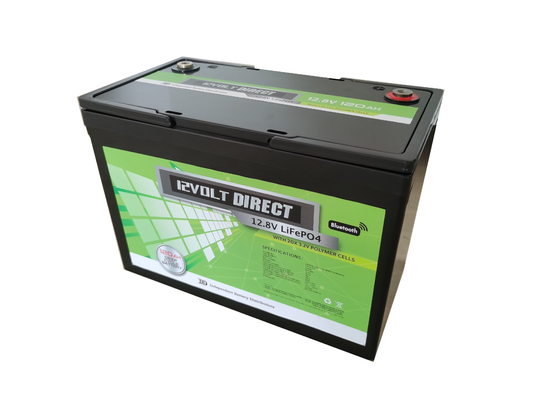

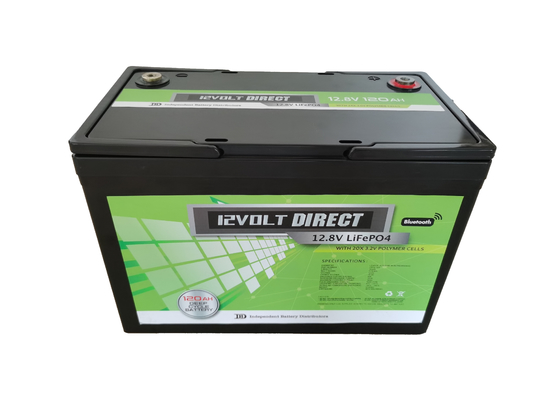

Rechargeable Home Energy Storage Solar RV Marine 12V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery

100Units
MOQ
Inquiry
Price
Rechargeable Home Energy Storage Solar RV Marine 12V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 12.8V 120Ah
Nominal Capacity: 120Ah
Rated Energy: 1536Wh
Internal Resistance: ≤65mΩ
Dimensions: 446x198x208mm
Cyle Life: >4000 Cycles @80% DOD, 1C/1D 25℃
Material System: LiFePO4 Cell
Discharge Temperature: -20 To 60 ℃
Charge Temperature: 0 To 60℃
Warranty: 3 Years
Charge Method: CC-CV
Highlight:

200Ah LiFePO4 Lithium Ion Battery

,

120Ah LiFePO4 Lithium Ion Battery

,

12V 100Ah LiFePO4 Lithium Ion Battery

Basic Infomation
Place of Origin: China
Brand Name: ECOLTO/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: LB12.8V120Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Supply Ability: 2000Units per month
Product Description

Rechargeable Home Energy Storage Solar RV Marine 12.8V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery



FEATURES



Lithium Iron Phosphate (LiFePO4):the Safest Lithium Technology.The LiFePO4 batteries are so much lighter than traditional lead acid batteries.It came packaged well,and it coms with screw caps to help protect the terminal form accidental shorting when in use or while transporting.Integrated Battery Management System(BMS)protection.BMS built in for automatically control to protect from overheat,over voltage and current,Over charge protection, discharge protection,overcurrent protection.etc



PERFORMANC

Long Cycle Life > 4000cycles@80%DOD,IC/ID 25℃High Density,High Discharge Current, High Temperature Range.
Free Maintenance.Fast Charging.Environment Friendly.More stable. More safety.





Cell Performance Charateristics

Rechargeable Home Energy Storage Solar RV Marine 12V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery 0



Specifications

Key Parameters Item 12.8V 120Ah
Voltage 12.8V
Nominal Capacity 120Ah
Rated Energy 1536Wh
Internal Resistance ≤65mΩ
Efficiency 0.99
Cycle Life >4000 cycles @80% DOD,
1C/1D 25℃
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/2P
Dimension(L×W×H) 446x198x208mm
Weight 15.5kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
SOC Display(Optional) /
Continuous Discharge Current 100A
Pulse Discharge Current 160A (<3S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 8.8V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us
Charge Method CC-CV
Charge Voltage 14.4~14.8V
Recommended Float Voltage 13.8V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 15V
Discharge Temperature -20 to 60 ℃
Charge Temperature 0 to 60℃
Storage Temperature -20 to 60 ℃
BMS High Temperature Cut-off 65 ℃





Product and Performance Data

Rechargeable Home Energy Storage Solar RV Marine 12V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery 1



Application

Rechargeable Home Energy Storage Solar RV Marine 12V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery 2

FAQ

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
