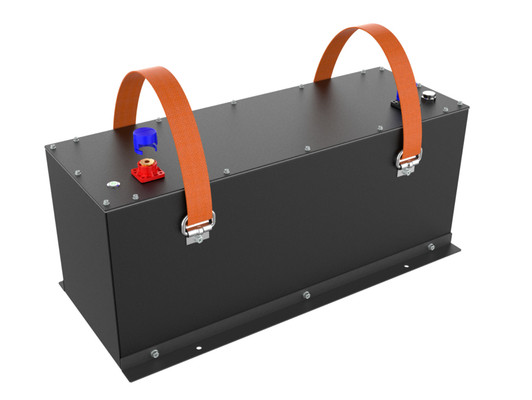

LFP12-460 12.8V 460Ah Lithium Iron Phosphate LiFePO4 Battery For Marine Energy Storage
Appliance
LFP12-600 can be used in Various energy storage equipment.For example, solar energy systems, portable energy storage systems for vehicles, and backup power supplies for ships etc. The product has a wide range of adaptability and is safe and convenient to use.
Features
Lithium Iron phosphate(LiFePO4).
The safest lithium technology.
Integrated Battery Management System(BMS).
Supports up to 4 batteries in series or 4 batteries in parallel.
Performance
Long Cycle life＞8000cycles,Remaining capacity＞70%@25℃,0.5C/0.5C,100%DOD.
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.
Specifications:
| Electrical Parameters |
Mechanical Parameters |
| Nominal Voltage |
12.8V |
Dimension(WxDxH) |
655x290x270mm |
| Rated Capacity |
460Ah |
Dimension(WxDxH) |
25.79''x11.42''x10.63'' |
| Energy |
5888Wh |
Weight |
68kg |
| Resistance |
≤15mΩ |
Terminal Type |
M8 |
| Efficiency |
≥0.98 |
Battery Housing |
SPCC |
| Cycle Life |
>8000cycles @(25℃,0.5C/0.5C,100%DOD,Remaining capacity ＞70%) |
Housing Protection |
IP65 |
| Self Discharge |
<5% per Month |
Cell Type-Chemistry |
LiFePO4 Cell |
| Cell in Series/Parallel |
4S/2P |
Communication |
Bluetooth |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
350A |
Charge Method |
CC-CV |
| Pulse Discharge Current |
450A(<1S) |
Charge Voltage |
14.2-14.6V |
| Recommended Volt. Disconnect |
10V |
Recommended Float Voltage |
13.3~13.4V@100% |
| BMS Discharge Cut-off Voltage |
10V |
Recommended Charge Current |
300A |
| Reconnect Voltage |
10.8V |
Maximum Charge Current |
350A |
| Short Circuit Protection |
100-400uS |
BMS Charge Cut-off Valtage |
14.8V |
| Temperature Parameters |
| Discharge Temperature |
-20℃ to 60℃ |
| Charge Temperature |
0℃ to 60℃ |
| Storage Temperature |
-10℃ to 35℃ |
| BMS High Temperature Cut-off |
65℃ |
Hefei Hongye Lithium Energy Science &Technology Co., Ltd., is located in beautiful Boyan Science &Technology Park of Hefei, which has convenient transportation and well-equipped facilities. Lithium Energy is specialized in R&D,production,sales and technology support of lithium battery. Meanwhile, it has its own intellectual property, which makes it possible to provide different service with different requirement, that's why Lithium Energy gets good reputation.
Lithium Energy covers an area of 14000 square meters, and the current production capacity is 80 thousand per day. The factory covers with full-automatic equipment, with human assistance. We mainly produce LTO and LFP at present, widely applied in energy storage, communication base station, car, etc.
Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.
Q: what is the warranty
A: 1year
Q: what is the lead time ?
A: Depends on your quantity
Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C
Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request
Q: accept OEM order ?
A: 100% customized solution for you .
