Highlight:
105ah Lithium Iron Phosphate Battery Pack
, 80ah Lithium Iron Phosphate Battery Pack
, 48V Lithium Iron Phosphate Battery Pack

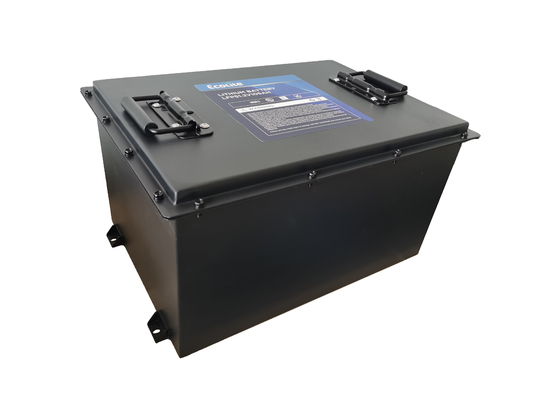

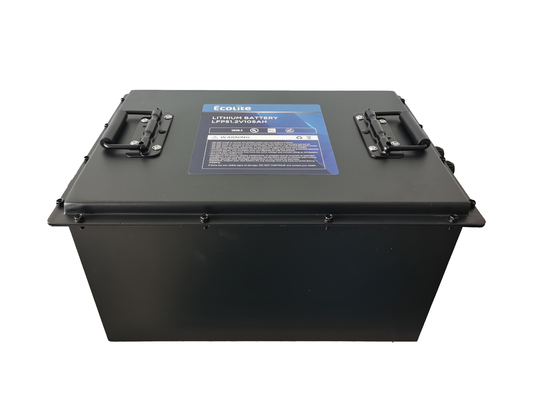

High Permformance 48V 80ah 105ah Lithium Iron Phosphate Battery Pack For Golf Cart
Customization Lithium Iron Phosphate Battery Pack 51.2V 105Ah For Golf Vehicle with BMS
Features
Lithium Iron Phosphate(LiFePO4).
The Safest Lithium Technology.
Integrated Battery Management System(BMS).
Support Parallel connection of multiple batteries.
Performance
Long Cycle Life ＞4000cycles, Remaining capacity ＞ 80%@25℃,0.5C/0.5,100%DOD.
High Density,High Discharge Current,High
Temperature Range. Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.
Specification
| Mechanical Parameters |
| No |
Item |
Data |
| 1 |
Dimension(W×D×H) |
460×334×247mm(18.11×13.15×9.72'') |
| 2 |
Products Weight |
46kg |
| 3 |
Terminal Type |
FCC1020,200A |
| 4 |
Battery Housing |
SPCC |
| 5 |
Housing Protection |
IP67 |
| 6 |
Cell Type-Chemistry |
LifePo4Cell |
| 7 |
Communication |
RS485/CAN |
| Discharge Parameters |
| No |
Item
|
Data |
| 1 |
Continuous Discharge Current |
150A |
| 2 |
Pulse Discharge Current |
250A(＜120S) |
| 3 |
Recommended Volt. Disconnect |
40V |
| 4 |
BMS Discharge Cut-off Voltage |
40V |
| 5 |
Reconnect Voltage |
43.2V |
| 6 |
Short Circuit Protection |
300-800us |
| Charge Parameters |
| No |
Item
|
Data |
| 1 |
Charge Method |
CC-CV |
| 2 |
Charge Voltage |
56.8～58.4V |
| 3 |
Recommended Float Voltage |
53.2~53.6V@100% |
| 4 |
Recommended Charge Current |
52.5A |
| 5 |
Maximum Charge Current |
105A |
| 6 |
BMS Charge Cut-off Voltage |
58.4V |
| Temperature Parameters |
|
No
|
Item |
Data |
| 1 |
Discharge Temperature |
-30 ℃ to 65 ℃ |
| 2 |
Charge Temperature |
-30 ℃to 65 ℃,Start heating at ＜0℃ |
| 3 |
Storage Temperature |
0 ℃ to 35 ℃ |
| 4 |
BMS High Temperature Cut-off |
65℃ |
The product is equipped with VENT, METER, positive electrode interface, RS485, negative electrode interface, and MAIN SWITCH function interface.
VENT:Used to discharge gas inside the battery to ensure stable internal pressure of the battery during use.
METER:Generally, it is connected to a battery power display meter to facilitate real-time viewing of the power status of the lithium battery.
+:Used to connect external circuits to realize functions such as external power supply.
-:Used to connect external circuits to realize functions such as external power supply.
MAIN SWITCH:Main switch interface, used to control the on and off of the battery system.
FAQ
Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.
Q: what is the warranty
A: 1year
Q: what is the lead time ?
A: Depends on your quantity
Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C
Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request
Q: accept OEM order ?
A: 100% customized solution for you .
