LFP LiFePO4 Lithium Battery 38.4V 100Ah 3840Wh Lithium Iron Phosphate Batteries With BMS

5000
MOQ
Inquiry
Price
LFP LiFePO4 Lithium Battery 38.4V 100Ah 3840Wh Lithium Iron Phosphate Batteries With BMS
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 38.4V
Capacity: 100Ah
Energy: 3840Wh
Resistance: ≤60mΩ
Efficiency: ≥0.98
Cycle Life: >3000cycles @1C,80% DOD
Battery Housing: ABS
Terminal Type: M8
Dimension(W×D×H): 532×207×215mm
Weight: 27kg
Highlight:

3840Wh LiFePO4 Lithium Battery

,

38.4V 100Ah LiFePO4 Lithium Battery

,

LFP LiFePO4 Lithium Battery

Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 5000 Units per month
Product Description

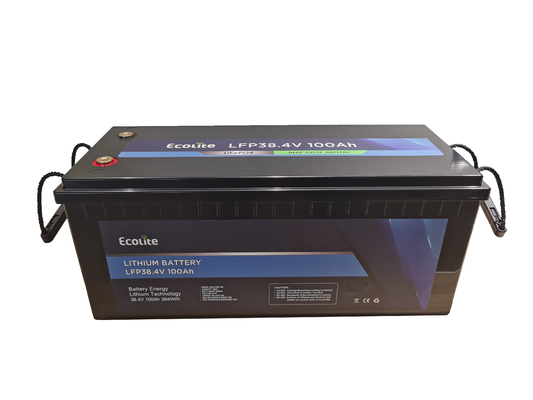

Ecolite LFP36-100(38.4V 100Ah) Lithium lron Phosphate (LiFePO4)

Features

Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.

Integrated Battery Management System(BMS).

Maximum support 4 in parallel.

Performance

Long Cycle Life >3000cycle @ 80%DOD.

High Density,High Discharge Current,High Temperature Range.

Low Weight,Maintenance Free.Fast Charging.Environmentally Friendly.

Specifications

Electrical Parameters Mechanical Parameters
Nominal Voltage 38.4V Dimension(WxDxH) 532x207x215mm
Rated Capacity 100Ah Dimension(WxDxH) 20.94x 8.15x 8.46
Energy 3840Wh Weight 27kg
Resistance ≤60mΩ Terminal Type M8
Efficiency ≥0.98 Battery Housing ABS
Cycle Life >3000cycles @1C,80% DOD Housing Protection IP67
Self Discharge <5% per Month Cell Type-Chemistry LiFePO4 Cell
Cell in Series/Parallel 12S/1P Communication Bluetooth



Discharge Parameters Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 200A (<1S) Charge Voltage 42.6~43.8V
Recommended Volt. Disconnect 30V Recommended Float Voltage 39.9~40.2V@100%
BMS Discharge Cut-off Voltage 30V Recommended Charge Current 50A
Reconnect Voltage 32.4V Maximum Charge Current 100A
Short Circuit Protection 300-800uS BMS Charge Cut-off Voltage 44.4V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃



About this product

  • Application:Suitable for golf carts, RVs, boats and other equipment as backup power.
  • Reduce your total cost of ownership:Ecolite LFP36-100 dosen‘t need Replacement during use or regular maintenance,The service life is 3-4 times that of ordinary lead-acid batteries.If the lifetime cost per kWh is 0.1 USD, the operating cost can be reduced by about 100 USD per year.
  • Smart battery management system:The lithium battery has a built-in intelligent BMS, providing overcharge, over-discharge, over-current and short-circuit protection. It has an excellent self-discharge rate,While ensuring safety, it also allows you to easily cope with any environment and situation anytime, anywhere.
  • The perfect replacement for lead-acid batteries:36V golf cart lithium battery is the perfect choice for lead-acid battery conversion and upgrade. Compared with ordinary lead-acid batteries, it is 30% smaller and 63% lighter, and the energy consumption density is increased by 3-5 times, which improves the maneuverability and performance of golf carts. Lithium iron phosphate batteries do not contain mercury, lead and other harmful chemicals, are environmentally friendly, completely maintenance-free, and do not need to add water. Long-term use is more valuable!
  • Professional customer service:ECOLITE provides professional technical support and online customer service with quick feedback within 24 hours. If you have any product-related questions or problems, please contact us directly, the ECOLITE support team is always at your service.

LFP LiFePO4 Lithium Battery 38.4V 100Ah 3840Wh Lithium Iron Phosphate Batteries With BMS 0

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: 2 years
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
