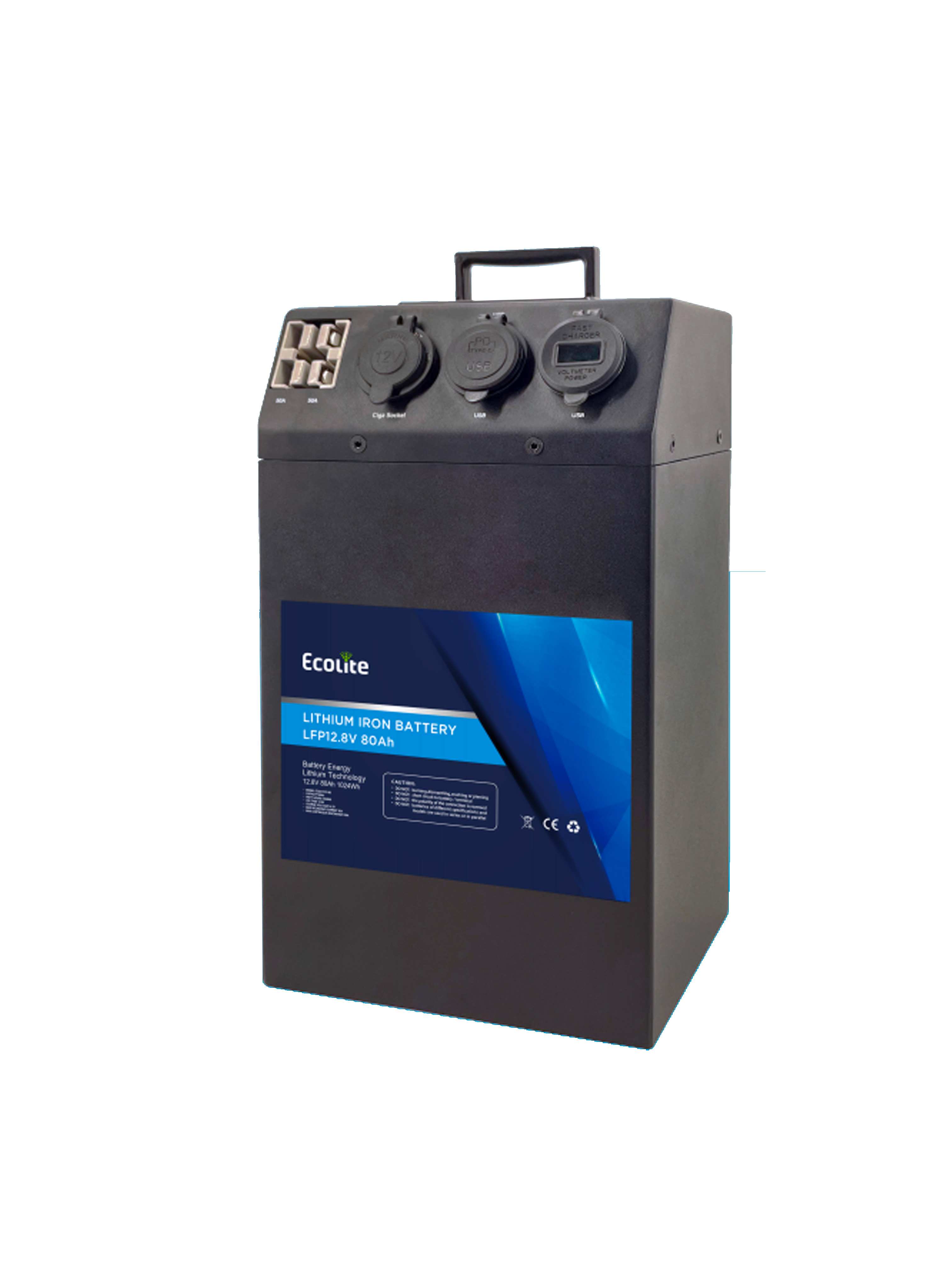

Product Description:
Each custom lithium battery pack has built in BMS from over-discharge, over-charge, short circuit etc….
LiFePO4 battery is environmentally friendly, which will not destroy the ecological environment, also has no memory effects.
Excellent discharge characteristics
Have low internal resistance and high flat voltage characteristics during strong current discharge, which ensures a wider application field.
Electrical Parameters | |
Nominal Voltage | 12.8V |
Rated Capacity | 80Ah |
Energy | 1024Wh |
Resistance | ≤20mΩ |
Efficiency | ≥0.98 |
Cycle Life(25℃,0.5C/1C,100%DOD) | >2000cycles Remaining capacity>80% |
Self Discharge | <5% per Month |
Cell in Series/Parallel | 4S/1P |
Mechanical Parameters | |
Dimension(L×W×H) | 181×136×320mm |
Dimension(L×W×H) | 7.12×5.35×12.60'' |
Weight | 12kg |
Terminal Type | Interface parameters |
Battery Housing | SPCC |
Housing Protection | IP32 |
Cell Type-Chemistry | LiFePO4 Cell |
Communication | Bluetooth |
Discharge Parameters | |
Continuous Discharge Current | 80A |
Pulse Discharge Current | 150A(<0.5S) |
Recommended Volt.Disconnect | 10V |
BMS Discharge Cut-off Voltage | 10V |
Reconnect Voltage | 10.8V |
Short Circuit Protection | 300-800us |
Charge Parameters | |
Charge Method | CC-CV |
Charge Voltage | 14.2~14.6V |
Recommended Float Voltage | 13.3~13.4V@100% |
Recommended Charge Current | 40A |
Maximum Charge Current | 80A |
BMS Charge Cut-off Voltage | 14.8V |
Interface Parameters | |
50A Anderson(grey)×2 | Input/output DC10~DC14.6V Max 50A |
Ciga Socket | Output DC10V~DC14.6V,Max10A |
USB-A+C Output |
USB-A Max18W,5V3A,9V2A,12V1.5A USB-C Max36W,5V3A,9V3A,12V3A |
USB-C+C Output | 5V3A,9V3A,12V3A,Max36W |
USB-C Charge | MAX60W |
DC5525 Charge | DC12V~DC24V,Max5A |
Temperature Parameters | |
Discharge Temperature | -20℃ to55℃ |
Charge Temperature | 0℃ to 50℃ |
Storage Temperature | -20℃ to 55℃ |
BMS High Temperature Cut-off | 60℃ |
Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
