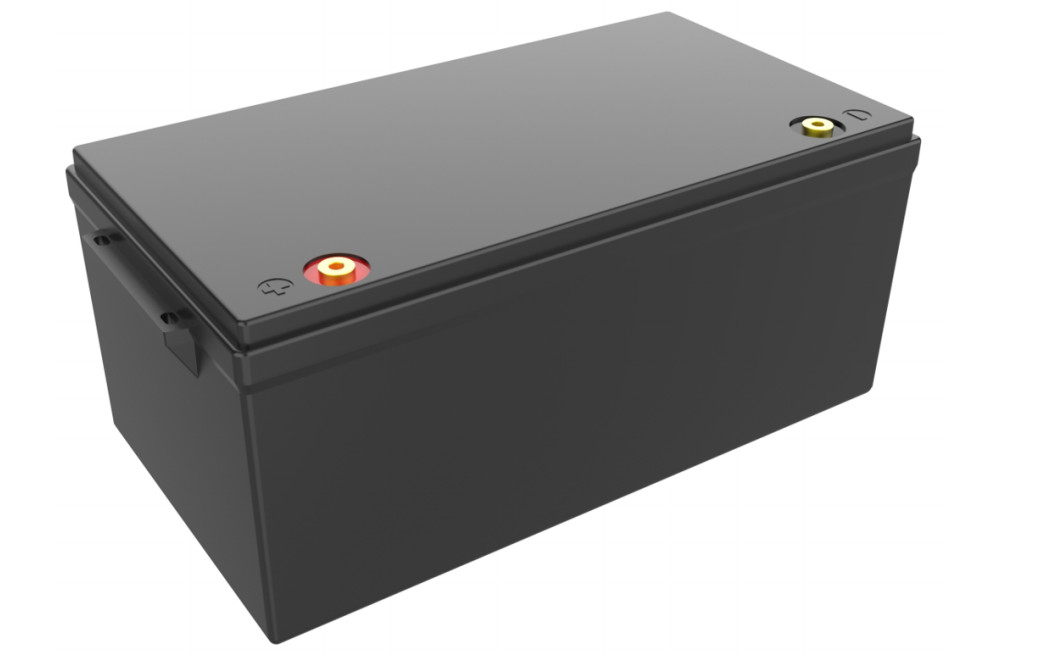

LFP24-200 12.8V 200Ah Deep cycle Lithium Iron Phosphate LiFePO4 Battery
Appliance
LFP24-200 can be used in marine, RV, household or commercial energy storage equipment. The product has a wide range of adaptability and is safe and convenient to use. The lithium-ion raw material has better charging and discharging efficiency than traditional lead-acid batteries.
Features
Lithium Iron phosphate(LiFePO4).
The safest lithium technology.
Integrated Battery Management System(BMS).
Performance
Long Cycle life＞6000cycles,Remaining capacity＞80%@25℃,0.5C/0.5C,100%DOD.
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.
Specifications:
| Electrical Parameters |
Mechanical Parameters |
| Nominal Voltage |
25.6V |
Dimension(WxDxH) |
520x269x220mm |
| Rated Capacity |
200Ah |
Dimension(WxDxH) |
20.47''x10.59''x8.66'' |
| Energy |
5120Wh |
Weight |
40kg |
| Resistance |
≤20mΩ |
Terminal Type |
M8 |
| Efficiency |
≥0.98 |
Battery Housing |
ABS |
| Cycle Life |
>6000cycles @(25℃,0.5C/0.5C,100%DOD,Remaining capacity＞80%) |
Housing Protection |
IP65 |
| Self Discharge |
<5% per Month |
Cell Type-Chemistry |
LiFePO4 Cell |
| Cell in Series/Parallel |
8S/1P |
Communication |
Bluetooth |
| Discharge Parameters |
Charge Parameters |
| Continuous Discharge Current |
200A |
Charge Method |
CC-CV |
| Pulse Discharge Current |
400A(<1S) |
Charge Voltage |
28.4V-29.2V |
| Recommended Volt. Disconnect |
20V |
Recommended Float Voltage |
26.6V~26.8V@100% |
| BMS Discharge Cut-off Voltage |
20V |
Recommended Charge Current |
100A |
| Reconnect Voltage |
21.6V |
Maximum Charge Current |
200A |
| Short Circuit Protection |
100-400uS |
BMS Charge Cut-off Valtage |
V |
| Temperature Parameters |
| Discharge Temperature |
-20℃ to 60℃ |
| Charge Temperature |
0℃ to 60℃ |
| Storage Temperature |
-10℃ to 35℃ |
| BMS High Temperature Cut-off |
65℃ |
This 12V 200Ah LiFePO4 battery is built with automotive-grade LiFePO4 cells, offering an ultra-long cycle life (＞6000 cycles) and a 10-year service life. Equipped with a 200A intelligent Battery Management System (BMS), it provides protection against overcharge, overdischarge, overcurrent, short circuit, and temperature extremes, supporting operation from -20℃ to 60℃.
With an energy density of 2560Wh and a lightweight design, it supports 0.5C-1C fast charging (100-200A) and is compatible with lead-acid chargers. The battery can be paralleled for up to 800Ah capacity or series-connected to 48V, making it ideal for RVs, solar energy storage, marine applications, and off-grid systems. Certified by UL/FCC, it is eco-friendly, non-toxic, and features a self-discharge rate of less than 5% per month, delivering reliable energy storage solutions.
Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.
Q: what is the warranty
A: 1~2year
Q: what is the lead time ?
A: Depends on your quantity
Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C
Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request
Q: accept OEM order ?
A: 100% customized solution for you .
