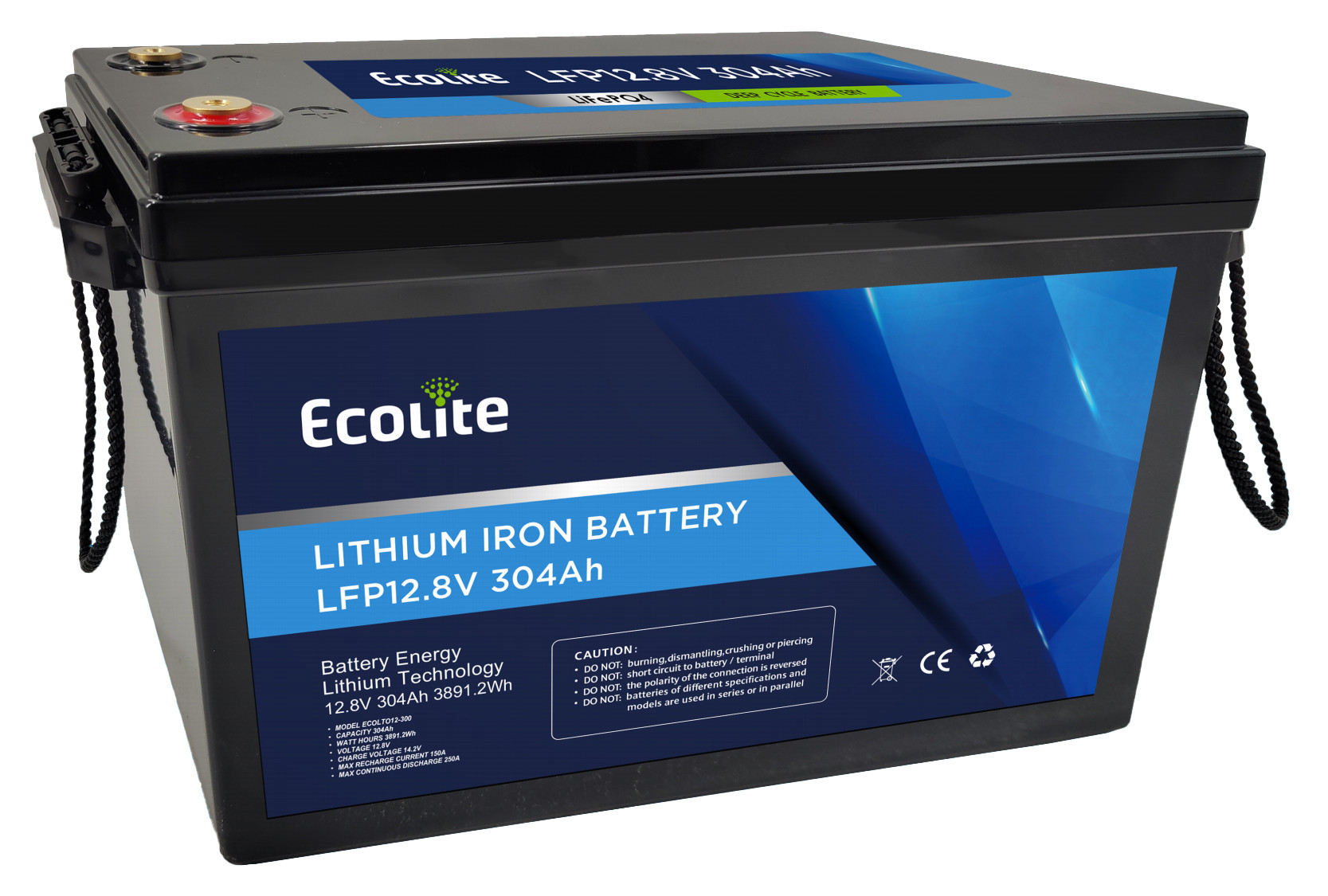

LFP12-300 12.8V 304Ah Lithium Iron Phosphate Fast Charging LiFePO4 Battery

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 5000 Units per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Fast Charging LiFePO4 Battery, 12.8V 304Ah LiFePO4 Battery


Nominal Voltage:	12.8V	Rated Capacity:	304Ah
Energy:	3891.2Wh	Resistance:	≤30mΩ
Efficiency:	≥0.98	Cycle Life:	>3000cycles @1C,80% DOD
Dimension（W×D×H）:	345×190×245mm	Weight:	26kg
Battery Housing:	M8

Nominal Voltage:	12.8V
Rated Capacity:	304Ah
Energy:	3891.2Wh
Resistance:	≤30mΩ
Efficiency:	≥0.98
Cycle Life:	>3000cycles @1C,80% DOD
Dimension（W×D×H）:	345×190×245mm
Weight:	26kg
Battery Housing:	M8

Description

LFP12-300 12.8V 304Ah Lithium Iron Phosphate Fast Charging LiFePO4 Battery

ECOLITE LFP12-300 12.8V 304Ah Lithium lron Phosphate (LiFePO4) Battery

FEATURES

Lithium lron Phosphate (LiFePO4). The Safest LithiumTechnology.

Integrated Battery Management System(BMS)

Maximum support 4 in series or 4 in paralel.

PERFORMANCE

Extended Cycle Life: ＞3,000 cycles at 80% Depth of Discharge (DOD),

High Energy Density for space-efficient energy storage,

High Continuous Discharge Current capability,

Wide Temperature Operating Range (-20°C to 60°C),

Lightweight Construction for easy installation,

Maintenance-Free Operation,

Fast Charging Technology (supports 1C to 3C charging),

Environmentally Friendly & Non-Hazardous,

Engineered with Lithium Iron Phosphate (LFP) Technology for safe and stable performance.

SPECIFICATION

Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(WxDxH)	345x190x245mm
Rated Capacity	304Ah	Dimension(WxDxH)	13.58x7.48x9.65
Energy	3891.2Wh	Weight	26kg
Resistance	≤30mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP67
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	250A	Charge Method	CC-CV
Pulse Discharge Current	400A(<10S)	Charge Voltage	14.2-14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	150A
Reconnect Voltage	10.8V	Maximum Charge Current	250A
Short Circuit Protection	300-800uS	BMS Charge Cut-off Valtage	14.8V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		65℃

CUSTOM BATTERY SOLUTION

ELB offer an extensive range of battery sizes and configurations that support various applications. For those applications that require unique power requirements our expert engineers can help design, develop, test and manufacture custom battery solutions for the specific needs of almost any application. Contact us today for more information on our custom battery solutions.
