Home /Products/LiFePO4 Lithium Battery/High-Capacity Starting Battery 24V 150Ah Lithium Battery For Long-Haul Trucks

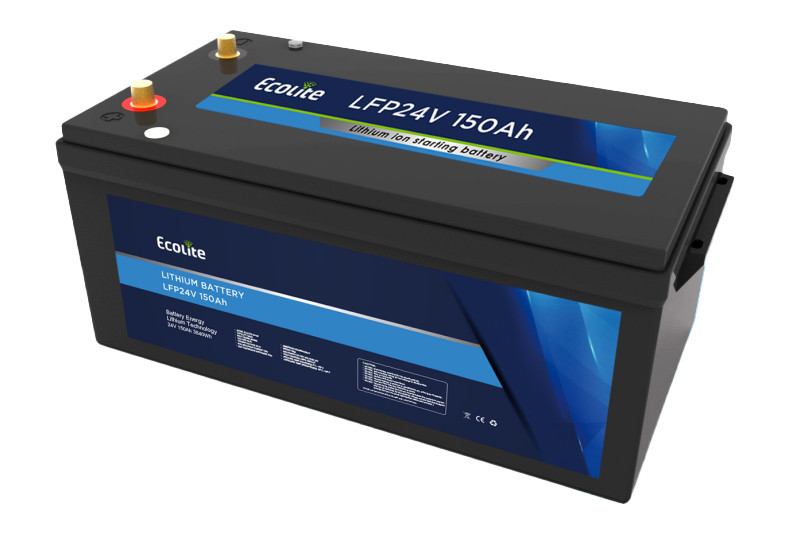

High-Capacity Starting Battery 24V 150Ah Lithium Battery For Long-Haul Trucks

5000
MOQ
Inquiry
Price
High-Capacity Starting Battery 24V 150Ah Lithium Battery For Long-Haul Trucks
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 25.6V
Rated Capacity: 80Ah
Energy: 2048Wh
Resistance: ≤12mΩ
Efficiency: ≥0.98
Cycle Life: ＞2000cycles ,80% Of Initial Capacity
Max.Modules In Series/Parallel: 8S/1P
Size（L×W×H）: 520×269×220mm
Weight: 29kg
Terminal Type: Post
Highlight:

24V 150Ah Lithium Battery

,

High Capacity Lithium Battery

,

Long Haul Trucks Lithium Battery
Basic Infomation
Place of Origin: China
Brand Name: Ecolite/OEM/ODM
Model Number: LFP24V80Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 500000
Product Description

Truck parking air conditioning starter battery LFP24-80(25.6V80Ah)

APPLICATION

Lithium Ion Battery for Heavy Truck is suitable for electric trucks, electric coaches, construction equipment and other engineering vehicles. Our lithium ion battery for heavy trucks can get the work done perfectly.



FEATURES

Rapid Charging Technology: Full charge achievable in approximately 1 hour.

Lightweight Design: Weight reduced by 50% compared to traditional lead-acid batteries.

Extended Lifespan: Rated for 2,000+ charge/discharge cycles.

Intelligent BMS System: Built-in Battery Management System (BMS) with automatic cell balancing technology.

Emergency Reserve Function: Pre-reserved 20% State of Charge (SOC) for critical vehicle restarts.

Comprehensive Safety Protection:

Overcurrent/overvoltage/undervoltage protection

Short-circuit prevention

Thermal runaway safeguard

Extreme Environment Adaptability: Operational temperature range of -40°C to +60°C.

Maintenance-Free Operation: No electrolyte replacement or periodic servicing required.

Sustainability Compliance: Environmentally friendly design, free of heavy metals and compliant with global recycling standards.


Three Views Of Product
High-Capacity Starting Battery 24V 150Ah Lithium Battery For Long-Haul Trucks 0

Specification
Electrical Parameters

Nominal Voltage

 25.6V

Rated Capacity

 150Ah
Energy 3840Wh
Resistance ≤12mΩ
Efficiency ≥0.98
Cycle Life ＞2000cycles,80% of initial capacity
Self Discharge ＜5% per Month
Max.Modules in Series/Parallel 8S/4P




Mechanical Parameters

Dimension(L×W×H)

 520*269*220mm
20.47*10.59*8.66''
Weight 29kg
Terminal Type Post
Battery Housing ABS
Housing protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication CAN



24V Parking air conditioning starter battery
Model LFP24V150Ah
Nominal Voltage 25.6V
Battery Capacity 150Ah 2840Wh
Maximum Discharge Current 150A
Maximum Instantaneous Current 1500A
Maximum Charging Current 150A
Maximum Charging Voltage 29.2V
Working Temperature Range -20℃~65℃
Protection Class IP65
Weight 29kg
Dimensions 520×269×220mm



High-Capacity Starting Battery 24V 150Ah Lithium Battery For Long-Haul Trucks 1

Q1: Are you a manufacturer?
A1: Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A2: Yes,welcome sample order to test and check quality.
Q3:Can you support OEM and ODM service?
A3:Yes,OEM ODM service is available.
Q4: What is your payment term?
A4: T/T,L/C
Q5: Which certificates do you have
A5: We have un38.3,MSDS...etc.
Q6: What is the mode of transport?
A6: usually by sea
Fill out our short form and we will be contacting you shortly to see we how can provide a solution to your needs!
