Highlight:
Fast Charging Lithium Iron Battery
, 48V 50Ah Lithium Iron Battery
, Warehouse Logistics AGV Lithium Iron Battery
Fast Charging LFP 48V 50Ah Lithium Iron Battery For Warehouse Logistics AGV
Lithium Iron Battery For Warehouse Logistics AGV LFP 48V 50Ah
APPLICATION
Designed to revolutionize material handling efficiency, our lithium iron phosphate (LiFePO₄) battery system with integrated Battery Management System (BMS) delivers unmatched performance, safety, and cost savings for Automated Guided Vehicle (AGV) fleets.
Ideal Applications
Warehouse AGV fleets
Automated distribution centers
Manufacturing assembly lines
Cold chain logistics systems
Outdoor yard tractors
PERFORMANCE
Long Cycle Life >4000cycles,
Remaining capacity>80%@25'C,0.5C/0.5,100%DOD.
High Density,High Discharge Current,HighTemperature Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly

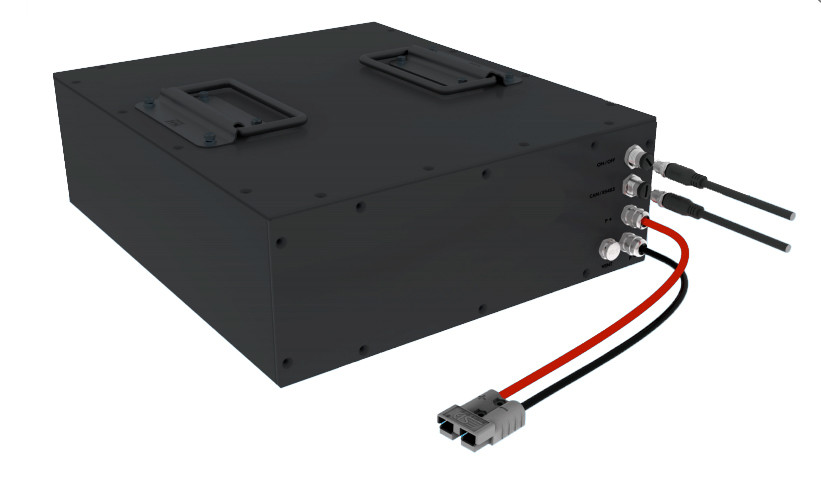

Three Views Of Product
Specification
| Electrical Parameters |
|
Nominal Voltage
|
51.2V |
|
Rated Capacity
|
50Ah |
| Energy |
2560Wh |
| Resistance |
≤35mΩ |
| Efficiency |
≥0.98 |
| Cycle Life |
＞4000cycles Remaining capacity＞80% |
| Self Discharge |
＜3% per Month |
| Max.Modules in Series/Parallel |
16S/1P |
| Mechanical Parameters |
|
Dimension(L×W×H)
|
420*360*130mm |
| 14.17*16.54*5.12'' |
| Weight |
29kg |
| Terminal Type |
SB50A |
| Battery Housing |
SPCC |
| Housing protection |
IP65 |
| Cell Type-Chemistry |
LiFePO4 Cell |
| Communication |
RS485/CAN |
| Discharge Parameters |
| Continuous Discharge Current |
50A |
| Pulse Discharge Current |
150A(<1S) |
| Recommended Volt. Disconnect |
40V |
| BMS Discharge Cut-off Voltage |
40V |
| Reconnect Voltage |
43.2V |
| Short Circuit Protection |
300-800us |
| Charge Parameters |
| Charge Method |
CC-CV |
| Charge Voltage |
56.8~58.4V |
| Recommended Float Voltage |
53.2~53.6V@100% |
| Recommended Charge Current |
25A |
| Maximum Charge Current |
50A |
| BMS Charge Cut-off Voltage |
58.4V |
| Temperature Parameters |
| Discharge Temperature |
-20℃ to 60℃ |
| Charge Temperature |
0℃ to 55℃ |
| Storage Temperature |
-20℃ to 35℃ |
| BMS High Temperature Cut-off |
65℃ |
Q1: Are you a manufacturer?
A1: Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A2: Yes,welcome sample order to test and check quality.
Q3:Can you support OEM and ODM service?
A3:Yes,OEM ODM service is available.
Q4: What is your payment term?
A4: T/T,L/C
Q5: Which certificates do you have
A5: We have un38.3,MSDS...etc.
Q6: What is the mode of transport?
A6: usually by sea
