25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Certification: UN38.3 MSDS CE

Model Number: 25.6v 100Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 units/month

Get Best Price
Contact Now
Specifications
Highlight:

25.6V LiFePO4 Battery

,

100Ah LiFePO4 Battery

,

Rechargeable Lithium Batteries

Battery Voltage:
25.6V
Rated Capacity:
100Ah
Energy:
2560wh
Internal Resistance:
≤45mΩ
Efficiency:
≥0.98
Cycle Life:
>4000cycles @1c,80% DOD
Self Discharge:
<5% Per Month
Product Color:
Black
Protection:
IP65
Continuous Discharge Current:
100A
Pulse Discharge Current:
150A(<10s)
Discharge Temperature:
-20℃ To 60℃
Charge Temperature:
0℃ To 55℃
Maximum Charge Current:
100A
Charge Method:
CC-CV
Cell Type:
LiFePO4 Cell
BMS High Temperature Cut-off:
65℃
Battery Voltage:
25.6V
Rated Capacity:
100Ah
Energy:
2560wh
Internal Resistance:
≤45mΩ
Efficiency:
≥0.98
Cycle Life:
>4000cycles @1c,80% DOD
Self Discharge:
<5% Per Month
Product Color:
Black
Protection:
IP65
Continuous Discharge Current:
100A
Pulse Discharge Current:
150A(<10s)
Discharge Temperature:
-20℃ To 60℃
Charge Temperature:
0℃ To 55℃
Maximum Charge Current:
100A
Charge Method:
CC-CV
Cell Type:
LiFePO4 Cell
BMS High Temperature Cut-off:
65℃
Description
25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom

25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom​



Battery Features:

Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating. Light weight: about 40%~50% of the weight of lead-acid batteries. Support for series application extensions
(up to 51.2V) and two parallels. High Capacity and Efficiency.Reliable and Long-lasting.Easy Installation and Maintenance.

Performance:

25.6V 100Ah lithium battery manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and
greater power. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. Supporting expansion for up to 2 series & 4 parallel and suitable for electric energy storage.

Our LiFePO4 lithium iron batteries provides 4000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. Helping to minimize replacement cost and reduce total cost of ownership. And the weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity, so you can carry it more easily.

The stable Lithium Iron Phosphate chemical structure makes LiFePO4 battery not burn or explode even at high temperature, short circuit, impact and drop. Highest-level safety based on UL Testing Certificate for the cell inside the battery. And it does not contain any heavy metals and rare metals and is more environmentally friendly, which called green battery.

With no acid in the lithium ion battery, you're able to safely mount in any position. This makes li-ion batteries perfect for marine, RV, campers, travel trailer, outdoor camping custiom and off-grid applications!




25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom 0

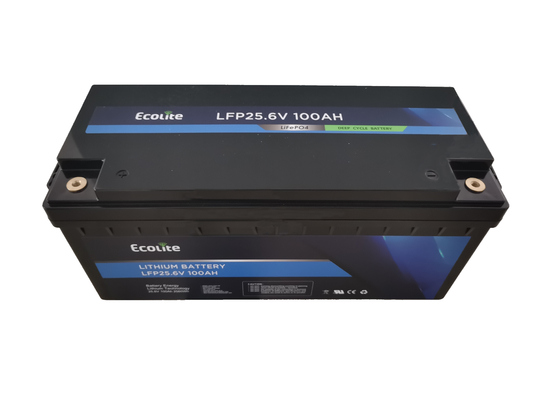

Three views of product:


25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom 1

25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom 2



Electrical Parameters Mechanical Parameters
Nominal Voltage 25.6V Dimension(W×D×H) 507×201.5×215mm
 Rated Capacity 100Ah Dimension(W×D×H) 19.96×7.93×8.46''
 Nominal Energy 2560Wh Weight 23kg
Internal Resistance ≤45mΩ Terminal Type M8
Efficiency ≥0.98 Battery Housing ABS
Cycle Life >4000cycles@1C,80%DOD Housing Protection IP65
Self Discharge <5%per Month Cell Type LiFePO4 Cell
Max.Modules in Series/parallel 8S/1p Communication Bluetooth
Discharge Parameters Charge Parameters
Continuous Discharge Current 100A Charge Method CC-CV
Pulse Discharge Current 150A(<10s) Charge Voltage 28.4~29.2V
Recommended Volt.Disconnect 20V Recommended Float Voltage 26.6~26.8V@100%
BMS Discharge Cut-off Voltage 20V Recommended Charge Current 50A
Reconnect Voltage 21.6V Maximum Charge Current 100A
Short Circuit Protection

300-800us

BMS Charge Cut-off voltage 29.6V
Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60 ℃
BMS High Temperature Cut-off 65℃

25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS Built-In For RV Boats Outdoor Camping Custom 3

Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
