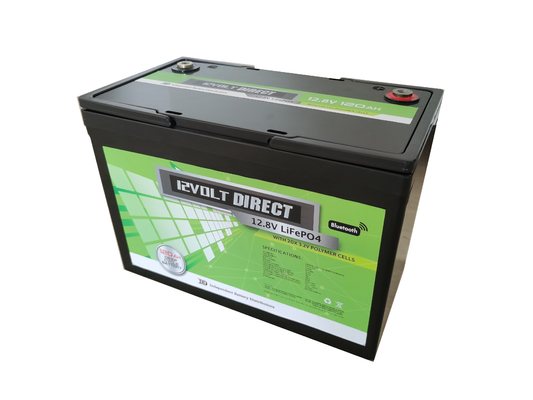

12 Volt Deep Cycle Solar RV Caravan Marine 12 Volt Lithium Ion Battery 12V 100ah LiFePO4 Battery

100Units
MOQ
Inquiry
Price
12 Volt Deep Cycle Solar RV Caravan Marine 12 Volt Lithium Ion Battery 12V 100ah LiFePO4 Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Voltage: 12.8V 120Ah
Nominal Capacity: 120Ah
Rated Energy: 1536Wh
Internal Resistance: ≤65mΩ
Dimensions: 446x198x208mm
Cyle Life: >4000 Cycles @80% DOD, 1C/1D 25℃
Material System: LiFePO4 Cell
Discharge Temperature: -20℃ To 60℃
Charge Temperature: 0 To 60℃
Warranty: 3 Years
Charge Method: CC-CV
Housing Protection: IP65
Recommended Charge Current: 50A
Maximum Charge Current: 100A
BMS Charge Cut-off Voltage: 15A
Highlight:

12 Volt Lithium Ion Battery

,

12V 100ah LiFePO4 Battery

Basic Infomation
Place of Origin: China
Brand Name: ECOLTO/OEM/ODM
Certification: UN38.3 MSDS CE
Model Number: LB12.8V120Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 1-2 months
Supply Ability: 2000Units per month
Product Description

Rechargeable Home Energy Storage Solar RV Marine 12.8V 100Ah 120Ah 200Ah LiFePO4 Lithium Ion Battery



FEATURES



1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life. 3000 Cycle Times 85% DOD 5000 Cycle Times 65% DOD 8000 Cycle Times 40% DOD
3. Bulit-in smart BMS with multiple protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.

7.Free Maintenance.Fast Charging.Environment Friendly.More stable. More safety.



Application:

Home Appliances,RV,Camper. Off road vehicle, Consumer Electronics, Boats, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Solar Energy Storage Systems



Lithium off grid batteries: this battery pack is a great rechargeable lithium battery, which can be used for solar panels, solar panels, and other batteries.







Cell Performance Charateristics

12 Volt Deep Cycle Solar RV Caravan Marine 12 Volt Lithium Ion Battery 12V 100ah LiFePO4 Battery 0



Specifications

Key Parameters Item 12.8V 120Ah
Voltage 12.8V
Nominal Capacity 120Ah
Rated Energy 1536Wh
Internal Resistance ≤65mΩ
Efficiency 0.99
Cycle Life >4000 cycles @80% DOD,
1C/1D 25℃
Self Discharge 2% per Month
Max. Modules in Series/Parallel 4S/2P
Dimension(L×W×H) 446x198x208mm
Weight 15.5kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
SOC Display(Optional) /
Continuous Discharge Current 100A
Pulse Discharge Current 160A (<3S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 8.8V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us
Charge Method CC-CV
Charge Voltage 14.4~14.8V
Recommended Float Voltage 13.8V
Recommended Charge Current 50A
Maximum Charge Current 100A
BMS Charge Cut-off Voltage 15V
Discharge Temperature -20 to 60 ℃
Charge Temperature 0 to 60℃
Storage Temperature -20 to 60 ℃
BMS High Temperature Cut-off 65 ℃





Product and Performance Data

12 Volt Deep Cycle Solar RV Caravan Marine 12 Volt Lithium Ion Battery 12V 100ah LiFePO4 Battery 1



Application

12 Volt Deep Cycle Solar RV Caravan Marine 12 Volt Lithium Ion Battery 12V 100ah LiFePO4 Battery 2

FAQ

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
