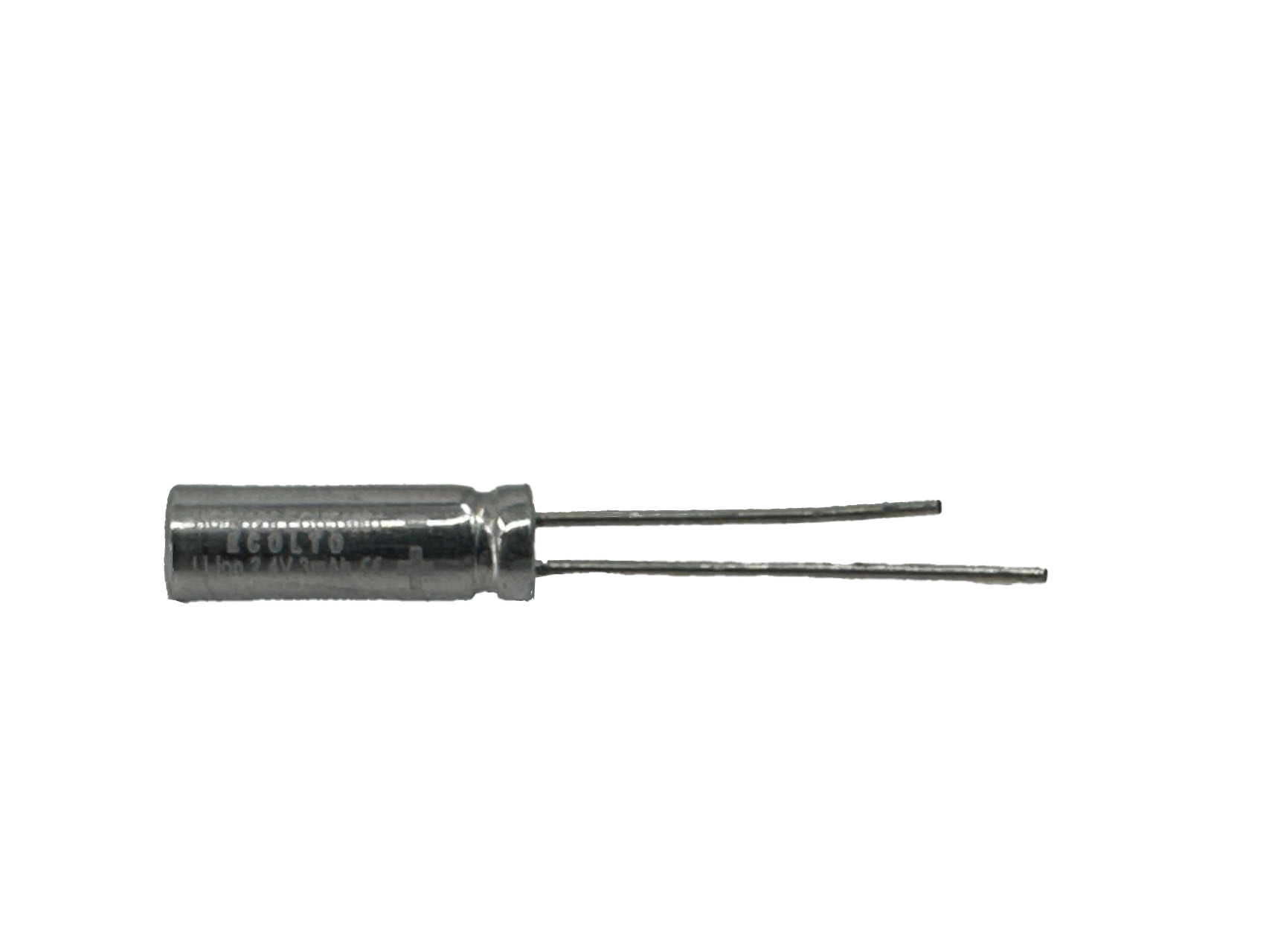

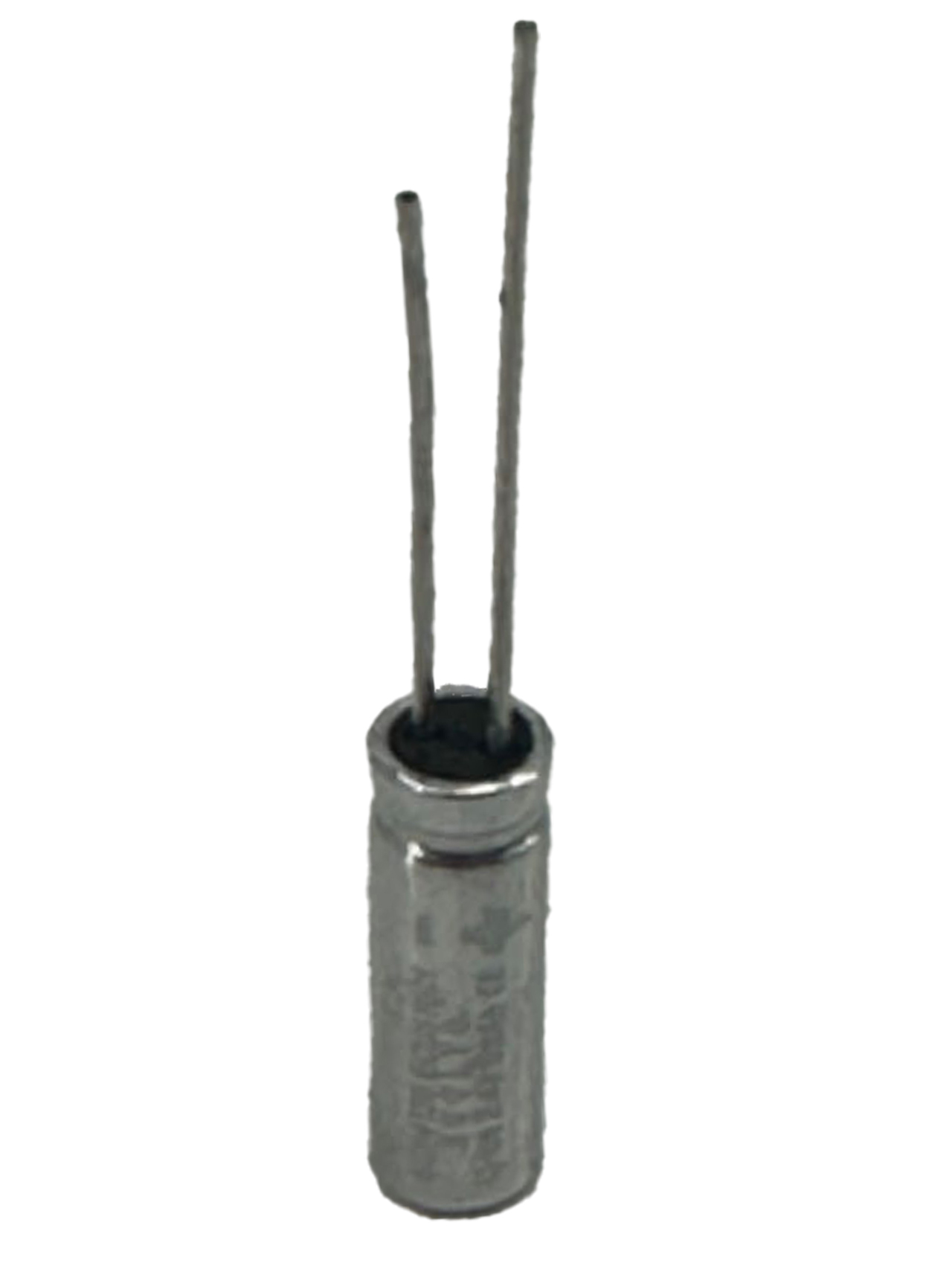

Super Mini-Shape Rechargeable Lithium Titanate Battery Cell LTO 2.4V3mAh

Super Mini-Shape Rechargeable Lithium Titanate Battery Cell LTO 2.4V3mAh

Lithium titanate battery cell is a kind of rechargeable battery which uses titanic acid as anode material. lt hasunbeatable advantages in rapid charge, long service life, higher safety and wider working temperature thanother lithium ion batteries.

Lithium titanate batteries are a modifed lithium-ion battery because they use extra lithium titanatenanocrystals on the anode surface rather than the carbon materials used in other lithium-ion batteries. Thisgives the anode a surface area of ca. 100 square meters per gram, but the carbon-based material only canachieve 3 square meters per gram, allowing electrons can be faster enter and leave the anode quickly. ltmakes lithium titanate battery can be faster recharge and support high working current when request.

Brightening up your prototypes with superior LTO Battery cell - Excellent Safety, Longer Battery Life, Fast Charge andWider Operating Temperature.

1.Scope

Only applicable to rechargeable lithium on capacitor batteries or battery packs produced by Hefei ECOLTO Energy Co. Ltd including lithium ion
battery cells and protection components.Uitra-small lithium Titanate Battery are used for super mini devices


2.Battery Constitution

3.Specification

4.Battery Drawing

4.1 Dimension(mm)

4.2 Marking

5. Visual Inspection

There shall be no such defects as scratch,flaw,crack and leakage,which may adversely affect commercial value of the battery.

5.1 Standard Testing Condition

Unless otherwise specified,all tests stated in this product specification are conducted at below condition:
Temperature:25±3℃
Humidity:45℃-85%RH


5.2 Electric Performance

5.3 Electric Performance

6. Storage and others

6.1 Long Time Storage

If stored for a long time(exceed three months),the cell should be stored in drying and cooling place.The cell's storage voltage should be 2.4~2.45V

6.2 Period of Warranty

The period of warranty is one year from the date of shipment.Hefei ECOLTO Energy Co.,Ltd Guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

6.3 Storage
The cell shall be storied within -20℃~ 55 C range environmental condition.If the cell has to be storied for a long time (0ver 3 months,the environmental condition should be: Temperature: 23+5c Humidity: 65+20% RHThe voltage for a long time storage shall be 2.4V~2.45V range.

6.3 Others

Any matters not mentioned in this manual must be determined through negotiation between both parties.


7.Danger

Caution and Guideline

·Before using battery, please read specification and safety caution, insure proper application and safety.

Caution

·Failing in following items can cause leakage, heat even fire.
·Prohibition of reverse charge of battery
·Prohibition of overcharge of battery
·Prohibition of over discharge of battery
·Prohibition of short circuit of positive and negative of battery.
·Please charge by specified charger
·Don't knock, beat, nail or disassemble battery.
·Please keep away from fire or other heating sources and prohibition of dumping of battery into fire.
