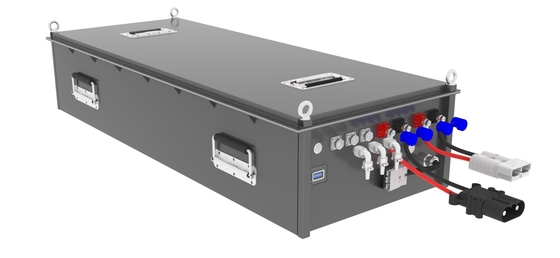

ECOLITE 24S 1P LFP 76.8V 314Ah LiFePO4 Lithium Battery For Robot Device

Name: ECOLITE 24S 1P LFP 76.8V 314Ah LiFePO4 Lithium Battery For Robot Device
Brand: HEFEI ECOLITE ENERGY CO., LTD.
SKU: LFP76.8V314Ah
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Ecolite/OEM/ODM

Model Number: LFP76.8V314Ah

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Inquiry

Packaging Details: Carton Pallet Container

Delivery Time: 1-2 months

Payment Terms: L/C, T/T

Supply Ability: 10000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              LiFePO4 lithium battery for robot, 76.8V 314Ah lithium battery, ECOLITE 24S LFP battery


Nominal Voltage:	76.8V	Rated Capacity:	314Ah
Nominal Energy:	24115Wh	Dimension（L×W×H）:	1200×500×250mm
Cell Type:	LiFePo4 Lithium Battery	Weight:	187kg
Charging Communication:	CAN	Parallel Communication:	RS485

Nominal Voltage:	76.8V
Rated Capacity:	314Ah
Nominal Energy:	24115Wh
Dimension（L×W×H）:	1200×500×250mm
Cell Type:	LiFePo4 Lithium Battery
Weight:	187kg
Charging Communication:	CAN
Parallel Communication:	RS485

Description

ECOLITE 24S 1P LFP 76.8V 314Ah LiFePO4 Lithium Battery For Robot Device

ECOLITE 24S 1P LFP 76.8V 314Ah LiFePO4 Lithium Battery For Robot Device

Introducing our high-performance LiFePO4 Lithium Battery, specifically engineered for advanced robotic applications. This battery solution, with a capacity of 314Ah, is designed to deliver reliable and efficient power to meet the demanding needs of modern robots.

Boasting a compact design, the battery measures 1180mm x 470mm x 250mm (excluding charge and discharge connectors), making it suitable for integration into various robotic systems without taking up excessive space. Built with LiFePO4 (LFP) chemistry, it ensures excellent stability and long cycle life, a key advantage of LiFePO4 Lithium Battery technology.

Features
Lithium Iron Phosphate(LiFePo4).The Safest Lithium Technology.
Integrated Battery Management System(BMS).

Performance

High Density,High Discharge Current,High Temperature Range.
Low Weight,Mainteance Free.Fast Charging.
Environmentally Friendly.

Specification

Models	76.8V 314Ah
Configuration	24S1P
Cell Type	Lithium iron phosphate
Maximum Charge Current	100A
Maximum Discharge Current	200A
External communication	1.The baud rate is 250K:CAN 2.Baud rate is not 250K:RS485
Charging communication	CAN
Parallel communication	RS485
External Communication Connector	Socket:WF16K5Z Plug:WF16J5TV
Parallel connection situation	Support Parallel connection
Protection Class	IP65
Total Weight	187kg
Dimension(L×W×H)	1180×470×250mm(not include the charge and discharge connectors)
Operating temperature	Discharging:-20℃~60℃ Charging:0~60℃

Two types of battery chargers:slow charging and fast charging
1.Slow charging

Single-phase input voltage:

Max:2950W@220Vac;Max:1500W@120Vac

Frequency:45-65Hz

2.Fast charging
Max:10KW
Three-phase input voltage:AC323V~AC456V
Frequency:55±10Hz
Charging current:0~100A
