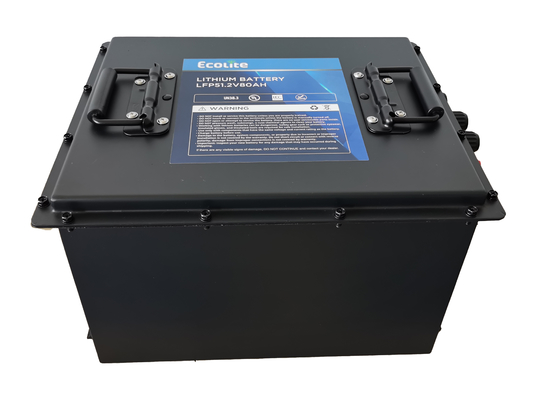

LFP48-80 51.2V 80Ah LiFePO4 Lithium Battery Pack For Golf Cart Integrated Smart BMS

1000pcs
MOQ
Inquiry
Price
LFP48-80 51.2V 80Ah LiFePO4 Lithium Battery Pack For Golf Cart Integrated Smart BMS
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Voltage: 51.2V
Rated Capacity: 80Ah
Energy: 4096Wh
Resistance: ≤35mΩ
Efficiency: ≥0.98
Cycle Life(25℃,0.5C/0.5C,100%DOD): >2000cycles Remaining Capacity>80%
Self Discharge: <5% Per Month
Dimension(L×W×H): 390mm×323mm×240mm
Cell Type-Chemistry: LiFePO4 Cell
Discharge Temperature: -20℃ To 60℃
Charge Temperature: 0℃ To 55℃
Basic Infomation
Place of Origin: China
Brand Name: Ecolite
Certification: UN38.3 MSDS CE
Model Number: 12.8V 15.4Ah
Payment & Shipping Terms
Packaging Details: Carton Pallet Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 units/month
Product Description

LFP48-80 51.2V 80Ah LiFePO4 Lithium Battery Pack For Golf Cart Integrated Smart BMS


Electrical Parameters
Nominal Voltage 51.2V
Rated Capacity 80Ah
Energy 4096Wh
Resistance ≤35mΩ
Efficiency ≥0.98
Cycle Life(25℃,0.5C/0.5C,100%DOD) >2000cycles Remaining capacity>80%
Self Discharge <5% per Month

Cell in Series/Parallel


16S/1P




Mechanical Parameters
Dimension(L×W×H) 390mm×323mm×240mm
15.35''×12.72''×9.45''
Weight 50kg
Terminal Type M8
Battery Housing SPCC
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell

​Communication

RS485/CAN




Discharge Parameters
Continuous Discharge Current 80A
Pulse Discharge Current 180A(<1S)
Recommended Volt.Disconnect 40V
BMS Discharge Cut-off Voltage 40V
Reconnect Voltage 43.2V
Short Circuit Protection 300-800us



Charge Parameters
Charge Method CC-CV
Charge Voltage 56.8V~58.4V
Recommended Float Voltage 53.2V~53.6V@100%
Recommended Charge Current 40A
Maximum Charge Current 80A
BMS Charge Cut-off Voltage 58.4V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 35℃
BMS High Temperature Cut-off 65℃


Elevate your golf cart’s performance with the EcoLite LFP48-80, a premium LiFePO4 Lithium Battery engineered specifically for the demands of golf course operations. As a advanced LiFePO4 Lithium Battery, it combines cutting-edge technology with industrial reliability, making it the ultimate power solution for golf carts.
Crafted with LiFePO4 chemistry, this LiFePO4 Lithium Battery stands out as the safest lithium technology available, ensuring peace of mind during extended use on the course . At its core is an integrated Battery Management System (BMS), a critical feature of this LiFePO4 Lithium Battery, which optimizes energy flow, protects against overcharging, over-discharging, and short circuits (with a rapid 300-800µs response), and guarantees consistent performance round after round.

Why This LiFePO4 Lithium Battery is Perfect for Golf Carts:
Long-Lasting Durability: This LiFePO4 Lithium Battery boasts a cycle life of over 2000 cycles with remaining capacity >80% (tested at 25℃, 0.5C/0.5C, 100% DOD), minimizing replacement needs and reducing long-term costs for your fleet.
Powerful & Responsive: With 80A continuous discharge and 180A pulse discharge (<1S), this LiFePO4 Lithium Battery delivers the instant power golf carts need for smooth acceleration, climbing gentle slopes, and navigating varying terrain.
All-Weather Reliability: This LiFePO4 Lithium Battery operates seamlessly in discharge temperatures from -20℃ to 60℃ and charge temperatures from 0℃ to 55℃, adapting to hot summer days or cool mornings on the course.
Efficient Charging & Low Maintenance: The LiFePO4 Lithium Battery supports fast charging via CC-CV method (max charge current 80A), getting carts back in action quickly. Its maintenance-free design and low self-discharge (<5% per month) cut down on downtime.
Robust Design: Housed in durable SPCC with IP65 protection, this LiFePO4 Lithium Battery resists dust and water, standing up to outdoor conditions. At 50kg with compact dimensions (390mmx323mmx240mm), it fits seamlessly into most golf cart models.

Key Specifications of This LiFePO4 Lithium Battery:
Nominal Voltage: 51.2V | Rated Capacity: 80Ah | Energy: 4096Wh
Charge Voltage: 56.8V~58.4V | Recommended Charge Current: 40A
Certifications: UN38.3, IEC, RoHS compliant, ensuring safety and environmental standards

For golf courses seeking a reliable, high-performance LiFePO4 Lithium Battery, the EcoLite LFP48-80 is the definitive choice. Power your fleet with the safest, most durable LiFePO4 Lithium Battery on the market.

LFP48-80 51.2V 80Ah LiFePO4 Lithium Battery Pack For Golf Cart Integrated Smart BMS 0



LFP48-80 51.2V 80Ah LiFePO4 Lithium Battery Pack For Golf Cart Integrated Smart BMS 1



We have our own production workshop. We develop and produce everything from battery cells to Pack assembly. We have been in this industry for more than ten years. We serve every customer with a reliable, trustworthy and pragmatic attitude

LFP48-80 51.2V 80Ah LiFePO4 Lithium Battery Pack For Golf Cart Integrated Smart BMS 2

Q: where will this battery be used for ?
A: it suit for electric bicycle, scooter, motor cycle as starter power.

Q: what is the warranty
A: 1year

Q: what is the lead time ?
A: Depends on your quantity

Q: what is your payment term ?
A: T/T(30% deposit, balance before shipment. ) and L/C

Q: Can test sample before bulk order ?
A: Yes we provide sample for testing as you request

Q: accept OEM order ?
A: 100% customized solution for you .
