Ecolite EST5000 5120Wh LiFePO4 Power Station 5000W Pure Sine Wave 10000W Peak

Ecolite EST5000 5120Wh LiFePO4 Power Station 5000W Pure Sine Wave 10000W Peak

Product Overview

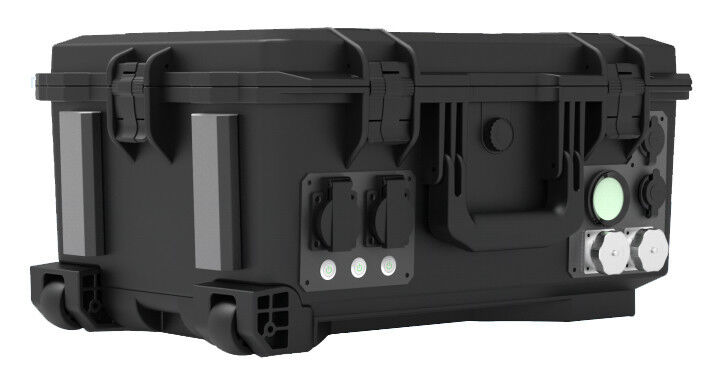

The Ecolite EST5000 is a high capacity portable power station built with LiFePO4 battery cells. It stores 5120 watt hours of energy at 51.2V nominal voltage with 100Ah rated capacity. Weighing 57 kilograms and measuring 575 by 421 by 387 millimeters, this unit provides reliable silent power for home backup, outdoor living, job sites, travel, and disaster relief. No fuel, no exhaust, and no maintenance required. The high strength shell resists collisions and scratches with IP54 protection against dust and water splashes.

AC Output Power
The pure sine wave inverter delivers 5000 watts continuous output at 230V 50Hz or 60Hz. Peak power reaches 10000 watts for starting motor driven appliances such as refrigerators, air conditioners, pumps, and power tools. The inverter produces clean power suitable for sensitive electronics like computers and televisions.

DC and USB Outputs
Multiple output ports accommodate a wide range of devices. USB A ports provide 5V at 3A, 9V at 2A, or 12V at 1.5A with maximum 18 watts per port. USB C ports deliver 5V at 3A, 9V at 3A, 12V at 3A, or 20V at 3A with maximum 60 watts for fast charging laptops, tablets, and smartphones.

Charging Methods
The EST5000 accepts three charging sources. AC charging via standard 230V mains uses 1168 watts with input of 58.4V at 20A. DC fast charging accepts 58.4V at up to 50A for a maximum of 2920 watts, significantly reducing recharge time. Solar charging supports DC input from 35V to 150V at up to 40A with maximum 1040 watts, allowing renewable energy harvesting from solar panels.

Battery Technology
The internal battery uses lithium iron phosphate chemistry known for safety and long life. Cycle life exceeds 3500 cycles while retaining 80 percent of original capacity. The battery management system provides protection against high voltage, low voltage, high temperature, low temperature, overcurrent, and short circuit.

Temperature Range
Optimum operating temperature is 20°C to 30°C for best performance. Charging is allowed from 0°C to 45°C. Discharging works from -20°C to 45°C, making the unit usable in cold conditions. Storage temperature range is -20°C to 45°C.

Applications
Use the EST5000 as home backup power during grid outages to keep lights, phones, computers, refrigerators, televisions, and medical devices running. Take it camping or RVing for off grid electricity without generator noise. It powers tools and equipment on remote job sites without fuel hauling. Emergency responders rely on it for disaster relief power. The unit breaks free from grid constraints and provides electricity anywhere.

Included Protection Features
The high strength shell protects internal components from impacts and scratches. IP54 rating means dust cannot enter and water splashes from any direction cause no harm. The integrated BMS constantly monitors battery health and shuts down automatically before damage occurs.

What You Can Power
With 5000W continuous output, the EST5000 can run a full size refrigerator (150W to 800W), television (100W to 400W), laptop (50W to 100W), lights (10W to 100W), phone chargers, and a fan simultaneously. For higher loads like power tools, air conditioners, or water pumps, check their running and starting wattage.
